AquaForte SmartSieve
AquaForte SmartSieve

AquaForte SmartSieve

A new breakthrough in technology and price level! The SmartSieve is a gravity fed sieve filter fully made of Polyethylene. Comes with 300 micron Stainless Steel sieve element. Pump capacity ± 25m³/h. Inlet: 2 x 110mm. Waste outlet: 63mm. Pomp outlet 90/63mm (provided with 63mm suction pipe). Heavy duty cover included! Colour: granite blue.

Features:

  • 2 x 110mm Inlet
  • 63mm Waste Outlet
  • 2″ Pump Connection
  • Heavy Duty Cover Lid included.
  • Granite Blue Colour

With the two x 110mm (4″) Connections the sieve can accomodate two bottoms drains or a bottom drain and a skimmer connection.

The 300 micron screen will remove solids greater than 300 microns immediately from the pond water which is easily removed via the waste outlet.

By removing the solids immediately from the pond water better water quality and clarity is achieved as these solids are not degrading and adding polutants to the water.

not rated £654.99 inc. VAT Add to basket
EA-CETUS-INTERNAL-VIEW
Cetus Sieve

Cetus sieve

The Cetus sieve is a bow screen pre-filter, made using the latest rotational moulding technology. With all of its benefits and build quality, it is undoubtedly the best of its kind on the market today, regarding quality and performance! It is designed to efficiently and effectively remove large amounts of mechanical waste from a pond. It can be set-up gravity or pump fed and has many benefits over the original bow screen technology.

Overview:

The Cetus Sieve is a self-adjusting sieve which can be installed either gravity fed or pump fed. The Cetus Sieve enables your pond water to be filtered of large amounts of waste and debris before the water enters your current filter system. This process is commonly referred to as “pre-filtering”. The Cetus Sieve can also be used as a stand-alone unit to remove leaves and other floating debris from your pond via a surface skimmer. The Cetus Sieve will efficiently and effectively remove large amounts of mechanical waste from your pond. The Cetus Sieve is compatible with all filtration systems, however it is the perfect prefilter for the Evolution Aqua Nexus filter range. For gravity fed systems the Cetus Sieve has a weir which will automatically adjust to the flow rate of your pump. (Max flow rate 18,000 litres/hr) When the Cetus Sieve is used in front of any other biological/mechanical filter the period in between cleaning will be extended. The biological process is improved by the removal of organic matter which would consume oxygen and leach ammonia and other compounds into the water.

How it works:

Installing the Cetus Sieve The Cetus Sieve has a variable inlet height using the unique patented Pond flow regulation system – for use when gravity fed. This allows water levels within the pond to drop without causing the circulating pump to be starved of water. The Cetus will allow a skimmer or a bottom drain to accept vast amounts of waste without excessive cleaning needed to be carried out. The water must then be pumped to either a normal filter above pond level (Nexus Eazy/Eazy Pod) or to a pressurised filter.

If pump fed, the sieve is placed above pond water level and then the exit water is gravity dropped into your main filter.

The Cetus sieve is a bow screen pre-filter, suitable for pre-filtration of any biological filter including all pressured filters. It is advised that all pressurised filters be pre-filtered using a Cetus to reduce excessive backwashing and maintenance due to heavy solids.

ModelMax. flow rateInlet – Gravity FedInlet – Pump FedOutlet – Gravity FedOutlet – Pump Fed
Cetus18,000 Litres/hr
4,000 UK Gallons/hr
4,755 US Gallons/hr
110mm/4″50mm/1½”1½”3″
not rated £599.95 inc. VAT Add to basket

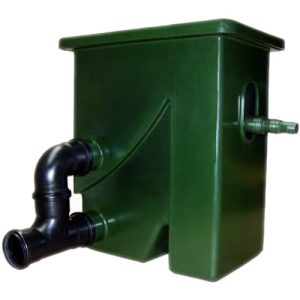

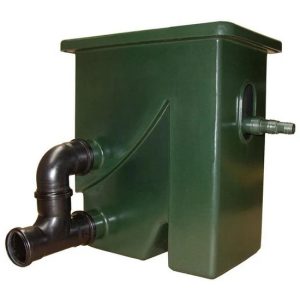

Compact Sieve (Pump fed) 2
Compact Sieve (Pump fed)

Compact Sieve 2

The CompactSieve is a very versatile mechanical filter that can be used in different applications:

As a particle remover directly next to the pond or to a waterfall/stream return to pond.

As a mechanical particle waste pre-filter before surface mounted biological stages.

As a mechanical pre-filter for existing trickle filter systems.

The CompactSieve can be connected to a pond vacuum cleaner and the returned water from the vacuum cleaner can be fed into the input hose tail via a T-piece or directly. For extra particle removal and saving your precious matured pond water!

The CompactSieve can be connected to an existing pumped pond skimmer system.

The unit must be mounted above pond water level.

Specifications

Max Flow: 4000 GPH

Max Pond Volume: 6000

Dimensions: 19.7″ x 13″ x 22″

Inlet/Outlet: 1.5″/3″

  • Compact sieve filter
  • Must always be positioned above the pond
  • Available in dark green and blue granite PE
  • Pump inlet: 25/32/40mm hose tail. Outlet: 75mm



https://youtu.be/s46yHbjCqGg





£249.99 inc. VAT Select options

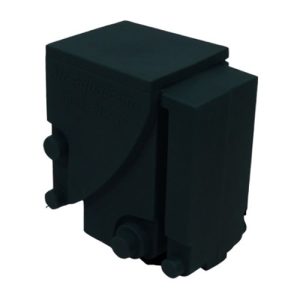

SuperSieve Pump (Pump Fed )
SuperSieve Pump (Pump Fed )

SuperSieve Pump

The SuperSieve pump makes it easy to separate larger particles of dirt (over 0.2 mm) out from the water. The SuperSieve pump is designed for ponds where the pump is in the pond. The dirty water is first pumped into the SuperSieve and is then discharged to a biological filter, for example. When the SuperSieve pump is used as a preliminary filter, the biological filter remains significantly cleaner, thus sparing you the unpleasant and time-consuming task of cleaning the biofilter.

not rated £379.50 inc. VAT Add to basket

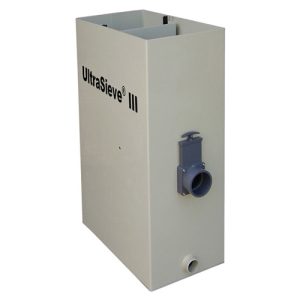

Ultrasieve 3
Ultrasieve 3

Ultrasieve 3

The Ultrasieve 3 is the most compact, gravity fed, sieve filter with the highest pump capacity on the koi market!

For years the Ultrasieve 3 has been the leading and most reliable pre-filter for professional koi ponds. The Ultrasieve 3 is supplied with an extra large waste outlet, including a slide valve 90/110mm!

A few years after the introduction of the successful UltraSieve II it has been superceded by the Ultrasieve 3. Most important features of the Ultrasieve III are the improved flow regulation and the new waste outlet which have fine tuned the overall performance. The total size of the Ultrasieve III is now more compact so it occupies less space.

How it works, Pond water will flow over the top of the auto-adjustable dam. This dam is connected to the float so its height is automatically adjusted. This system will ensure that the exact amount of water that is pumped out the filter will enter the filter on the inlet. Underneath the screen the unit now has stabilizers to prevent expansion when the unit, accidentally, totally fills with water. The Ultrasieve 3 comes with a pump connection of a 2″ male threaded adaptor. The waste outlet is fitted with a 90/110mm slide valve

 Features:

  • Twin inlets (110mm)
  • Multiple inlets possible
  • Strong polypropylene house
  • Max. flow of 20.000 litres/hour!
  • Extra large waste outlet, incl. slide valve 90/110mm!
  • Very compact size (L x W x H)65 x 37 x 99 cm
  • 300 micron
  • Optional lid available
  • Pump outlet 2” male threaded, incl. 63mm/2” solvent fitting
not rated £999.99 inc. VAT Add to basket
Ultrasieve 3 Lid
Ultrasieve 3 Lid

Ultrasieve 3 Lid

The Ultrasieve 3 is the most compact, gravity fed, sieve filter with the highest pump capacity on the koi market!

For years the Ultrasieve 3 has been the leading and most reliable pre-filter for professional koi ponds. The Ultrasieve 3 is supplied with an extra large waste outlet, including a slide valve 90/110mm!

A few years after the introduction of the successful UltraSieve II it has been superceded by the Ultrasieve 3. Most important features of the Ultrasieve III are the improved flow regulation and the new waste outlet which have fine tuned the overall performance. The total sizeof the Ultrasieve III is now more compact so it occupies less space.

How it works, Pond water will flow over the top of the auto-adjustable dam. This dam is connected to the float so its height is automatically adjusted. This system will ensure that the exact amount of water that is pumped out the filter will enter the filter on the inlet. Underneath the screen the unit now has stabilizers to prevent expansion when the unit, accidentally, totally fills with water. The Ultrasieve 3 comes with a pump connection of a 2″ male threaded adaptor. The waste outlet is fitted with a 90/110mm slide valve

 features:

  • Twin inlets (110mm)
  • Multiple inlets possible
  • Strong polypropylene house
  • Max. flow of 20.000 litres/hour!
  • Extra large waste outlet, incl. slide valve 90/110mm!
  • Very compact size (L x W x H)65 x 37 x 99 cm
  • 300 micron
  • Optional lid available
  • Pump outlet 2” male threaded, incl. 63mm/2” solvent fitting

This product is the Ultrasieve 3 Lid only and not the complete unit!

not rated £54.99 inc. VAT Add to basket

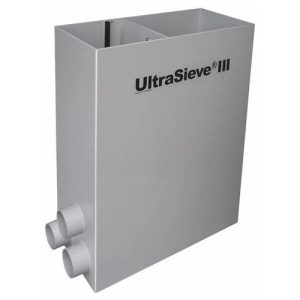

Ultrasieve 3 Three Inlets
Ultrasieve 3 Three Inlets

Ultrasieve 3 Three Inlets

The most compact, gravity fed, sieve filter with the highest pump capacity! For years this has been the leading and most reliable pre-filter for professional koi ponds.

Now supplied with 3 inlet 110mm Inlet Connections
Now supplied with an extra large waste outlet, including a slide valve 90/110 !

Three inlets (110mm)
Multiple inlets possible
Patented flow regulation
Strong polypropylene housing
Improved edges around sieve
Max. flow of (6000gph)
Extra large waste outlet, incl. slide valve 90 / 110mm!
Very compact size (L x W x H) 65 x 37 x 99 cm
Screen 200 or 300 micron
Optional lid available
Pump outlet 2″ male threaded, incl. 63mm solvent fitting
Extra large waste outlet, including a slide valve 90/110 !

not rated £1,068.99 inc. VAT Add to basket
