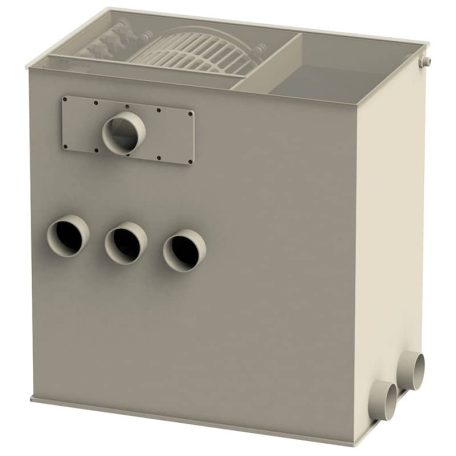

AquaForte Prime Combi-Drum Filter

£4,299.99 inc. VAT

AquaForte Prime Combi-Drum Filter

The AquaForte Prime Combi-Drum Filter is the perfect combination for mechanical & biological filtration in one housing: Drum filter with moving bed. Very compact size for a total filter system, fits on 1 pallet. The Drum filter part is identical to the AquaForte Prime Drum filter XL. The moving bed module has a volume of over 200 litres and is therefore suitable for at least 100 litres of media such as the Oase Hel X or the Evolution Aqua K Range Because of the slots in the passage, the bio chamber is not suitable for Eco Pond chips. Bio media is not included. Moving bed is equipped with large membrane aerator and piping for air pump connection. Max. flow ±30m³/h.

SKU: FS600 Category:

Description

AquaForte Prime Combi-Drum Filter

The AquaForte Prime Combi-Drum Filter is the perfect combination for mechanical & biological filtration in one housing: Drum filter with moving bed. Very compact size for a total filter system, fits on 1 pallet. The Drum filter part is identical to the AquaForte Prime Drum filter XL. The moving bed module has a volume of over 200 litres and is therefore suitable for at least 100 litres of media such as the Oase Hel X or the Evolution Aqua K Range Because of the slots in the passage, the bio chamber is not suitable for Eco Pond chips. Bio media is not included. Moving bed is equipped with large membrane aerator and piping for air pump connection. Max. flow ±30m³/h.

Drum filters are fully automatic pre-filters. The water enters the drum filter at the inlet chamber and then flow into a drum-shaped sieve. The AquaForte drum filter is fitted with a 60-micron stainless steel screen, so waste particles that are 0.06mm in size or larger can’t go through the screen. These waste particles will deposit on the inner side of the drum, which will decrease the output flow of clean water through the drum. This will cause a change in water level inside and outside the drum.

The level switch will detect this change in water level and send a signal to the controller to activate the cleaning process. The device itself decides when the spray nozzles clean the screen depending on how dirty the screen is. The dirt is then rinsed into the drain. You decide whether the spray nozzles use tap water (min. pressure 2 bar, max. 4 bar) or clean pond water to rinse the screen. The filtered water flows through the sieve and is then taken to the main filter.

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight 40 kg
Dimensions 100 × 100 × 100 cm
