Description

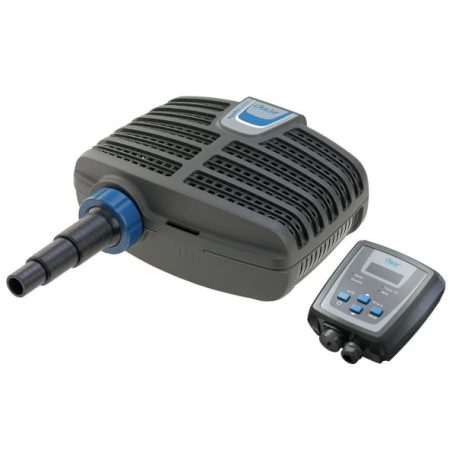

AquaMax Eco Classic 9000 C
The controllable entry-level series of filter and watercourse pumps from OASE with an integrated controller for convenient, external control. With the new special OASE app, the contemporary classic can also be controlled smartly. The reliable all-rounder powerfully pumps pond water and coarse dirt particles up to 8 mm in size into a filter or feeds a stream – and works extremely economically: Powerful delivery rate of 9,000 l / h with a power consumption of only 23-90 W. Thanks to the energy-efficient motor, the AquaMax Eco Classic saves money 9,000 ° C continuously electricity – and thus real money. Also suitable for use on swimming and bathing ponds if it is placed in an external pump chamber. The scope of delivery includes a special hose nozzle with union nut for different hose sizes (25/32/38 mm). “Environmental Function Control” (EFC by OASE) protects the pump from running dry or blocking. Up to 5 years guarantee – 3 plus 2 years requirement guarantee
Product characteristics
- The contemporary classic featuring state-of-the-art technology — the controllable entry-level series of filter and watercourse pumps from OASE
- Three energy-efficient sizes with integrated controller for convenient external control
- Smart controllable with the new OASE app
- Easy installation and maintenance thanks to a secure plug connection to the controller
- Uncompromisingly reliable, with a great cleaning power; it pumps pond water and coarse debris particles, up to 8 mm in size, into the filter
- Extremely economical: Thanks to its energy-efficient motor, the AquaMax Eco Classic constantly saves electricity—and therefore money—while in operation
- Suitable for use on swim ponds and bathing ponds (used in an exterior pump chamber)
- Included in the scope of delivery: Special hose adapter with threaded collar for different hose sizes (25/32/38 mm)
- Environmental Function Control (EFC by OASE) protects against dry running and blocking
Technical data
| Dimensions (L x W x H) | mm | 280 x 230 x 140 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 23 – 90 |
| Cable length | m | 2.00 + 10.00 |
| Net weight | kg | 6.00 |
| Guarantee | Years | 3 + 2 |
| Max. flow rate | l/min | 146 |
| Max. flow rate | l/h | 8800 |
| Max. head height, metres | m | 4.50 |
| Pressure-side connection | mm | 38 |
| Pressure-side connection | 1 ½” | |
| Suction-side connection | mm | 38 |
| Suction-side connection | 1 ½” | |
| Hose connection | mm | 25 / 32 / 38 |
| Hose connection | 1″, 1 ¼”, 1 ½” | |
| Filter intake surface | cm² | 810 |
| Max. coarse debris displacement | mm | 8 |
| Electronic adjustment | Yes | |
| Setup type | Can be set up underwater & dry installed |
