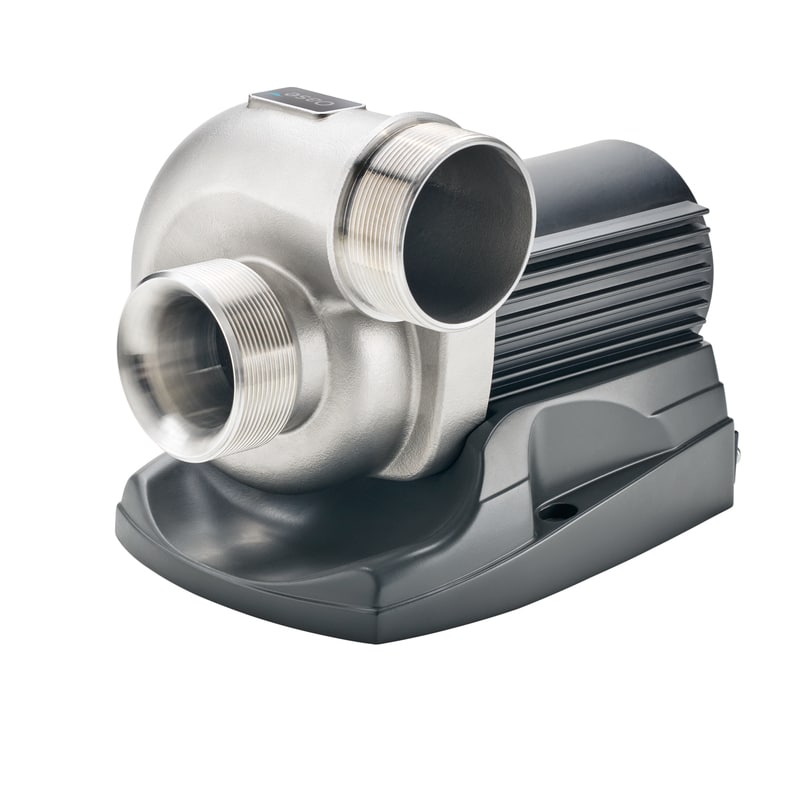

AquaMax Eco Titanium 51000
Energy-efficient gravity filter pump for large bodies of water, even with koi – perfect for gravity filter systems. Thanks to the flow-optimised hydraulics, this powerhouse achieves outstanding efficiency (51,000 l/h flow rate with a power consumption of just 320 W max.). With robust cast stainless steel pump housing and large base for secure positioning. The high-quality SIC ceramic rotor shaft and bearings stand for reliability and durability. The AquaMax Eco Titanium 51000 can be submerged and installed dry – also ideal in a pump chamber. It pumps coarse dirt up to 6 mm grain size and is reliably protected against dry running and blockage thanks to “Environmental Flow Control” (EFC by OASE). The patented “Seasonal Flow Control” (SFC) as an intelligent and environmentally conscious regulation of the water volume and delivery head enables additional energy savings of up to 30 % with the help of optional accessories and with the SFC function switched on – precise and reliable engineering “Made in Germany” at a particularly high level. Up to 5 years guarantee – 3 plus 2 years requirement guarantee.
Features:
- Innovative, energy-efficient gravity filter pump for large bodies of water, even with koi stock
- Flow-optimised hydraulics help to achieve an outstanding level of efficiency
- Robust pump housing made of cast stainless steel with large base for safe placement
- Rotor shaft and bearings made from high-quality SIC ceramics for optimal reliability and longevity
- Ideal for installation in a pump chamber
- Can be set up underwater & dry installed
- Protection against running dry and blocking through Environmental Function Control (EFC by OASE)
- Patented Seasonal Flow Control (SFC) for intelligent and environmentally conscious regulation of flow rate and pump head height
- Using optional accessories, when the SFC function is enabled, an extra 30% can be saved in energy
- MADE IN GERMANY: precise and reliable German engineering skills at a particularly high quality level
- System requirements: To use the EGC functions, an InScenio EGC Controller Home/Cloud, InScenio FM-Master EGC Home/Cloud, InScenio FM-Master WiFi EGC or InScenio FM-Master WiFi Version 2.0 or later is required
- Handles coarse debris particles up to 6 mm in size
Robust pump housing
Cast stainless steel enables achievement of sustainable precision and energy-efficiency. The entire pump housing can be adjusted 90° upward.
Special channel-type impeller
The impeller has a long service life. Even under continuous load, signs of wear cannot be detected.
Connection for EGC
Innovative and convenient, the pump can be regulated and operated through control devices such as the Eco Control (included in the scope of delivery).
Technical Data:
| Dimensions (L x W x H) | mm | 350 x 220 x 245 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 70 – 320 |
| Power cable length | m | 10.00 |
| Net weight | kg | 16.50 |
| Guarantee (+ request guarantee) | Years | 3 + 2 |
| Max. flow rate | l/min | 850 |
| Max. flow rate | l/h | 51000 |
| Max. head height | m | 4.00 |
| Connection pressure-side | mm | 88 |
| Connection pressure-side | 3″ | |
| Connection suctions-side | mm | 88 |
| Connection suctions-side | 3″ | |
| Coarse debris displacement max. | mm | 6 |
| Connection EGC | Yes | |
| Electronically adjustable | Yes | |
| Setup type | Can be setup underwater & dry |
