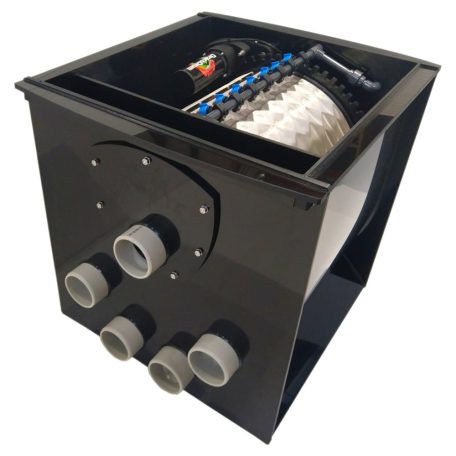

Draco drum solum 70

£2,879.00 inc. VAT

Draco drum solum 70

  • Dimensions – 738mm wide x 677mm long x 848mm depth
  • Height above water level – 153mm
  • Capacity – 15,400 Imp. Gallons per hour / 70,000 litres per hour (in gravity mode, pump fed less 25%)
  • Pond Volume – Approx 16,000 UK gallons
  • 4 X 4” inlets and 3 x 4″ outlets with an extra 2″ out for direct pump (other layouts can be specified)
  • Drum mounted bypass plate
  • Heavy duty 70 µm screen
  • The remotely sited controller has start / emergency stop buttons and a knob allowing you to change the length of wash. LED indicator shows the length of time between washes in minutes. It also has 2 leads – one to plug in to the mains supply (110v and 230v, auto selectable) and one to plug in to the drum. Status of the unit is via 4 colour coded LEDs. We didn’t think we could make it any simpler than that.
  • Low voltage, sealed water valves and drive units utilising an extremely low geared direct drive system mean that only 12 volts is anywhere near your pond water.
  • Designed to run without a noisy and power hungry wash pump in most circumstances (they are available if required) . On standby the unit can use less than 12 watts and in full wash mode, use 35 watts.
Clear selection
SKU: solum70 Category:

Description

Draco drum solum 70

  • Dimensions – 738mm wide x 677mm long x 848mm depth
  • Height above water level – 153mm
  • Capacity – 15,400 Imp. Gallons per hour / 70,000 litres per hour (in gravity mode, pump fed less 25%)
  • Pond Volume – Approx 16,000 UK gallons
  • 4 X 4” inlets and 3 x 4″ outlets with an extra 2″ out for direct pump (other layouts can be specified)
  • Drum mounted bypass plate
  • Heavy duty 70 µm screen
  • The remotely sited controller has start / emergency stop buttons and a knob allowing you to change the length of wash. LED indicator shows the length of time between washes in minutes. It also has 2 leads – one to plug in to the mains supply (110v and 230v, auto selectable) and one to plug in to the drum. Status of the unit is via 4 colour coded LEDs. We didn’t think we could make it any simpler than that.
  • Low voltage, sealed water valves and drive units utilising an extremely low geared direct drive system mean that only 12 volts is anywhere near your pond water.
  • Designed to run without a noisy and power hungry wash pump in most circumstances (they are available if required) . On standby the unit can use less than 12 watts and in full wash mode, use 35 watts.

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Manual





Solum 16 & 25 User Guide and Installation Manual.pdf







Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight N/A
Dimensions N/A
Model

Gravity Fed, Pump Fed
