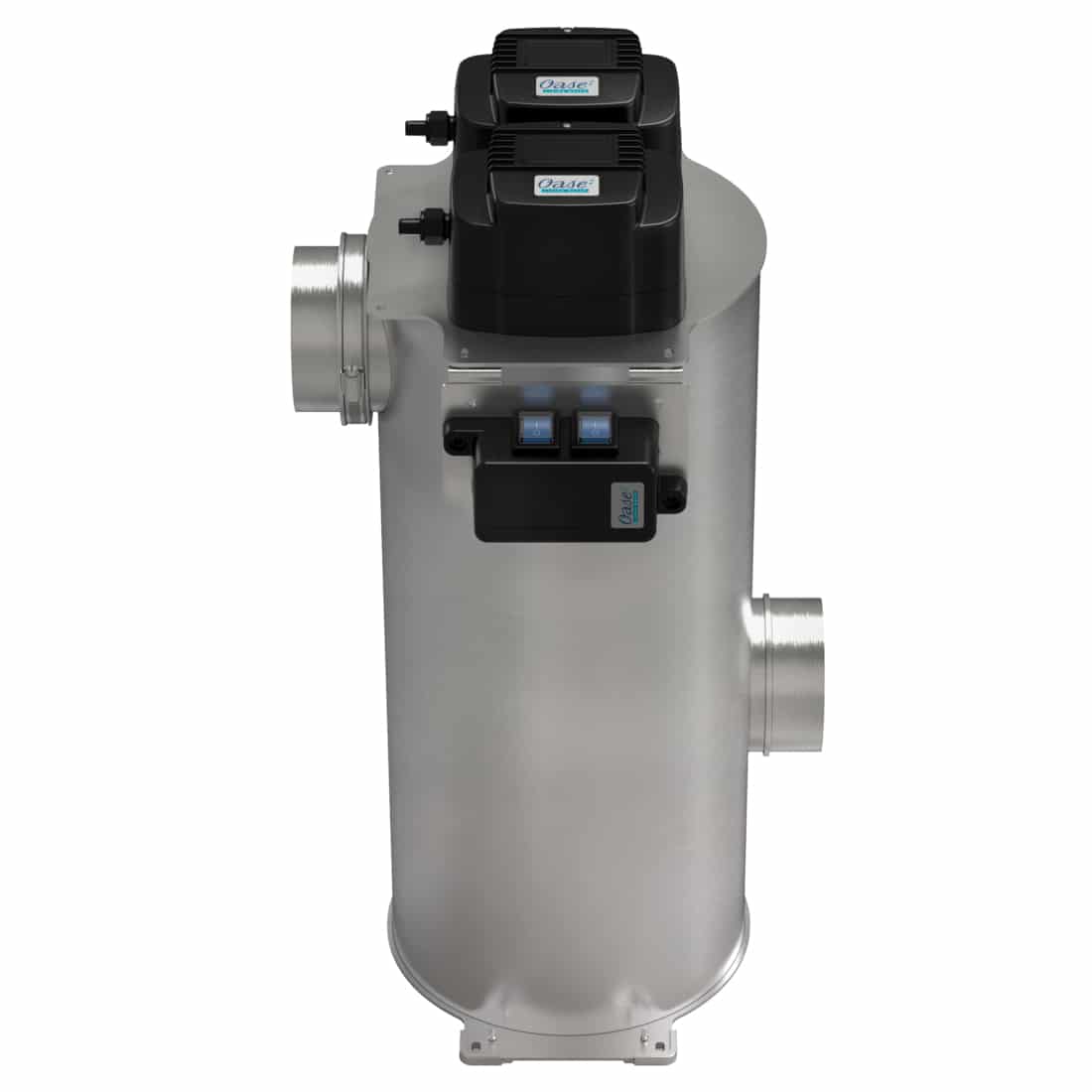

Oase Bitron Premium 120 W UVC
The Oase Bitron Premium 120 W UVC is a highly efficient UVC pre-treatment device in the Bitron Premium range are suitable for ponds up to 185 m³ and provide extremely powerful removal of algae and pathogenic bacteria – with the same mode of action as an immersion UVC. It offers 100 % safety against eye damage, is particularly energy-efficient thanks to an electronic ballast and is exceptionally effective in sterilisation thanks to the long retention time of the water in the Bitron. The flow-optimised reactor design ensures direct and virtually loss-free UV irradiation.
Features:
- Powerful, efficient UVC clarifier
- Extremely effective sterilisation thanks to well thought-out flow optimisation
- Extremely easy and flexible installation before or after the filter system
Characteristics:
- High intensity treatment of suspended algae, turbidity and harmful bacteria in the pond water
- Innovative UVC bulb technology with 50% longer service life (12,000 h) – developed in cooperation with Philips
- High volume UVC housing with a new design and organic shape for a particularly long water Retention time
- Eco control system enables maximum energy efficiency with savings potential of up to 50 %*
- More protection for the climate. Eco mode saves up to 525 kg CO²/year*
- Intelligent bypass regulation automatically adapts the flow rate to the pump capacity in the filter system
- If desired, continuous irradiation or device switch off are possible at the touch of a button
- Clever UVC function monitor, display for bulb change and water temperature
- Fully effective UVC radiation at all times, thanks to patented cleaning automation for the UV bulb
- Simple connection to other 2″ filter systems
- 100% protection against eye damage
- Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
- Concentrated UVC power clears ponds up to CH0177#
Easy installation
Thanks to stainless steel connection elements.
High quality V4A stainless steel housing
Provides stability and good reflection rates. Can be used even with increased salt content (dry setup).
Flexible installation
Before or after the filter system.
Technical Data:
| Dimensions (L x W x H) | mm | 725 x 227 x 248 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 120 |
| Power cable length | m | 5.00 |
| Net weight | kg | 7.75 |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| UVC power | W | 120 |
| Temperature display | Digital | |
| Bypass control | automatic | |
| UVC operating hours meter | 12000 h | |
| Function check | LED | |
| Number of inlets | Units | 1 |
| Inlet connections | mm | 38 / 50 |
| Inlet connections | 1 ½”, 2″ | |
| Number of outlets | Units | 1 |
| Connections, outlet | mm | 38 / 50 |
| Outlet connections | 1 ½”, 2″ | |
| Min. flow rate | l/h | 10000 |
| Max. flow rate | l/h | 50000 |
| Max. operating pressure | bar | 1 |
| Suitable for ponds up to max. | m3 | 120.0 |
| Suitable for ponds with fish stock | m3 | 60.0 |
| Suitable for ponds with koi | m3 | 30.0 |
| Connection to | BioTec 30, BioTec ScreenMatic² 90 – 140000, ProfiClear |
