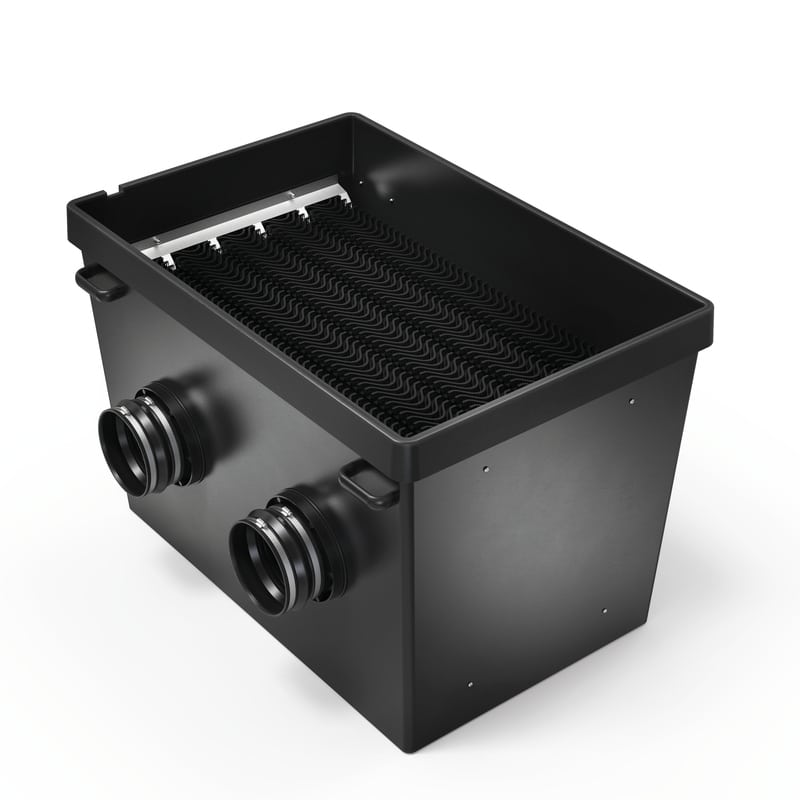

Oase ProfiClear Premium Standing Bed Module XL
  • Oase ProfiClear Premium Standing Bed Module XL
  • Oase ProfiClear Premium Standing Bed Module XL 2

Oase ProfiClear Premium Standing Bed Module XL

£2,507.99 inc. VAT

Oase ProfiClear Premium Standing Bed Module XL

The Oase ProfiClear Premium Standing Bed Module L is a modern modular filter system for professional water quality where space is at a minimum.

Features:

  • Mature, professional technology with more than three years of development time
  • Modern modular filter system for professional water quality where space is at a minimum

Characteristics:

  • CLEARWAVE BLOCKS: The extremely dense filter structure creates the largest possible inner surface, ideal for the colonisation of filter bacteria
  • DRUM FILTER CONNECTORS: To achieve the best filtration results, a ProfiClear Premium L or XL drum filter is placed upstream of the module

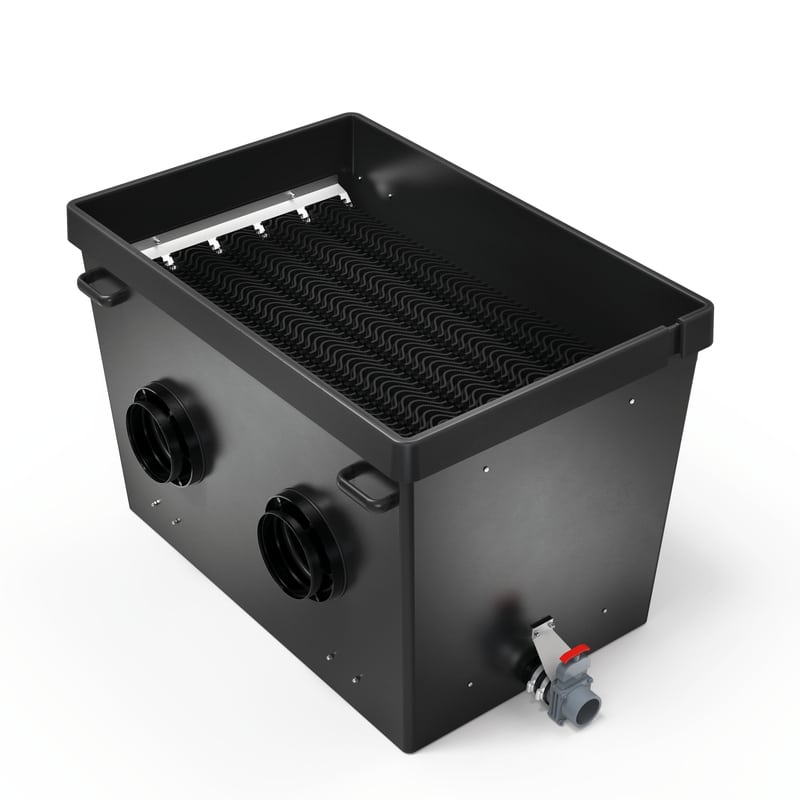

  • EASY TO CLEAN: Open the gate valve and the water will quickly drain away. The filter can then be conveniently removed for cleaning and maintenance and then reassembled.
  • OPTIONAL VENTILATION: You can add oxygen with the optional additional ventilation – this is an additional boost for even more water-cleaning filter bacteria activity
  • ROBUST HOUSING: Made from high-quality glass-fibre reinforced plastic (GRP Duroplast), the housing is extremely resistant to UV and temperature and therefore very long-lasting.
SKU: 87166 Category:

Description

Oase ProfiClear Premium Standing Bed Module XL

The Oase ProfiClear Premium Standing Bed Module L is a modern modular filter system for professional water quality where space is at a minimum.

Features:

  • Mature, professional technology with more than three years of development time
  • Modern modular filter system for professional water quality where space is at a minimum

Characteristics:

  • CLEARWAVE BLOCKS: The extremely dense filter structure creates the largest possible inner surface, ideal for the colonisation of filter bacteria
  • DRUM FILTER CONNECTORS: To achieve the best filtration results, a ProfiClear Premium L or XL drum filter is placed upstream of the module
  • EASY TO CLEAN: Open the gate valve and the water will quickly drain away. The filter can then be conveniently removed for cleaning and maintenance and then reassembled.
  • OPTIONAL VENTILATION: You can add oxygen with the optional additional ventilation – this is an additional boost for even more water-cleaning filter bacteria activity
  • ROBUST HOUSING: Made from high-quality glass-fibre reinforced plastic (GRP Duroplast), the housing is extremely resistant to UV and temperature and therefore very long-lasting.
Technical Data:
Dimensions (L x W x H) mm 1330 x 875 x 820
Net weight kg 102.00
Guarantee (+ request guarantee) Years 2 + 1
Biological filter surface protected m2 37.0
Material GRP Duroplast
Number of inlets Units 2
Inlet connections mm 180
Number of outlets Units 2
Outlet connections DN 180
Sludge discharge connections DN 75
Min. flow rate l/h 25000
Max. flow rate l/h 66000
Connection to ProfiClear Premium DF-XL gravity
Installation height above water level cm 8.5
Type of use Gravity fed system, Pump fed system
Other Aeration pre-installed
Pollutant discharge incl. slide valve

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Manual





Oase ProfiClear Premium Standing Bed Module XL manual.pdf

Q & A

Ask a question
There are no questions yet

Additional information

Weight 102 kg
Dimensions 134 × 88 × 82 cm
