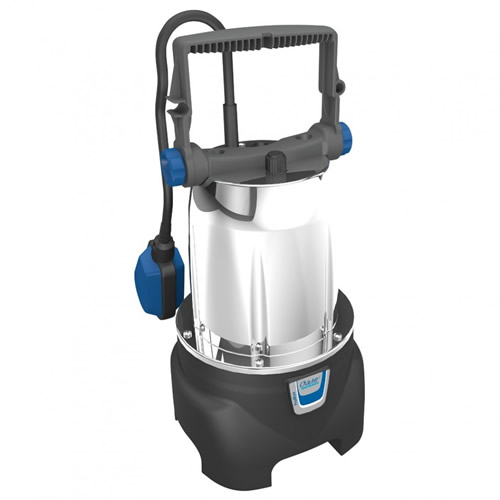

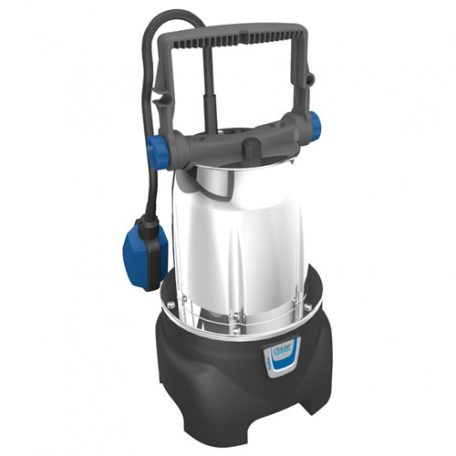

Oase Promax MudDrain 7000

£149.99 inc. VAT

Oase Promax MudDrain 7000

Oase Promax MudDrain 7000 characteristics

  • Adjustable handle: Easy and reliable positioning of the float in different positions | Convenient mounting on the connection of the pressure port positioned on top, through flipping it up | Can be unscrewed for permanent installation | Groove for rope fixation
  • For coarse debris: All models pump water with debris up to 30 mm in diameter
  • “A cool head”: Optimal heat dissipation of the motor thanks to water cooling, in conjunction with the stainless steel housing
  • Optimal particle throughput: Rear 1½” pressure port for ideal flow-through and minimal resistance
  • Robust and reliable: Automatic pump switch-on and switch-off through the float switch
  • Well-protected: Ceramic-coated stainless steel shaft
  • Secure stance: Minimal start-up pulses thanks to pressure port positioned along the central axis
  • Powerful: Generously-dimensioned motors
  • Versatile: Adjustable handle
  • Solid: High-quality and robust stainless steel housing
  • Easy to connect: Incl. 90° elbow and stepped adapter
Flow rate – Q max. l/h 7500
Delivery head – H max. m 5.00
Pressure – max. bar 0.5
Power consumption W 325
Power consumption hp 0.4
Rated voltage 230 V / 50 Hz
Guarantee (+ request guarantee) Years 2 + 1
Immersion depth max. m 7.00
Grain size – max. mm 30
Automatic function Float switch
Pressure-side connection 1 ½”
Power cable length m 10.00
Protection class IP X8
Net weight kg 5.60
Dimensions (L x W x H) mm 193 x 247 x 395
SKU: PP3917 Category:

Description

Oase Promax MudDrain 7000

Oase Promax MudDrain 7000 characteristics

  • Adjustable handle: Easy and reliable positioning of the float in different positions | Convenient mounting on the connection of the pressure port positioned on top, through flipping it up | Can be unscrewed for permanent installation | Groove for rope fixation
  • For coarse debris: All models pump water with debris up to 30 mm in diameter
  • “A cool head”: Optimal heat dissipation of the motor thanks to water cooling, in conjunction with the stainless steel housing
  • Optimal particle throughput: Rear 1½” pressure port for ideal flow-through and minimal resistance
  • Robust and reliable: Automatic pump switch-on and switch-off through the float switch
  • Well-protected: Ceramic-coated stainless steel shaft
  • Secure stance: Minimal start-up pulses thanks to pressure port positioned along the central axis
  • Powerful: Generously-dimensioned motors
  • Versatile: Adjustable handle
  • Solid: High-quality and robust stainless steel housing
  • Easy to connect: Incl. 90° elbow and stepped adapter
Flow rate – Q max. l/h 7500
Delivery head – H max. m 5.00
Pressure – max. bar 0.5
Power consumption W 325
Power consumption hp 0.4
Rated voltage 230 V / 50 Hz
Guarantee (+ request guarantee) Years 2 + 1
Immersion depth max. m 7.00
Grain size – max. mm 30
Automatic function Float switch
Pressure-side connection 1 ½”
Power cable length m 10.00
Protection class IP X8
Net weight kg 5.60
Dimensions (L x W x H) mm 193 x 247 x 395
