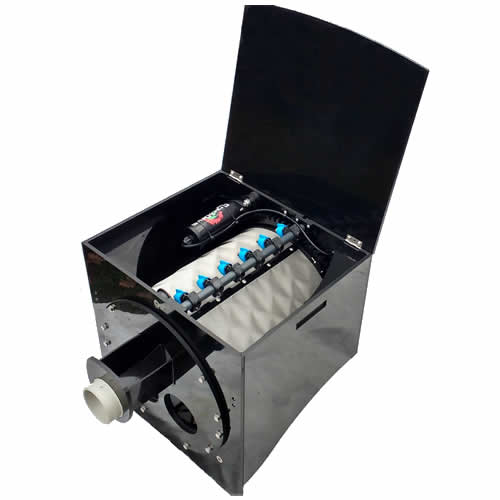

Origin 25 Draco Drum with twin inlets

(1 customer review)

£1,641.00 inc. VAT

Origin 25 Draco Drum with twin inlets

The Origin Draco Drum is a reasonably priced and reliable unit. It comes with a choice of screens 77 microns and 58 microns depending on what is required. This Drum Can be used without a pressure wash pump – wash cycle runs off a normal garden hose with a minimum pressure of 2.5 bar with good flow. The Origin uses 40 watts of power while active, 11.5 watts while on standby and 78 watts while active with optional pressure pump. The Drive system comprises direct gearing to the back of the drum minimising complexity, the sealed motor unit is mounted on a single pivot swing arm as a safety feature to stop foreign bodies jamming the system. Its a fairly Simple installation via multiple types of adaptor plate which are interchangeable Single, pre-wired connection from controller to drum. Just plug and play ability to site controller up to 4 metres away from the unit. The Status of controller is available via simple, high intensity, colour coded LEDs and a digital minute between washes display. Easily accessible water level sensors that can be adjusted to accommodate any situation
All parts are modular and are replaceable in the event of any damage or failure Wholly designed and built in the UK by Draco Drum.

Technical Data:
  • 5500gph / 25000lph flow rate
  • Twin 110mm inlets
  • Filters to 58 micron
  • Gravity or pump fed
  • Designed to wash from mains pressure (down to 2 bar)
  • 11 watts standby / 40 watts wash
  • 12 volts DC waterside electrics
  • Simple plug and play design
  • Polypropylene / stainless steel construction
  • Totally modular – all parts user replaceable
  • Optional bolt on wash pump (for low water pressure areas)
Clear selection
SKU: origin25 Category:

Description

Origin 25 Draco Drum with twin inlets

The Origin Draco Drum is a reasonably priced and reliable unit. It comes with a choice of screens 77 microns and 58 microns depending on what is required. This Drum Can be used without a pressure wash pump – wash cycle runs off a normal garden hose with a minimum pressure of 2.5 bar with good flow. The Origin uses 40 watts of power while active, 11.5 watts while on standby and 78 watts while active with optional pressure pump. The Drive system comprises direct gearing to the back of the drum minimising complexity, the sealed motor unit is mounted on a single pivot swing arm as a safety feature to stop foreign bodies jamming the system. Its a fairly Simple installation via multiple types of adaptor plate which are interchangeable Single, pre-wired connection from controller to drum. Just plug and play ability to site controller up to 4 metres away from the unit. The Status of controller is available via simple, high intensity, colour coded LEDs and a digital minute between washes display. Easily accessible water level sensors that can be adjusted to accommodate any situation
All parts are modular and are replaceable in the event of any damage or failure Wholly designed and built in the UK by Draco Drum.

Technical Data:
  • 5500gph / 25000lph flow rate
  • Twin 110mm inlets
  • Filters to 58 micron
  • Gravity or pump fed
  • Designed to wash from mains pressure (down to 2 bar)
  • 11 watts standby / 40 watts wash
  • 12 volts DC waterside electrics
  • Simple plug and play design
  • Polypropylene / stainless steel construction
  • Totally modular – all parts user replaceable
  • Optional bolt on wash pump (for low water pressure areas)

1 review for Origin 25 Draco Drum with twin inlets

  1. Matthew Horan (verified owner) –

    a great piece of Kit. Works very fish well. nice clear water again.The fish love it.

Only logged in customers who have purchased this product may leave a review.

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight 20 kg
Dimensions 60 × 60 × 60 cm
Application

Gravity, Pump fed
Screen Size

77 Microns, 58 Microns
