Microscopes, Aquarium and pond fish kept in an artificial environment are particularly prone to parasitic infestations even in the most careful situations. For a mixed population tropical tank this can be devastating and for the Koi carp keeper a nightmare. Good housekeeping is always the starting point, but often the slightest imbalance in any number of factors can result in the almost spontaneous appearance of parasites ranging from the common Ich in the aquarium, to the more serious Costia and Trichodina in Koi carp, not to mention fungus and louse infestations.
There are many proprietary treatments readily available, but the difficulty remains in positively identifying the problem –

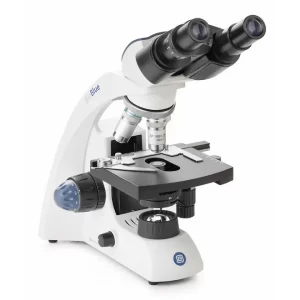

Novex BioBlue Microscope
The innovative Novex BioBlue Microscope series provides robust and excellent Optical and Mechanical construction at a very reasonable price.
The DIN WF 10x/18 eyepieces of the BioBlue mono- and binocular models provide the ideal field of view. The achromatic semiplan 45 mm DIN objectives are parafocally aligned on the 160 mm DIN tubes. When changing the magnification the image remains perfectly in focus and entered. The high precision mechanism of the coaxial course- and fine control combined with the spherical corrected optics enable the BioBlue to produce very sharp images. All models are equipped with a height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder.
The aluminium BioBlue stand has been designed to be very stable. A built-in protection system prevents any damage to the specimen and objective. The BB.4200 has a plain stage with 2 object clamps. All other models have a large 130×130 mm stage with vernier and a integrated mechanical translation stage with 70×28 mm travel range.
The BioBlue is equipped with a 1 Watt adjustable LED illuminator, which produces no heat. Besides the low power consumption the internal universal AC power supply makes use of an external vulnerable AC-DC power adapter completely redundant. The built-in rechargeable AA type batteries allow a 60 hrs continuous operation of the microscope.
A lot of effort has been put into the ergonomical aspects of the BioBlue. A comfortable handgrip enables easy transportation. Ergonomically placed adjustment knobs minimize fatigue during long microscopy sessions. The general shape of the stand has been specifically designed to match today’s standard.
General technical information
Eyepiece – WF 10x/18 wide field eyepiece, secured with screw. Monocular models have an eyepiece with built-in pointer
Tube – Monocular or Binocular Siedentopf type head, 360° rotatable; Tube length 160 mm
Nosepiece – Reversed nosepiece for 4 objectives. Ball-bearing mechanism and click-stops.
Objectives – Achromatic color coded DIN semiplan objectives. The 40x, 60x and 100x-oil objectives are spring-mounted
Protection – Built in protection system for specimen and objective
Stages – A 120×120 mm plain stage or 130×130 mm stage with double layered mechanical X-Y stage are available
The translation range of the mechanical X-Y stage is 70×28 mm
Focus control – Coaxial coarse- and fine adjustment knobs on both sides with 0.002 mm graduations Friction of focus control can be adjusted.
Condenser – Height adjustable Abbe condenser N.A. 1.25 with iris diaphgram and filter holder.
Illumination – LED 1 Watt illumination with internal power supply (85-230V) and 3 NiMH AA type batteries
Packaging – Complete with spare fuse and dustcover in styrofoam case.
Models equiped with S100x-oil objectives are delivered with 5 ml immersion oil
Manual – English (also available in French, Dutch and German language)
Novex LED Junior Microscope
The Novex LED Junior microscopes stand for quality and reliability. Much attention has been given to the mechanical and optical components. The Novex LED Junior microscope is very well priced despite the usage of high quality materials and is perfect for entry level.
Head Monocular rotatable tube 130mm
Eyepiece With locked in WF 10x eyepiece with fixed pointer
Revolver Triple revolving nosepiece locked in achromatic objectives 4x, 10x and spring loaded S40x.
Focusing Rack and pinion focusing with slip clutch mechanism
Stage 90 x 90mm with condensor, disc diaphragm and locked on stage clips
Adjustable Stopper To prevent objectives and specimen
LED Illuminator With 3 rechargeable Ni-MH batteries for minimum 60 hours use. Includes battery charger for 230v connection.
Stand Off white/black epoxy coated stand
Magnification 40x, 100x and 400x
Packed with dust cover in styrofoam case
DimensionsH x W x L 30x12x16cm, weight 1.6kg
Novex Pro 86 Microscope
The attractively priced Novex Pro 86 Microscope has it all they are high quality, robust biological microscopes for educational purposes and scientific research. The Novex Pro 86 Microscope is a Large binocular microscope for laboratory use.
Equipped with DIN-objectives and eyepieces. All optical parts are fully coated.
Binocular head with 30° inclined tube, fully rotatable over 360°. One eyepiece tube is provided with a diopter adjustment. Interpupillary distance adjustable between 55 and 75 mm. Tube length 160 mm.
Stand heavy alloy stand is enameled with a stove-hardened off-white and black lacquer.
Focus control by means of coaxial coarse and fine adjustment knobs; fine adjustment knob is graduated for 0.002 mm. per interval.
Revolvable inward facing nosepiece, ball-bearing mechanism, for 4 objectives.
Large mechanical stage, 120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm. Double nonius, readable in 0.1 mm.
Abbe condenser N.A. 1.25 in centrable holder, with iris diaphragm and filter holder with neutral filter and blue filter. Vertical adjustment by means of control knob.
Lighting, built-in halogen 6 volt 20 watt illuminator with neutral filter. Continuous light control by means of thyristor regulation. Built-in 230 volt transformer with switch.
Optical combination, Paired DIN widefield eyepieces WF10x/18.
SEMI PLAN achromatic DIN-objectives 4x N.A.0.10, 10x N.A.0.25, S40x N.A.0.65 and S100x N.A.1.25, oil-immersion. The 40x and 100x objectives are spring-mounted. All optical parts are coated.
Packed with dust cover in styrofoam case.
Novex Smart Microscope
In the category of compact binocular microscopes, the Novex Smart Microscope is the only model equipped with 4 achromatic objectives, a mechanical stage and a height adjustable Abbe condenser. Together with the coarse and fine adjustment and a strong halogen light source, the Novex Smart Microscope offers an ideal solution for everybody with a limited budget to acquire an outstanding microscope of this category The Novex Smart Microscope is suitable for education purposes and demanding amateurs.
Tubus Binocular with 30° inclined Siedentopf head, 360° rotatable
One tube is equipped with a diopter adjustment
Adjustment interpupillary distance between 55 and 75 mm
Tube lens length 160 mm
Eyepiece Wide field DIN WF 10x / 18 eyepiece
Objectives Achromatic 35mm objectives
4x/0.10, 10x/0.25, S40x/0.65 and S100x /1.25 oil immersion objective
The S40x/0.65 and S100x/1.25 objectives are spring mounted
Stand Coarse and fine adjustment knobs
Nosepiece With ball bearing and for 4 objectives
Stage 120 x 115 mm and mechanical stage with coaxial vertical mounted adjustment knobs, Range mechanical stage 80 x 35 mm, Double 0.1 mm nonius, Removable object holder
Protection Specimen protection to prevent damage of objective and specimen
Condenser Height adjustable Abbe 1.25 condenser, mounted in centering ring
With aperture diaphragm, filter holder and blue filter
Illuminator Built-in 6 V 20 Watt halogen illumination with adjustable light intensity
Built-in 230 V transformer with On/Off switch
Dimensions 205 x 150 x 340 mm ( L x W x H )
Packaging Complete with dust cover and styrofoam case
