Bio-UV 10 professional UVC unit
Bio-UV 10 professional UVC unit
The Bio UV Professional is probably the worlds best UV system made from 316L Stainless Steel. With a 6″ Body and 2-3″ returns for today’s high flow system. The Bio UV Professional incorporates a single lamp for ponds up to 30,000 gallons, with a long life lamp of 9000 hours. All units are IPS4 rating. Kills 99.9% of algae spores, bacteria and viruses.
How the Bio-UV 10 professional UVC unit works
It has been long known that ultraviolet lamps at a wavelength of 254 nanometers, or 2537 Angstrom, have high bactericidal, virucidal and algicidal properties. Type C ultraviolet eradicates germs by aggressively disrupting the cell metabolisms leading to their destruction. These lamps should not be mistaken for ozone producing lamps, which operate at different wavelengths. Ultraviolet radiation is measured in micro watts/second/cm2.
The key elements for efficient disinfecting are based, on one hand on the exposure time (i.e the ratio between the size of the pond and the flow rate through the filter) , and on the other hand, on the energy emitted in micro watts/second/cm2 at the furthest point from the lamp. Performance is measured in milijoules (mj) by combining the energy emitted by the lamp and the exposure time. The Bio UV range UV-C lamps work at levels above the minimum required to destroy the principle micro-organisms, which may be found in Koi ponds. In addition thanks to the reflection produced by the stainless steel (316L) within the chamber, efficiency is increased by 20 to 30 %. Micro-organisms must, in theory be exposed for a minimum of 1 second. However, BIO-UV equipment specifications, depending on the flow rates, double the exposure time to 2 seconds, for optimal disinfecting. In order not to hinder the action of the UV-C it is important to have a high filtration quality so that large particles do not screen the radiation.
Warranties
The Bio UV Professional offers a five-year warranty on the stainless steel chamber and a full year one-year warranty on all other components (including UV lamp). If installed according to manual.
Finally
The The Bio UV Professional system gives you the comfort of knowing that your water quality is superior to that of any other type of system, ease of installation, virtually no maintenance and optimum reliability.
Important Note: When ordering UV lamps please make sure you open the box to make sure the lamps are not broken before signing the delivery note, if the bulbs are damaged please sign the delivery note “Damaged” and refuse delivery.
A claim will ONLY be accepted if signed for as DAMAGED.
| Type | Pond Size | Height | Watt | GPH | Dia | Kg | |
|---|---|---|---|---|---|---|---|
| Bio UV 10 | Up to 4000 gallons | 42 cm | 30 | 2599 | 15 cm | 7.6 | |
| Bio UV 20 | Up to 8000 gallons | 69 cm | 55 | 4500 | 15 cm | 9 | |
| Bio UV 30 | Up to 15000 gallons | 94 cm | 87 | 7000 | 15 cm | 11 | |
| Bio UV 40 | Up to 27000 gallons | 120 cm | 105 | 9000 | 15 cm | 14 |
This is the Bio-UV 10 professional UVC unit
Bio-UV 20 professional UVC unit
Bio-UV 20 professional UVC unit
The Bio UV Professional is probably the worlds best UV system made from 316L Stainless Steel. With a 6″ Body and 2-3″ returns for today’s high flow system. The Bio UV Professional incorporates a single lamp for ponds up to 30,000 gallons, with a long life lamp of 9000 hours. All units are IPS4 rating. Kills 99.9% of algae spores, bacteria and viruses.
How the Bio-UV 20 professional UVC unit works
It has been long known that ultraviolet lamps at a wavelength of 254 nanometers, or 2537 Angstrom, have high bactericidal, virucidal and algicidal properties. Type C ultraviolet eradicates germs by aggressively disrupting the cell metabolisms leading to their destruction. These lamps should not be mistaken for ozone producing lamps, which operate at different wavelengths. Ultraviolet radiation is measured in micro watts/second/cm2.
The key elements for efficient disinfecting are based, on one hand on the exposure time (i.e the ratio between the size of the pond and the flow rate through the filter) , and on the other hand, on the energy emitted in micro watts/second/cm2 at the furthest point from the lamp. Performance is measured in milijoules (mj) by combining the energy emitted by the lamp and the exposure time. The Bio UV range UV-C lamps work at levels above the minimum required to destroy the principle micro-organisms, which may be found in Koi ponds. In addition thanks to the reflection produced by the stainless steel (316L) within the chamber, efficiency is increased by 20 to 30 %. Micro-organisms must, in theory be exposed for a minimum of 1 second. However, BIO-UV equipment specifications, depending on the flow rates, double the exposure time to 2 seconds, for optimal disinfecting. In order not to hinder the action of the UV-C it is important to have a high filtration quality so that large particles do not screen the radiation.
Warranties
The Bio UV Professional offers a five-year warranty on the stainless steel chamber and a full year one-year warranty on all other components (including UV lamp). If installed according to manual.
Finally
The The Bio UV Professional system gives you the comfort of knowing that your water quality is superior to that of any other type of system, ease of installation, virtually no maintenance and optimum reliability.
Important Note: When ordering UV lamps please make sure you open the box to make sure the lamps are not broken before signing the delivery note, if the bulbs are damaged please sign the delivery note “Damaged” and refuse delivery.
A claim will ONLY be accepted if signed for as DAMAGED.
| Type | Pond Size | Height | Watt | GPH | Dia | Kg | |
|---|---|---|---|---|---|---|---|
| Bio UV 10 | Up to 4000 gallons | 42 cm | 30 | 2599 | 15 cm | 7.6 | |
| Bio UV 20 | Up to 8000 gallons | 69 cm | 55 | 4500 | 15 cm | 9 | |
| Bio UV 30 | Up to 15000 gallons | 94 cm | 87 | 7000 | 15 cm | 11 | |
| Bio UV 40 | Up to 27000 gallons | 120 cm | 105 | 9000 | 15 cm | 14 |

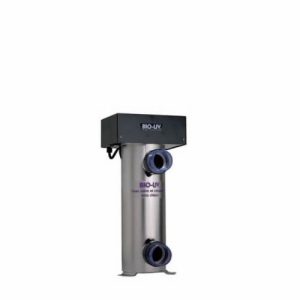

This is the Bio-UV 20 professional UVC unit
Bio-UV 30 professional UVC unit
Bio-UV 30 professional UVC unit
The Bio UV Professional is probably the worlds best UV system made from 316L Stainless Steel. With a 6″ Body and 2-3″ returns for today’s high flow system. The Bio UV Professional incorporates a single lamp for ponds up to 30,000 gallons, with a long life lamp of 9000 hours. All units are IPS4 rating. Kills 99.9% of algae spores, bacteria and viruses.
How the Bio-UV 30 professional UVC unit works
It has been long known that ultraviolet lamps at a wavelength of 254 nanometers, or 2537 Angstrom, have high bactericidal, virucidal and algicidal properties. Type C ultraviolet eradicates germs by aggressively disrupting the cell metabolisms leading to their destruction. These lamps should not be mistaken for ozone producing lamps, which operate at different wavelengths. Ultraviolet radiation is measured in micro watts/second/cm2.
The key elements for efficient disinfecting are based, on one hand on the exposure time (i.e the ratio between the size of the pond and the flow rate through the filter) , and on the other hand, on the energy emitted in micro watts/second/cm2 at the furthest point from the lamp. Performance is measured in milijoules (mj) by combining the energy emitted by the lamp and the exposure time. The Bio UV range UV-C lamps work at levels above the minimum required to destroy the principle micro-organisms, which may be found in Koi ponds. In addition thanks to the reflection produced by the stainless steel (316L) within the chamber, efficiency is increased by 20 to 30 %. Micro-organisms must, in theory be exposed for a minimum of 1 second. However, BIO-UV equipment specifications, depending on the flow rates, double the exposure time to 2 seconds, for optimal disinfecting. In order not to hinder the action of the UV-C it is important to have a high filtration quality so that large particles do not screen the radiation.
Warranties
The Bio UV Professional offers a five-year warranty on the stainless steel chamber and a full year one-year warranty on all other components (including UV lamp). If installed according to manual.
Finally
The The Bio UV Professional system gives you the comfort of knowing that your water quality is superior to that of any other type of system, ease of installation, virtually no maintenance and optimum reliability.
Important Note: When ordering UV lamps please make sure you open the box to make sure the lamps are not broken before signing the delivery note, if the bulbs are damaged please sign the delivery note “Damaged” and refuse delivery.
A claim will ONLY be accepted if signed for as DAMAGED.
| Type | Pond Size | Height | Watt | GPH | Dia | Kg | |
|---|---|---|---|---|---|---|---|
| Bio UV 10 | Up to 4000 gallons | 42 cm | 30 | 2599 | 15 cm | 7.6 | |
| Bio UV 20 | Up to 8000 gallons | 69 cm | 55 | 4500 | 15 cm | 9 | |
| Bio UV 30 | Up to 15000 gallons | 94 cm | 87 | 7000 | 15 cm | 11 | |
| Bio UV 40 | Up to 27000 gallons | 120 cm | 105 | 9000 | 15 cm | 14 |

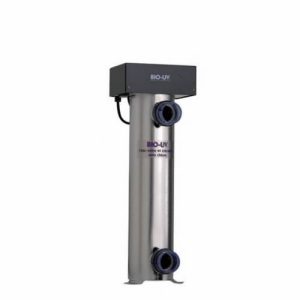

This is the Bio-UV 30 professional UVC unit
Bio-UV 40 professional UVC unit
Bio-UV 40 professional UVC unit
The Bio UV Professional is probably the worlds best UV system made from 316L Stainless Steel. With a 6″ Body and 2-3″ returns for today’s high flow system. The Bio UV Professional incorporates a single lamp for ponds up to 30,000 gallons, with a long life lamp of 9000 hours. All units are IPS4 rating. Kills 99.9% of algae spores, bacteria and viruses.
How the Bio-UV 40 professional UVC unit works
It has been long known that ultraviolet lamps at a wavelength of 254 nanometers, or 2537 Angstrom, have high bactericidal, virucidal and algicidal properties. Type C ultraviolet eradicates germs by aggressively disrupting the cell metabolisms leading to their destruction. These lamps should not be mistaken for ozone producing lamps, which operate at different wavelengths. Ultraviolet radiation is measured in micro watts/second/cm2.
The key elements for efficient disinfecting are based, on one hand on the exposure time (i.e the ratio between the size of the pond and the flow rate through the filter) , and on the other hand, on the energy emitted in micro watts/second/cm2 at the furthest point from the lamp. Performance is measured in milijoules (mj) by combining the energy emitted by the lamp and the exposure time. The Bio UV range UV-C lamps work at levels above the minimum required to destroy the principle micro-organisms, which may be found in Koi ponds. In addition thanks to the reflection produced by the stainless steel (316L) within the chamber, efficiency is increased by 20 to 30 %. Micro-organisms must, in theory be exposed for a minimum of 1 second. However, BIO-UV equipment specifications, depending on the flow rates, double the exposure time to 2 seconds, for optimal disinfecting. In order not to hinder the action of the UV-C it is important to have a high filtration quality so that large particles do not screen the radiation.
Warranties
The Bio UV Professional offers a five-year warranty on the stainless steel chamber and a full year one-year warranty on all other components (including UV lamp). If installed according to manual.
Finally
The The Bio UV Professional system gives you the comfort of knowing that your water quality is superior to that of any other type of system, ease of installation, virtually no maintenance and optimum reliability.
Important Note: When ordering UV lamps please make sure you open the box to make sure the lamps are not broken before signing the delivery note, if the bulbs are damaged please sign the delivery note “Damaged” and refuse delivery.
A claim will ONLY be accepted if signed for as DAMAGED.
| Type | Pond Size | Height | Watt | GPH | Dia | Kg | |
|---|---|---|---|---|---|---|---|
| Bio UV 10 | Up to 4000 gallons | 42 cm | 30 | 2599 | 15 cm | 7.6 | |
| Bio UV 20 | Up to 8000 gallons | 69 cm | 55 | 4500 | 15 cm | 9 | |
| Bio UV 30 | Up to 15000 gallons | 94 cm | 87 | 7000 | 15 cm | 11 | |
| Bio UV 40 | Up to 27000 gallons | 120 cm | 105 | 9000 | 15 cm | 14 |

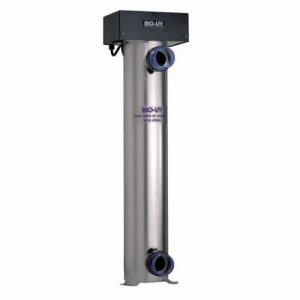

This is the Bio-UV 40 professional UVC unit
Cloverleaf Eco Smartstart UVC 144 Watt
Cloverleaf Eco Smartstart UVC 144 Watt
Following on from the great success of the Stainless Steel Smart Start UV clarifiers, Cloverleaf have taken technology one further step towards perfection in now launching the high-tec high performance Smartstart Eco UV, which through design and build quality offers numerous advantages to the fastidious pond keeper.
Key features include a unique starter ballast unit built into the Smartstart lamp, which unlike conventional ballasts offers consistent light performance throughout the year when the replacement of the Smartstart lamp is equal to installing a new ballast. Additional quality features include a visually sleek design with the provision of double seal end caps which have been pressure tested to a high 10 bar. This specification coupled with the use of a removable fused Quartz sleeve (not plastic) should hopefully indicate that only the best components have been used in the Smartstart’s construction.
Spiral flow chamber now with double seal Endcaps and pressure tested to 10 Bar, with an incredable 2 year guarantee, with long life lamp of 9000 hours, less power for greater performance.
The Cloverleaf Eco Smartstart 144 Watt model makes use of 4 x 36 watt single germicidal Smartstart lamps. This unit is suitable for ponds up to 6000 gallons based on full sun exposure.
Suitable for Ponds up to 6000 Gallons (26400 Litres)
Cloverleaf Eco Smartstart UVC 48 Watt
Cloverleaf Eco Smartstart UVC 48 Watt
Following on from the great success of the Stainless Steel Smart Start UV clarifiers, Cloverleaf have taken technology one further step towards perfection in now launching the high-tec high performance Cloverleaf Eco Smartstart Uv 48 Watt, which through design and build quality offers numerous advantages to the fastidious pond keeper.
Key features of the Cloverleaf Eco Smartstart Uv 48 Watt include a unique starter ballast unit built into the Smartstart lamp, which unlike conventional ballasts offers consistent light performance throughout the year when the replacement of the Smartstart lamp is equal to installing a new ballast. Additional quality features of the Cloverleaf Eco Smartstart Uv 48 Watt include a visually sleek design with the provision of double seal end caps which have been pressure tested to a high 10 bar. This specification coupled with the use of a removable fused Quartz sleeve (not plastic) should hopefully indicate that only the best components have been used in the Smartstart’s construction.
Spiral flow chamber now with double seal Endcaps and pressure tested to 10 Bar, with an incredable 2 year guarantee, with long life lamp of 9000 hours, less power for greater performance.
The Cloverleaf Eco Smartstart UVC 48 Watt model makes use of 2 x 24 watt single germicidal Smartstart lamps. This unit is suitable for ponds up to 2000 gallons based on full sun exposure.
Suitable for Ponds up to 2000 Gallons (8800 Litres)
Cloverleaf Eco Smartstart UVC 72 Watt
Cloverleaf Eco Smartstart UVC 72 Watt
Following on from the great success of the Stainless Steel Smart Start UV clarifiers, Cloverleaf have taken technology one further step towards perfection in now launching the high-tec high performance Cloverleaf Eco Smartstart Uv 72 Watt, which through design and build quality offers numerous advantages to the fastidious pond keeper.
Key features of the Cloverleaf Eco Smartstart Uv 72 Watt include a unique starter ballast unit built into the Smartstart lamp, which unlike conventional ballasts offers consistent light performance throughout the year when the replacement of the Smartstart lamp is equal to installing a new ballast. Additional quality features of the Cloverleaf Eco Smartstart Uv 72 Watt include a visually sleek design with the provision of double seal end caps which have been pressure tested to a high 10 bar. This specification coupled with the use of a removable fused Quartz sleeve (not plastic) should hopefully indicate that only the best components have been used in the Smartstart’s construction.
Spiral flow chamber now with double seal Endcaps and pressure tested to 10 Bar, with an incredable 2 year guarantee, with long life lamp of 9000 hours, less power for greater performance.
The Cloverleaf Eco Smartstart 72 Watt model makes use of 2 x 36 watt single germicidal Smartstart lamps. This unit is suitable for ponds up to 3000 gallons based on full sun exposure.
Suitable for Ponds up to 3000 Gallons (13200 Litres)
Cloverleaf Smartstart Stainless Steel UVC – 24 watt
Cloverleaf Smartstart Stainless Steel UVC – 24 watt
Following on from the great success of their Standard Stainless Steel UV clarifiers, Cloverleaf have taken technology one further step towards perfection in now launching the high-tec high performance Smartstart Stainless Steel UV, which through design and build quality offers numerous advantages to the fastidious pond keeper.
Cloverleaf Smartstart 24 Watt Key features include a unique starter ballast unit built into the Smartstart lamp (see photo), which unlike conventional ballasts offers consistent light performance throughout the year when the replacement of the Smartstart lamp is equal to installing a new ballast. Additional quality features include a visually sleek design with the provision of double seal end caps which have been pressure tested to a high 10 bar.
This specification coupled with the use of a genuine heavy gauge 316L polished stainless steel body/radiation chamber, together with a removable fused Quartz sleeve (not plastic) should hopefully indicate that only the best components have been used in the Smartstart’s construction.
Spiral flow chamber now with double seal Endcaps and pressure tested to 10 Bar, with an incredable 2 year guarantee, with long life lamp of 9000 hours, less power for greater performance.
The Cloverleaf Smartstart Stainless Steel UVC – 24 watt makes use of a single germicidal Smartstart lamp. This unit is suitable for ponds up to 1800 gallons based on full sun exposure. With so many small garden ponds with capacities from 750 to 1500 gallons this unit will be totally ideal for many pond keepers, and at a price not much different than “some” plastic bodied UV’s on the market it will surely be reviewed as highly desirable.
Suitable for ponds up to 1,800 gallons (8100 litres)
Cloverleaf Smartstart Stainless Steel UVC-144 watt
Cloverleaf Smartstart Stainless Steel UVC-144 watt
The Cloverleaf Smartstart Stainless Steel UV – 144 watt Twin Bar model makes use of 4 No 36 watt germicidal Smartstart lamps.
This superb unit is suitable for ponds up to 9,000 gallons (40500 litres) based on full sun exposure. This model will also appeal to those with existing problematic smaller ponds where conventional plastic bodied UV’s have failed to perform the task at hand to a satisfactory standard.
Key features include a unique starter ballast unit built into the Smartstart lamp (see photo), which unlike conventional ballasts offers consistent light performance throughout the year when the replacement of the Smartstart lamp is equal to installing a new ballast. Additional quality features include a visually sleek design with the provision of double seal end caps which have been pressure tested to a high 10 bar.
This specification coupled with the use of a genuine heavy gauge 316L polished stainless steel body/radiation chamber, together with a removable fused Quartz sleeve (not plastic) should hopefully indicate that only the best components have been used in the Smartstart’s construction.
Spiral flow chamber now with double seal Endcaps and pressure tested to 10 Bar, with an incredible 2 year guarantee, with long life lamp of 9000 hours, less power for greater performance.
Suitable for ponds up to 9000 gallons (40500 litres)
Cloverleaf Smartstart Stainless Steel UVC-36 watt
Cloverleaf Smartstart Stainless Steel UVC-36 watt
The Cloverleaf Smartstart Stainless Steel UVC-36 watt model makes use of 1 No 36 watt germicidal Smarstart lamps, with the 48 Watt model making use of 2 No 24 watt germicidal Smartstart lamps
The 36 watt model is suitable for ponds up to 2500 gallons, with the 48 watt model being suitable for ponds up to a maximum of 3000 gallons based on full sun exposure.
The 48 watt model is proving to be immensely popular due to the be easy upgrade at a later date to a 72 watt version, simply by changing the lamps for a larger size.
This specification coupled with the use of a genuine heavy gauge 316L polished stainless steel body/radiation chamber, together with a removable fused Quartz sleeve (not plastic) should hopefully indicate that only the best components have been used in the Smartstart’s construction.
Spiral flow chamber now with double seal Endcaps and pressure tested to 10 Bar, with an incredible 2 year guarantee, with long life lamp of 9000 hours, less power for greater performance.
Suitable for ponds up to 2500 gallons (11400 litres)
Cloverleaf Smartstart Stainless Steel UVC-48 watt
Cloverleaf Smartstart Stainless Steel UVC-48 watt
The Cloverleaf Smartstart Stainless Steel UVC-48 watt model makes use of 2 No 24 watt germicidal Smarstart lamps, with the 72 Watt model making use of 2 No 36 watt germicidal Smartstart lamps
The 48 watt model is suitable for ponds up to 3000 gallons, with the 72 watt model being suitable for ponds up to a maximum of 7000 gallons based on full sun exposure.
The 48 watt model is proving to be immensely popular due to the be easy upgrade at a later date to a 72 watt version, simply by changing the lamps for a larger size.
This specification coupled with the use of a genuine heavy gauge 316L polished stainless steel body/radiation chamber, together with a removable fused Quartz sleeve (not plastic) should hopefully indicate that only the best components have been used in the Smartstart’s construction.
Spiral flow chamber now with double seal Endcaps and pressure tested to 10 Bar, with an incredible 2 year guarantee, with long life lamp of 9000 hours, less power for greater performance.
Suitable for ponds up to 3000 gallons (13500 litres)
Cloverleaf Smartstart Stainless Steel UVC-72 watt
Cloverleaf Smartstart Stainless Steel UVC-72 watt
Cloverleaf Smartstart Stainless Steel UV – 72 watt model makes use of 2 No 36 watt germicidal Smarstart lamps, with the 96 Watt model making use of 4 No 24 watt germicidal Smartstart lamps
The Cloverleaf Smartstart Stainless Steel UV – 72 watt model being suitable for ponds up to a maximum of 7000 gallons based on full sun exposure.
Key features include a unique starter ballast unit built into the Smartstart lamp (see photo), which unlike conventional ballasts offers consistent light performance throughout the year when the replacement of the Smartstart lamp is equal to installing a new ballast. Additional quality features include a visually sleek design with the provision of double seal end caps which have been pressure tested to a high 10 bar.
This specification coupled with the use of a genuine heavy gauge 316L polished stainless steel body/radiation chamber, together with a removable fused Quartz sleeve (not plastic) should hopefully indicate that only the best components have been used in the Smartstart’s construction.
Spiral flow chamber now with double seal Endcaps and pressure tested to 10 Bar, with an incredible 2 year guarantee, with long life lamp of 9000 hours, less power for greater performance.
Suitable for ponds up to 7000 gallons (31500 litres)
Delta UV EA Series
Delta UV EA Series
A new series of professional Stainless Steel UVC-units for ponds, pools, whirpools etc. The Delta Ultraviolet’s Elektra® Pro Delta Bio-UV series of UV sanitizers have been in production since 1999. These 100% Stainless Steel housing systems have become the “Cadillac” of UV sanitizers for the Koi Pond industry and have gained a reputation second to none for quality, functionality, performance and reliability.
Five different model sizes are available for circulation systems with water flow rates from 800 GPH (3,600 LPH) to 3,450 GPH (15,600 LPH). All models are available in 120V and 240V 50/60 Hz electrical ratings for worldwide application.
Exclusive features, as mentioned above include a 316 stainless steel housing that allows for 360° rotation of the inlet and outlet unions for ease of installation. Another key exclusive feature not commonly found in similar units is the inclusion of unions at each end of the stainless steel housing to facilitate cleaning of the quartz tube, should it be necessary.
As you can clearly see from the image below these UV’s can be mounted either vertically or horizontally.
Like all Delta Ultraviolet systems, Delta’s propriety High Output (HO) low pressure lamp is capable of 30,000 µ/sec./cm2 output lamp end-of-life (EOL) when design flow rates are maintained. This is the same requirement for Class A drinking water. The long life lamp is rated at 9000 hours of continuous use (approximately 1 year).
The UV-5 and UV-10 models contain a 3″ (076mm) Stainless Steel chamber, whilst the UV-4H10, UV-20, and UV-40 models each have a 4″ (100mm) Stainless Steel chamber. All models have 63mm solvent connections.
Delta UV EA Series Technical data
| Type | Pond Size | Max Pressure | Flow Rate | UV-C Dose | Dia | UV Lamps |
|---|---|---|---|---|---|---|
| Delta UV EA-3H-5 | Up to 1500 gallons | 3 Bar | 2400 lph | 30mJ/cm2 | 75 mm | 1 x 35 watt |
| Type | Pond Size | Max Pressure | Flow Rate | UV-C Dose | Dia | UV Lamps |
|---|---|---|---|---|---|---|
| Delta UV EA-4H-15 | Up to 4500 gallons | 3 Bar | 7600 lph | 30mJ/cm2 | 100 mm | 1 x 55 watt |
| Delta UV EA-4H-20 | Up to 6000 gallons | 3 Bar | 9500 lph | 30mJ/cm2 | 100 mm | 1 x 90 watt |
| Delta UV EA-4H-40 | Up to 7000 gallons | 3 Bar | 10700 lph | 30mJ/cm2 | 100 mm | 1 x 110 watt |
Delta UV EA Series Bulb Replacements
Delta UV EA Series Bulb Replacements
A new series of professional Stainless Steel UVC-units for ponds, pools, whirpools etc. The Delta Ultraviolet’s Elektra® Pro Delta Bio-UV series of UV sanitizers have been in production since 1999. These 100% Stainless Steel housing systems have become the “Cadillac” of UV sanitizers for the Koi Pond industry and have gained a reputation second to none for quality, functionality, performance and reliability.
Five different model sizes are available for circulation systems with water flow rates from 800 GPH (3,600 LPH) to 3,450 GPH (15,600 LPH). All models are available in 120V and 240V 50/60 Hz electrical ratings for worldwide application.
Exclusive features, as mentioned above include a 316 stainless steel housing that allows for 360° rotation of the inlet and outlet unions for ease of installation. Another key exclusive feature not commonly found in similar units is the inclusion of unions at each end of the stainless steel housing to facilitate cleaning of the quartz tube, should it be necessary.
As you can clearly see from the image below these UV’s can be mounted either vertically or horizontally.
Like all Delta Ultraviolet systems, Delta’s propriety High Output (HO) low pressure lamp is capable of 30,000 µ/sec./cm2 output lamp end-of-life (EOL) when design flow rates are maintained. This is the same requirement for Class A drinking water. The long life lamp is rated at 9000 hours of continuous use (approximately 1 year).
Delta UV EA Series Technical data
| Type | Pond Size | Max Pressure | Flow Rate | UV-C Dose | Dia | UV Lamps |
|---|---|---|---|---|---|---|
| Delta UV EA-3H-5 | Up to 1500 gallons | 3 Bar | 2400 lph | 30mJ/cm2 | 75 mm | 1 x 35 watt |
| Type | Pond Size | Max Pressure | Flow Rate | UV-C Dose | Dia | UV Lamps |
|---|---|---|---|---|---|---|
| Delta UV EA-4H-15 | Up to 4500 gallons | 3 Bar | 7600 lph | 30mJ/cm2 | 100 mm | 1 x 55 watt |
| Delta UV EA-4H-20 | Up to 6000 gallons | 3 Bar | 9500 lph | 30mJ/cm2 | 100 mm | 1 x 90 watt |
| Delta UV EA-4H-40 | Up to 7000 gallons | 3 Bar | 10700 lph | 30mJ/cm2 | 100 mm | 1 x 110 watt |
These are Delta UV EA Series Bulb Replacements and the actual units
Delta UV EA Series Quartz Sleeve Replacements
Delta UV EA Series Quartz Sleeve Replacements
A new series of professional Stainless Steel UVC-units for ponds, pools, whirpools etc. The Delta Ultraviolet’s Elektra® Pro Delta Bio-UV series of UV sanitizers have been in production since 1999. These 100% Stainless Steel housing systems have become the “Cadillac” of UV sanitizers for the Koi Pond industry and have gained a reputation second to none for quality, functionality, performance and reliability.
Five different model sizes are available for circulation systems with water flow rates from 800 GPH (3,600 LPH) to 3,450 GPH (15,600 LPH). All models are available in 120V and 240V 50/60 Hz electrical ratings for worldwide application.
Exclusive features, as mentioned above include a 316 stainless steel housing that allows for 360° rotation of the inlet and outlet unions for ease of installation. Another key exclusive feature not commonly found in similar units is the inclusion of unions at each end of the stainless steel housing to facilitate cleaning of the quartz tube, should it be necessary.
As you can clearly see from the image below these UV’s can be mounted either vertically or horizontally.
Like all Delta Ultraviolet systems, Delta’s propriety High Output (HO) low pressure lamp is capable of 30,000 µ/sec./cm2 output lamp end-of-life (EOL) when design flow rates are maintained. This is the same requirement for Class A drinking water. The long life lamp is rated at 9000 hours of continuous use (approximately 1 year).
Delta UV EA Series Technical data
| Type | Pond Size | Max Pressure | Flow Rate | UV-C Dose | Dia | UV Lamps |
|---|---|---|---|---|---|---|
| Delta UV EA-3H-5 | Up to 1500 gallons | 3 Bar | 2400 lph | 30mJ/cm2 | 75 mm | 1 x 35 watt |
| Type | Pond Size | Max Pressure | Flow Rate | UV-C Dose | Dia | UV Lamps |
|---|---|---|---|---|---|---|
| Delta UV EA-4H-15 | Up to 4500 gallons | 3 Bar | 7600 lph | 30mJ/cm2 | 100 mm | 1 x 55 watt |
| Delta UV EA-4H-20 | Up to 6000 gallons | 3 Bar | 9500 lph | 30mJ/cm2 | 100 mm | 1 x 90 watt |
| Delta UV EA-4H-40 | Up to 7000 gallons | 3 Bar | 10700 lph | 30mJ/cm2 | 100 mm | 1 x 110 watt |
Delta UV EA Series Quartz Sleeve Replacements and not the actual units
Oase Bitron C 110 Watt UVC
Oase Bitron C 110 Watt UVC
- Clever bypass system combines high flow rates with duration of radiation
- Permanent self-cleaning thanks to patented cleaning rotor
- Highly effective against suspended algae, bacteria and germs
Oase Bitron C 110 Watt UVC Product characteristics
- Elimination of suspended algae (green water)
- Reduction of harmful bacteria and pathogen levels
- Clever UVC function monitor, display for bulb change and water temperature
- Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
- Individual water flow adjustment for optimal adaptation to the connected filter pump
- Integrated magnets protect the UVC technology against limescale deposits
- Visual function check of the UVC bulb
- 100%, VDE-certified safety; does not cause eye injuries
- Quick release technology for easy bulb replacement
- High-quality workmanship with impact resistant plastic housing
- Incl. high quality UVC bulb
- Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
- Suitable for ponds up to 110.0 m³
Automatic cleaning rotor
The automatic cleaning rotor is continuously guided around the quartz glass tube by the water flow and prevents debris from settling.
Closure technology
Quick release closure for easy opening of the bulb housing. A safety switch deactivates the UVC bulb automatically for protection against eye injury.
Throttle handle
Easy adjustment of the water flow rate.
Inspection window
The function of the UVC bulb can be checked at any time through the inspection window.
Technical data
| Dimensions (L x W x H) | mm | 730 x 215 x 200 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 110 |
| Power cable length | m | 5.00 |
| Net weight | kg | 6.50 |
| Guarantee | Years | 2 |
| UVC power | W | 110 |
| Temperature display | No | |
| Bypass control | manually | |
| UVC-operating hours meter | No | |
| Function check | Visual | |
| Number of inlets | Unit | 1 |
| Connection inlet | mm | 19 / 25 / 32 / 38 / 50 |
| Connection inlet | ¾”, 1″, 1 ¼”, 1 ½”, 2″ | |
| Number of outlets | Unit | 2 |
| Connections, outlet | mm | 25 / 32 / 38 |
| Connections, outlet | 1″, 1 ¼”, 1 ½” | |
| Litres per hour, min. | l/h | 12000 |
| Max. flow rate | l/h | 40000 |
| Max. operating pressure | bar | 1 |
| Suitable for ponds up to max. | m³ | 110.0 |
| Suitable for ponds with fish stock | m³ | 55.0 |
| Suitable for ponds with koi | m³ | 27.5 |
| Connection to | BioTec 30, BioTec ScreenMatic² 90 – 140000, ProfiClear |
Oase Bitron C 24 Watt UVC
Oase Bitron C 24 Watt UVC
- Clever bypass system combines high flow rates with duration of radiation
- Permanent self-cleaning thanks to patented cleaning rotor
- Highly effective against suspended algae, bacteria and germs
Oase Bitron C 24 Watt UVC Product characteristics
- Elimination of suspended algae (green water)
- Reduction of harmful bacteria and pathogen levels
- Clever UVC function monitor, display for bulb change and water temperature
- Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
- Individual water flow adjustment for optimal adaptation to the connected filter pump
- Integrated magnets protect the UVC technology against limescale deposits
- Visual function check of the UVC bulb
- 100%, VDE-certified safety; does not cause eye injuries
- Quick release technology for easy bulb replacement
- High-quality workmanship with impact resistant plastic housing
- Incl. high quality UVC bulb
- Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
- Suitable for ponds up to 25.0 m³
Automatic cleaning rotor
The automatic cleaning rotor is continuously guided around the quartz glass tube by the water flow and prevents debris from settling.
Closure technology
Quick release closure for easy opening of the bulb housing. A safety switch deactivates the UVC bulb automatically for protection against eye injury.
Throttle handle
Easy adjustment of the water flow rate.
Inspection window
The function of the UVC bulb can be checked at any time through the inspection window.
Technical data
| Dimensions (L x W x H) | mm | 440 x 180 x 198 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 24 |
| Power cable length | m | 5.00 |
| Net weight | kg | 3.50 |
| Guarantee | Years | 2 |
| UVC power | W | 24 |
| Temperature display | No | |
| Bypass control | manually | |
| UVC-operating hours meter | No | |
| Function check | Visual | |
| Number of inlets | Unit | 1 |
| Connection inlet | mm | 25 / 32 / 38 |
| Connection inlet | 1″, 1 ¼”, 1 ½” | |
| Number of outlets | Unit | 2 |
| Connections, outlet | mm | 25 / 32 / 38 |
| Connections, outlet | 1″, 1 ¼”, 1 ½” | |
| Litres per hour, min. | l/h | 4000 |
| Max. flow rate | l/h | 15000 |
| Max. operating pressure | bar | 0.5 |
| Suitable for ponds up to max. | m³ | 25.0 |
| Suitable for ponds with fish stock | m³ | 12.5 |
| Suitable for ponds with koi<span class=”sternhochgestellt”> *1</span> | m³ | 6.5 |
| Connection to | BioSmart 18000/36000 |
Oase Bitron C 36 Watt UVC
Oase Bitron C 36 Watt UVC
- Clever bypass system combines high flow rates with duration of radiation
- Permanent self-cleaning thanks to patented cleaning rotor
- Highly effective against suspended algae, bacteria and germs
Oase Bitron C 36 Watt UVC Product characteristics
- Elimination of suspended algae (green water)
- Reduction of harmful bacteria and pathogen levels
- Clever UVC function monitor, display for bulb change and water temperature
- Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
- Individual water flow adjustment for optimal adaptation to the connected filter pump
- Integrated magnets protect the UVC technology against limescale deposits
- Visual function check of the UVC bulb
- 100%, VDE-certified safety; does not cause eye injuries
- Quick release technology for easy bulb replacement
- High-quality workmanship with impact resistant plastic housing
- Incl. high quality UVC bulb
- Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
- Suitable for ponds up to 40.0 m³
Automatic cleaning rotor
The automatic cleaning rotor is continuously guided around the quartz glass tube by the water flow and prevents debris from settling.
Closure technology
Quick release closure for easy opening of the bulb housing. A safety switch deactivates the UVC bulb automatically for protection against eye injury.
Throttle handle
Easy adjustment of the water flow rate.
Inspection window
The function of the UVC bulb can be checked at any time through the inspection window.
Technical data
| Dimensions (L x W x H) | mm | 600 x 180 x 198 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 36 |
| Power cable length | m | 5.00 |
| Net weight | kg | 3.97 |
| Guarantee | Years | 2 |
| UVC power | W | 36 |
| Temperature display | No | |
| Bypass control | manually | |
| UVC-operating hours meter | No | |
| Function check | Visual | |
| Number of inlets | Unit | 1 |
| Connection inlet | mm | 19 / 25 / 32 / 38 / 50 |
| Connection inlet | ¾”, 1″, 1 ¼”, 1 ½”, 2″ | |
| Number of outlets | Unit | 2 |
| Connections, outlet | mm | 25 / 32 / 38 |
| Connections, outlet | 1″, 1 ¼”, 1 ½” | |
| Litres per hour, min. | l/h | 8000 |
| Max. flow rate | l/h | 30000 |
| Max. operating pressure | bar | 0.5 |
| Suitable for ponds up to max. | m³ | 40.0 |
| Suitable for ponds with fish stock | m³ | 20.0 |
| Suitable for ponds with koi<span class=”sternhochgestellt”> *1</span> | m³ | 10.0 |
| Connection to | BioSmart 18000/36000, BioTec ScreenMatic² 40 – 60000 |
Oase Bitron C 55 Watt UVC
Oase Bitron C 55 Watt UVC
- Clever bypass system combines high flow rates with duration of radiation
- Permanent self-cleaning thanks to patented cleaning rotor
- Highly effective against suspended algae, bacteria and germs
Oase Bitron C 55 Watt UVC Product characteristics
- Elimination of suspended algae (green water)
- Reduction of harmful bacteria and pathogen levels
- Clever UVC function monitor, display for bulb change and water temperature
- Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
- Individual water flow adjustment for optimal adaptation to the connected filter pump
- Integrated magnets protect the UVC technology against limescale deposits
- Visual function check of the UVC bulb
- 100%, VDE-certified safety; does not cause eye injuries
- Quick release technology for easy bulb replacement
- High-quality workmanship with impact resistant plastic housing
- Incl. high quality UVC bulb
- Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
- Suitable for ponds up to 60.0 m³
Automatic cleaning rotor
The automatic cleaning rotor is continuously guided around the quartz glass tube by the water flow and prevents debris from settling.
Closure technology
Quick release closure for easy opening of the bulb housing. A safety switch deactivates the UVC bulb automatically for protection against eye injury.
Throttle handle
Easy adjustment of the water flow rate.
Inspection window
The function of the UVC bulb can be checked at any time through the inspection window.
Technical data
| Dimensions (L x W x H) | mm | 600 x 180 x 198 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 55 |
| Power cable length | m | 5.00 |
| Net weight | kg | 4.03 |
| Guarantee | Years | 2 |
| UVC power | W | 55 |
| Temperature display | No | |
| Bypass control | manually | |
| UVC-operating hours meter | No | |
| Function check | Visual | |
| Number of inlets | Unit | 1 |
| Connection inlet | mm | 19 / 25 / 32 / 38 / 50 |
| Connection inlet | ¾”, 1″, 1 ¼”, 1 ½”, 2″ | |
| Number of outlets | Unit | 2 |
| Connections, outlet | mm | 25 / 32 / 38 |
| Connections, outlet | 1″, 1 ¼”, 1 ½” | |
| Litres per hour, min. | l/h | 8000 |
| Max. flow rate | l/h | 30000 |
| Max. operating pressure | bar | 0.5 |
| Suitable for ponds up to max. | m³ | 60.0 |
| Suitable for ponds with fish stock | m³ | 30.0 |
| Suitable for ponds with koi<span class=”sternhochgestellt”> *1</span> | m³ | 15.0 |
| Connection to | BioSmart 18000/36000, BioTec ScreenMatic² 40 – 60000 |
Oase Bitron C 72 Watt UVC
Oase Bitron C 72 Watt UVC
- Clever bypass system combines high flow rates with duration of radiation
- Permanent self-cleaning thanks to patented cleaning rotor
- Highly effective against suspended algae, bacteria and germs
Oase Bitron C 72 Watt UVC Product characteristics
- Elimination of suspended algae (green water)
- Reduction of harmful bacteria and pathogen levels
- Clever UVC function monitor, display for bulb change and water temperature
- Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
- Individual water flow adjustment for optimal adaptation to the connected filter pump
- Integrated magnets protect the UVC technology against limescale deposits
- Visual function check of the UVC bulb
- 100%, VDE-certified safety; does not cause eye injuries
- Quick release technology for easy bulb replacement
- High-quality workmanship with impact resistant plastic housing
- Incl. high quality UVC bulb
- Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
- Suitable for ponds up to 75.0 m³
Automatic cleaning rotor
The automatic cleaning rotor is continuously guided around the quartz glass tube by the water flow and prevents debris from settling.
Closure technology
Quick release closure for easy opening of the bulb housing. A safety switch deactivates the UVC bulb automatically for protection against eye injury.
Throttle handle
Easy adjustment of the water flow rate.
Inspection window
The function of the UVC bulb can be checked at any time through the inspection window.
Technical data
| Dimensions (L x W x H) | mm | 730 x 215 x 200 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 72 |
| Power cable length | m | 5.00 |
| Net weight | kg | 6.44 |
| Guarantee | Years | 2 |
| UVC power | W | 72 |
| Temperature display | No | |
| Bypass control | manually | |
| UVC-operating hours meter | No | |
| Function check | Visual | |
| Number of inlets | Unit | 1 |
| Connection inlet | mm | 19 / 25 / 32 / 38 / 50 |
| Connection inlet | ¾”, 1″, 1 ¼”, 1 ½”, 2″ | |
| Number of outlets | Unit | 2 |
| Connections, outlet | mm | 25 / 32 / 38 |
| Connections, outlet | 1″, 1 ¼”, 1 ½” | |
| Litres per hour, min. | l/h | 12000 |
| Max. flow rate | l/h | 40000 |
| Max. operating pressure | bar | 1 |
| Suitable for ponds up to max. | m³ | 75.0 |
| Suitable for ponds with fish stock | m³ | 37.5 |
| Suitable for ponds with koi | m³ | 19.0 |
| Connection to | BioTec 30, BioTec ScreenMatic² 90 – 140000, ProfiClear |
