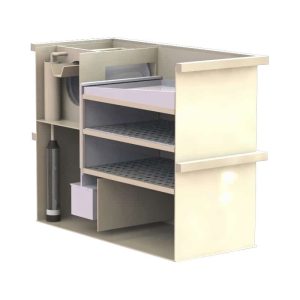

Aqua Source Synergy GT30 Gravity Trickle
Aqua Source Synergy GT30 Gravity Trickle

Aqua Source Synergy GT30 Gravity Trickle

The Synergy GT30 offers an alternative to the standard drum and bio chamber set up, with a combination of the drum and a trickle filter!

Recommended for koi ponds up to 6,600 gallons maximum flow rate 30,000 litres/ 6600 gallons.

The unique concept of the Synergy Gravity Trickle is the gravity setup. All trickle filters must be installed above water level, which is often an aesthetic problem , but not with the GT30!
With a specially designed water level regulator, the water flows on the upper drip plate. As a result, the water is optimally distributed over the underlying material. The weir assembly ensures that the water level remains constant regardless of the capacity of the pond pump.

This design creates the best pre-filtration through the drum screen, and the best biological process through the trickle section. The water breaks continuously and at a high rate, which means that the oxygen uptake in the water is increased. As a result, there is continuous outgassing of ammonium and Co2.

Supplied with 150 litres of Crystal Bio media, which has an extraordinary porous structure . Due to its porous structure, Crystal Bio has an exceptionally large surface area of approximately 18000m2/m3. It also affords Kh buffering properties. Of course, you can use your preferred media, such as our Kano Shower media. With 300 litres of Crystal Bio , approximately 1600 grams/day can be fed.

not rated £4,995.00 inc. VAT Add to basket

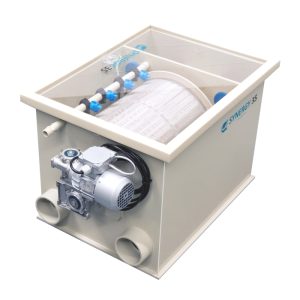

Aqua Source Synergy 35 Drum Filter
Aqua Source Synergy 35 Drum Filter

Aqua Source Synergy 35 Drum Filter

Introducing the Aqua Source Synergy Drum Filters, made by koi keepers, for koi keepers

The Aqua Source Synergy 35 Drum Filter is built to the highest standards and offers ultra efficient mechanical filtration, allowing virtually maintenance free cleaning of your biological filter.

The range of Synergy Drum Filters offer a complete solution for modern filtration, with no extras to pay for. The Synergy Drums come complete with Direct Drive, magnetic safety cut off lid, 5.5 bar flushing pump complete with connections, 210nm ultra reliable motor, pull outs which allow the filter to run even if the motor fails, dry run protection and a pre-wired digital control panel.

Aqua Source Synergy Drum Filters are covered by a 2 year warranty with spare parts available next day from stock for peace of mind.

  • Flow rate of 35,000 litres / 7,700 gallons per hour
  • 2 x 110mm inlets
  • 2 x 110mm outlets
  • Dry run protection
  • 70 micron screen with blanketweed and debris trap on drum
  • 110mm descending waste gutter
  • Fully automatic control panel with optional manual adjustment
  • Control Panel can be controlled remotely through Ethernet connection
  • Lid with safety cut off switch
  • 5.5 bar cleaning pump
  • 210nm ultra reliable motor
  • Direct drive
  • Filter can still be run if the motor fails
  • Full 2 year warranty – excluding screen
  • Dimensions (LxWxH): 728mm x 530mm x 501mm
  • Drum Size (ØxW): 420mm x 415mm
not rated £2,749.99 inc. VAT Add to basket
Aqua Source Synergy 55 Drum Filter
Aqua Source Synergy 55 Drum Filter

Aqua Source Synergy 55 Drum Filter

Introducing the Aqua Source Synergy Drum Filters, made by koi keepers, for koi keepers

The Synergy 55 Drum Filter is built to the highest standards and offers ultra efficient mechanical filtration, allowing virtually maintenance free cleaning of your biological filter.

The range of Synergy Drum Filters offer a complete solution for modern filtration, with no extras to pay for. The Synergy Drums come complete with Direct Drive, magnetic safety cut off lid, 5.5 bar flushing pump complete with connections, 210nm ultra reliable motor, pull outs which allow the filter to run even if the motor fails, dry run protection and a pre-wired digital control panel.

Aqua Source Synergy Drum Filters are covered by a 2 year warranty with spare parts available next day from stock for peace of mind.

  • Flow rate of 55,000 litres / 12,100 gallons per hour
  • 4 x 110mm inlets
  • 2 x 110mm outlets
  • Dry run protection
  • 70 micron screen with blanketweed and debris trap on drum
  • 110mm descending waste gutter
  • Fully automatic control panel with optional manual adjustment
  • Control Panel can be controlled remotely through Ethernet connection
  • Lid with safety cut off switch
  • 5.5 bar cleaning pump
  • 210nm ultra reliable motor
  • Direct drive
  • Filter can still be run if the motor fails
  • Full 2 year warranty – excluding screen
  • Dimensions (LxWxH): 806mm x 776mm x 756mm
  • Drum Size (ØxW): 620mm x 415mm
not rated £3,114.99 inc. VAT Add to basket
Aqua Source Synergy Combi 100 Drum Filter
Aqua Source Synergy Combi 100 Drum Filter

Aqua Source Synergy Combi 100 Drum Filter

Introducing the Aqua Source Synergy Combi Drum Filters, made by koi keepers, for koi keepers

The Aqua Source Synergy Combi 100 Drum Filter is built to the highest standards and offers ultra efficient mechanical filtration, combined with excellent biological filtration, all in one compact unit

The range of Synergy Drum Filters offer a complete solution for modern filtration, with no extras to pay for. The Synergy Drums come complete with Direct Drive, magnetic safety cut off lid, 5.5 bar flushing pump complete with connections, 210nm ultra reliable motor, pull outs which allow the filter to run even if the motor fails, dry run protection and a pre-wired digital control panel. Synergy Combi Filters have a large bio chamber and include the renowned Hel-X filter media for complete biological filtration.

Aqua Source Synergy Drum Filters are covered by a 2 year warranty with spare parts available next day from stock for peace of mind.

  •  Flow rate of 22,000 gallons per hour
  •  8 x 110mm inlets and 3 x 110mm outlet
  •  Dry run protection
  •  Fully automatic Siemens Logo digital control panel, manually adjustable
  •  Lid with safety cut off switch ( Optional Clear Lid at extra cost)
  •  Overflow protection
  •  70 Micron Screen with Blanketweed and debris trap fitted to drum
  •  5.5 bar cleaning pump
  •  210nm ultra reliable motor
  •  Direct drive
  •  Filter can still be run if the motor fails
  •  Bio chamber holds 550 litres of water
  •  200 litres of Hel-X media supplied ( max 275 litres)
  •  Air dome for bio section supplied
  •  Full 2 year warranty (exc Screen)
  •  Dimensions— External with motor and flume: 2380 x 836 x 973mm (LxWxH)
  •  Drum Size— 650mm diameter, 800mm length. (x2)
  •  Maximum Water Height – 825mm
  •  Installation height 14cm above water level of pond
  • Approximate unit weight – 150kg
not rated £6,299.99 inc. VAT Add to basket

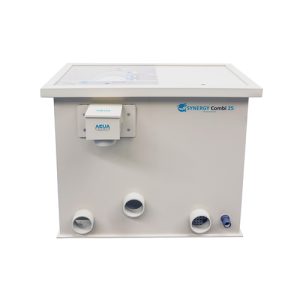

Aqua Source Synergy Combi 25 Drum Filter
Aqua Source Synergy Combi 25 Drum Filter

Aqua Source Synergy Combi 25 Drum Filter

Introducing the Aqua Source Synergy Combi Drum Filters, made by koi keepers, for koi keepers

The Synergy Combi 25 Drum Filter is built to the highest standards and offers ultra efficient mechanical filtration, combined with excellent biological filtration, all in one compact unit

The range of Synergy Drum Filters offer a complete solution for modern filtration, with no extras to pay for. The Synergy Drums come complete with Direct Drive, magnetic safety cut off lid, 5.5 bar flushing pump complete with connections, 210nm ultra reliable motor, pull outs which allow the filter to run even if the motor fails, dry run protection and a pre-wired digital control panel. Synergy Combi Filters have a large bio chamber and include the renowned Hel-X filter media for complete biological filtration.

Aqua Source Synergy Drum Filters are covered by a 2 year warranty with spare parts available next day from stock for peace of mind.

  • Flow rate of 25,000 litres / 5,500 gallons per hour
  • 2 x 110mm inlets
  • 1 x 110mm outlets
  • Dry run protection
  • 70 micron screen with blanketweed and debris trap on drum
  • 110mm descending waste gutter
  • Fully automatic control panel with optional manual adjustment
  • Control Panel can be controlled remotely through Ethernet connection
  • Lid with safety cut off switch
  • 5.5 bar cleaning pump
  • 210nm ultra reliable motor
  • Direct drive
  • Filter can still be run if the motor fails
  • Bio chamber holds 135 litres of water
  • 50 litres of Hel-X media supplied (Max 85 litres)
  • Air curtain for bio chamber supplied
  • Full 2 year warranty – excluding screen
  • Dimensions (LxWxH): 1020mm x 540mm x 780mm
  • Drum Size (ØxW): 420mm x 215mm
not rated £3,549.99 inc. VAT Add to basket
Aqua Source Synergy Combi 35 Drum Filter 4
Aqua Source Synergy Combi 35 Drum Filter

Aqua Source Synergy Combi 35 Drum Filter

Introducing the Aqua Source Synergy Combi Drum Filters, made by koi keepers, for koi keepers

The Aqua Source Synergy Combi 35 Drum Filter is built to the highest standards and offers ultra efficient mechanical filtration, combined with excellent biological filtration, all in one compact unit

The range of Synergy Drum Filters offer a complete solution for modern filtration, with no extras to pay for. The Synergy Drums come complete with Direct Drive, magnetic safety cut off lid, 5.5 bar flushing pump complete with connections, 210nm ultra reliable motor, pull outs which allow the filter to run even if the motor fails, dry run protection and a pre-wired digital control panel. Synergy Combi Filters have a large bio chamber and include the renowned Hel-X filter media for complete biological filtration.

Aqua Source Synergy Drum Filters are covered by a 2 year warranty with spare parts available next day from stock for peace of mind.

  • Flow rate of 35,000 litres / 7,700 gallons per hour
  • 3 x 110mm inlets
  • 2 x 110mm outlets
  • Dry run protection
  • 70 micron screen with blanketweed and debris trap on drum
  • 110mm descending waste gutter
  • Fully automatic control panel with optional manual adjustment
  • Control Panel can be controlled remotely through Ethernet connection
  • Lid with safety cut off switch
  • 5.5 bar cleaning pump
  • 210nm ultra reliable motor
  • Direct drive
  • Filter can still be run if the motor fails
  • Bio chamber holds 450 litres of water
  • 100 litres of Hel-X media supplied (Max 225 litres)
  • Air dome for bio chamber supplied
  • Full 2 year warranty – excluding screen
  • Dimensions (LxWxH): 1770mm x 685mm x 947mm
  • Drum Size (ØxW): 420mm x 415mm
not rated £4,279.99 inc. VAT Add to basket
Aqua Source Synergy Combi 55 Drum Filter
Aqua Source Synergy Combi 55 Drum Filter

Aqua Source Synergy Combi 55 Drum Filter

Introducing the Aqua Source Synergy Combi Drum Filters, made by koi keepers, for koi keepers

The Aqua Source Synergy Combi 55 Drum Filter is built to the highest standards and offers ultra efficient mechanical filtration, combined with excellent biological filtration, all in one compact unit

The range of Synergy Drum Filters offer a complete solution for modern filtration, with no extras to pay for. The Synergy Drums come complete with Direct Drive, magnetic safety cut off lid, 5.5 bar flushing pump complete with connections, 210nm ultra reliable motor, pull outs which allow the filter to run even if the motor fails, dry run protection and a pre-wired digital control panel. Synergy Combi Filters have a large bio chamber and include the renowned Hel-X filter media for complete biological filtration.

Aqua Source Synergy Drum Filters are covered by a 2 year warranty with spare parts available next day from stock for peace of mind.

  • Flow rate of 55,000 litres / 12,100 gallons per hour
  • 4 x 110mm inlets
  • 2 x 110mm outlets
  • Dry run protection
  • 70 micron screen with blanketweed and debris trap on drum
  • 110mm descending waste gutter
  • Fully automatic control panel with optional manual adjustment
  • Control Panel can be controlled remotely through Ethernet connection
  • Lid with safety cut off switch
  • 5.5 bar cleaning pump
  • 210nm ultra reliable motor
  • Direct drive
  • Filter can still be run if the motor fails
  • Bio chamber holds 550 litres of water
  • 200 litres of Hel-X media supplied (Max 275 litres)
  • Air dome for bio chamber supplied
  • Full 2 year warranty – excluding screen
  • Dimensions (LxWxH): 1941mm x 836mm x 973mm
  • Drum Size (ØxW): 650mm x 415mm
not rated £4,809.99 inc. VAT Add to basket
