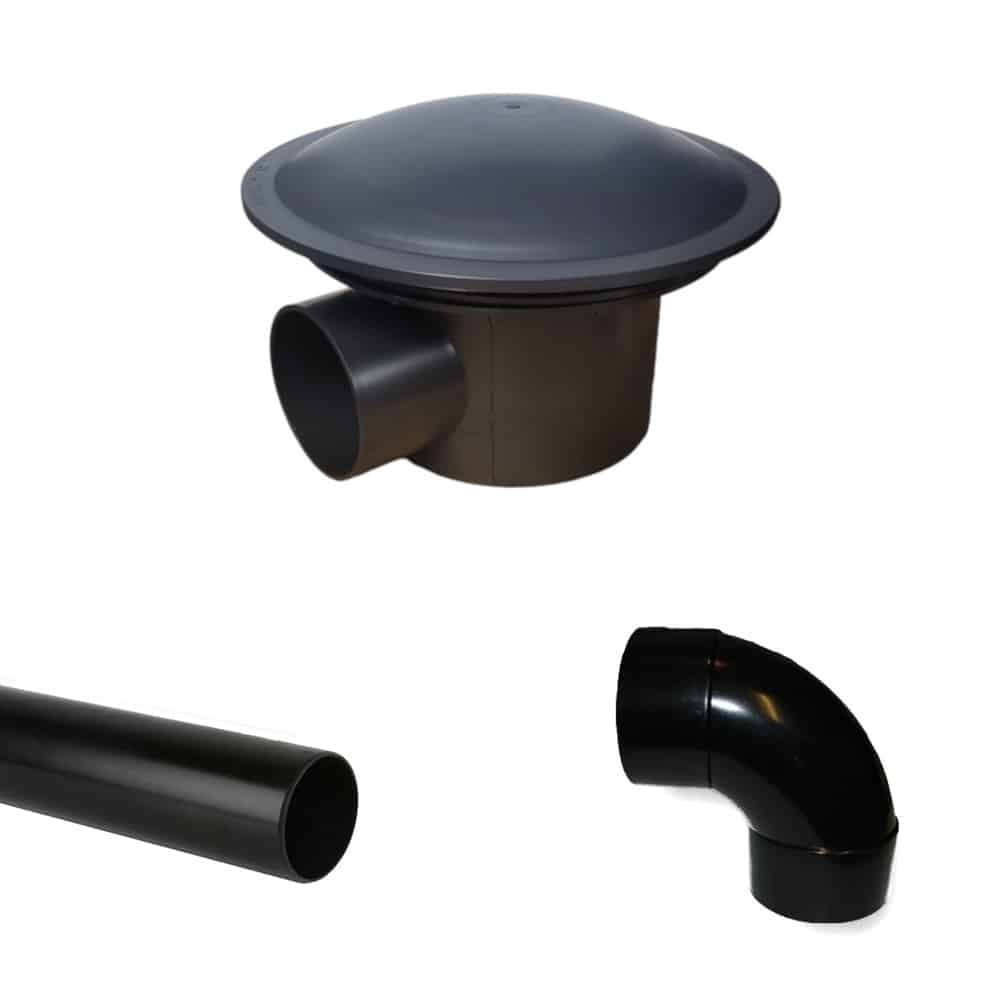

110mm Economy Bottom Drain Kit

4″ SpinDrifter Aerated Bottom Drain Kit

At Cotswold koi We understand that sometimes it can be confusing as to knowing what equipment you require to install a bottom drain, So we have put together this kit which will make your life a 100% easier. We find most filter bays are within a 3,6 or 9 meter distance from the bottom drain location so we have grouped together all the products that you require to install a bottom drain effectively without the headache. You can choose from either 1, 2 or 3 lengths of the required pipework to enable you to achieve most drainage Requirements. Should any further pipe work or fittings be required they can also be added via the pipework section on the website. Read more

3 mtr SpinDrifter Aerated Bottom Drain Kit Includes :

• 1 x 4″ Aerated Bottom drain and Lid Includes direct air feed kit – AP4451

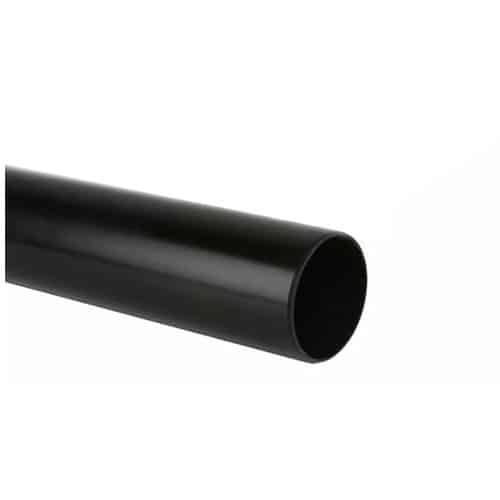

• 1 x 3mtr 4″ pressure pipe – PW7078
• 1 x 3mtr 1″ pressure pipe – PW7601

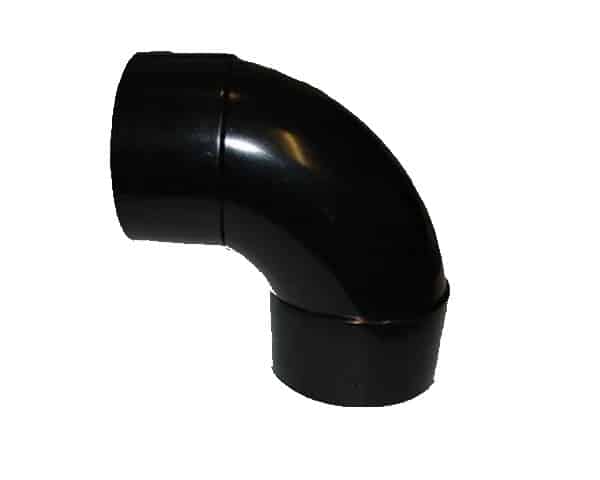

• 1 x 4″ 90 degree pressure swept bend – PW7645
• 1 x 1″ 90 degree pressure bend – PW7088 (07139)

6 mtr SpinDrifter Aerated Bottom Drain Kit Includes :

• 1 x 4″ Aerated Bottom drain and Lid Includes direct air feed kit – AP4451
• 2 x 3mtr 4″ pressure pipe – PW7078
• 2 x 3mtr 1″ pressure pipe – PW7601
• 1 x 4″ 90 degree pressure swept bend – PW7645
• 1 x 1″ 90 degree pressure bend – PW7088 (07139)
• 1 x 4″ Straight joiner – PW7081 (07190)
• 1 x 1″ Straight joiner – PW7603 (07184)

9 mtr SpinDrifter Aerated Bottom Drain Kit Includes :

• 1 x 4″ Aerated Bottom drain and Lid Includes direct air feed kit – AP4451
• 3 x 3mtr 4″ pressure pipe – PW7078
• 3 x 3mtr 1″ pressure pipe – PW7601
• 1 x 4″ 90 degree pressure swept bend – PW7645
• 1 x 1″ 90 degree pressure bend – PW7088 (07139)
• 2 x 4″ Straight joiner – PW7081 (07190)
• 2 x 1″ Straight joiner – PW7603 (07184)

If it’s for a liner installation then a flange kit is required and can be added to your basket separately .

https://youtu.be/-ZGL-HGBnXI

Spindrifter Aerated Bottom Drain

The Spindrifter aerated bottom drain is known worldwide for its quality and design. This Spindrifter aerated bottom drain completely replaces the “Standard Bottom Drain.” The most noticeable feature of the Spindrifter bottom drain is the extra 1 inch DIA Pressure pipe connection in the sump of the drain. This allows the air supply hose to enter the sump independent of the water outlet pipe, thus eliminating the possibility of restriction to the water flow and somewhere else for blanket weed to attach. Read more

Available Sizes:

• 4 inch Bottom Drain For Concrete comes with direct air feed kit
• 3 inch Bottom Drain For Concrete comes with direct air feed kit
• 2 inch Bottom Drain For Concrete

Recommended Air Flow:

• Bottom Drain at around 4/5 feet deep requires a 40lpm Air pump.
