Description
AquaMax Eco Expert 20000 / 12 V

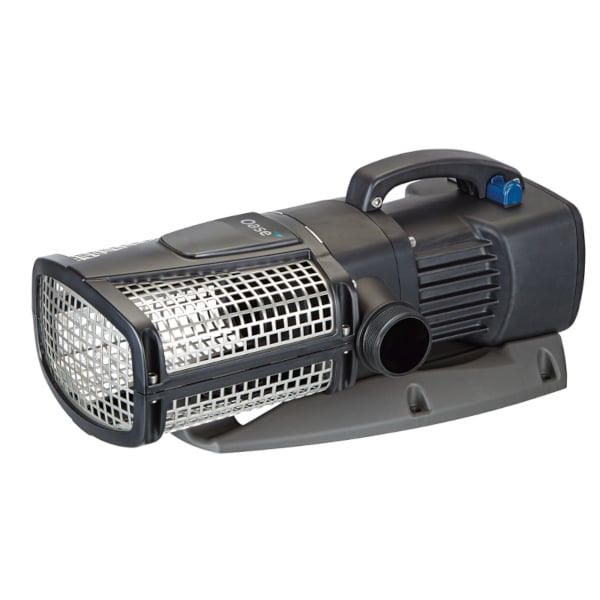

The OASE AquaMax Expert 20000/12 V is a very powerful filter and watercourse pump. With safe 12 V technology, perfect for use in swimming and bathing ponds. It delivers up to 18,600 l / h per hour and has a maximum delivery height of 4.30 m. The OASE AquaMax Expert 20000 has a compact housing made of high-quality plastic with stainless steel elements and is extremely stable. It conveys dirt particles up to 11 mm in size, can be set up dry, can be regulated electronically and is fully suitable for wintering. The OASE AquaMax Expert 20000 does not mind complete freezing. The filter and watercourse pump has a power consumption of max. 260 watts. It is supplied complete with a universal stepped hose adapter from 1 “to 2”. The handle, which is optimally aligned with the center of gravity of the pump, makes it easier to transport and align when setting up. Guarantee 3 years plus 2 years requirement guarantee.
Characteristics:
- New, energy-efficient pump generation for extremely powerful and economic delivery capacity
- AquaMax Eco Expert 20000 / 12 V Perfect for use in demanding filter systems or for large watercourses and waterfalls
- Outstanding displacement of coarse debris up to 11 mm in size
- Robust and durable stainless steel housing for stability
- Unique, patented frost protection: the pump will not be damaged at temperatures down to as -20° C
- Protection against dry run and blocking through Environmental Function Control (EFC by OASE)
- Can be set up underwater & dry
- The pump is unusually quiet in operation; ideal for use in a pump chamber
- Patented »Seasonal Flow Control« for intelligent and environmentally-conscious regulation of flow rate and delivery head
- An additional 30% energy savings is possible with SFC switched on
- MADE IN GERMANY: precise and reliable German engineering at a high level of quality
- With safe 12 V technology perfect for implementation in swim ponds and bathing ponds

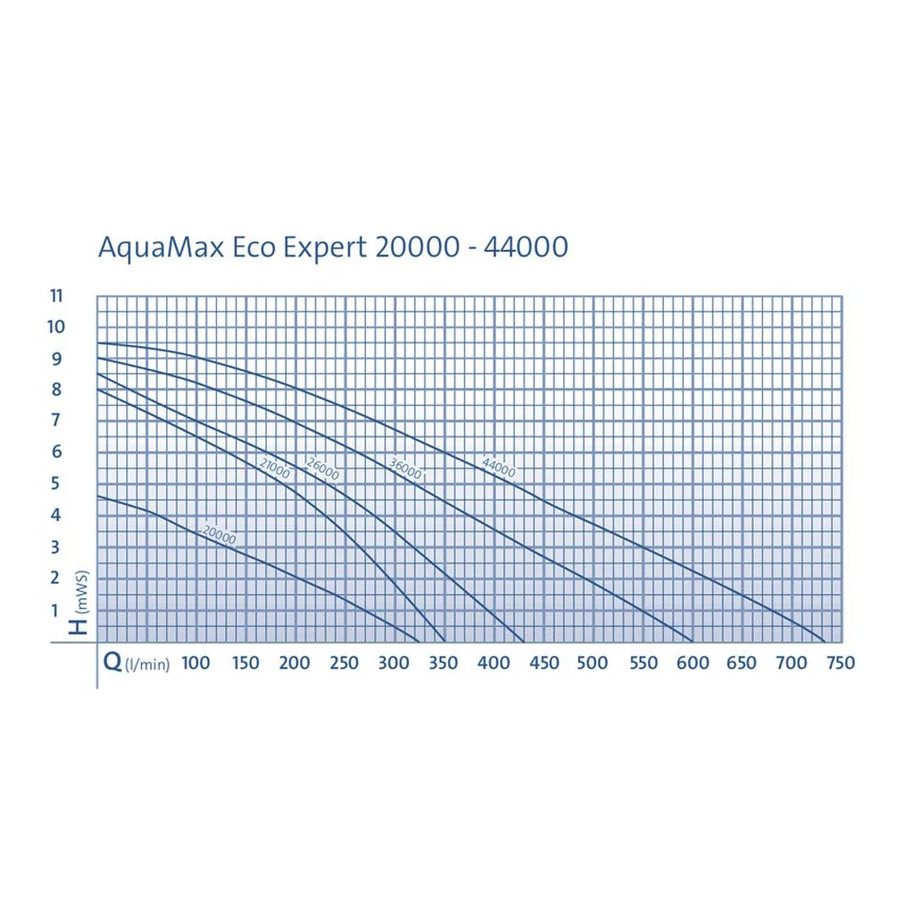

Technical Data
| Dimensions (L x W x H) | mm | 490 x 240 x 210 |
|---|---|---|
| Rated voltage (primary, secondary) | 220 – 240 V / 50 – 60 Hz, 12 V / DC | |
| Power consumption | W | 30 – 260 |
| Power cable length | m | 8.00 |
| Cable length 12 V device (with power unit) | m | 2.50 (Power unit) + 8.00 |
| Net weight | kg | 14.60 |
| Guarantee (+ request guarantee) | Years | 3 + 2 |
| Max. flow rate | l/min | 321 |
| Max. flow rate | l/h | 19300 |
| Max. head height, metres | m | 4.60 |
| Pressure-side connection | mm | 50 |
| Pressure-side connection | 2″ | |
| Suction-side connection | mm | 50 |
| Suction-side connection | 2″ | |
| Hose connection | mm | 38 / 50 |
| Hose connection | 1 ½”, 2″ | |
| Filter intake surface | cm² | 1060 |
| Max. coarse debris displacement | mm | 11 |
| Connection EGC | Yes | |
| Electronic adjustment | Yes | |
| Setup type | Can be set up underwater & dry installed |
