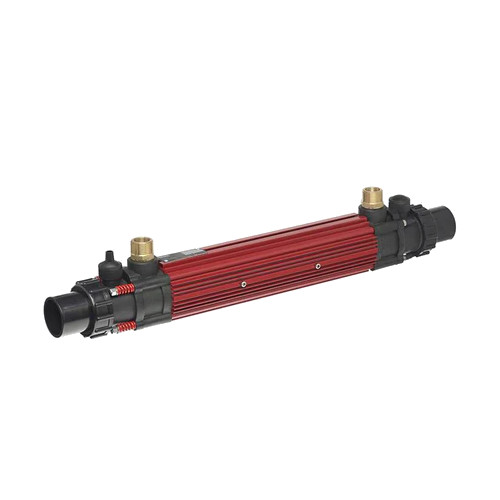

Elecro G2 Titanium Heat Exchangers
Elecro G2 Titanium Heat Exchangers are comprised of a 38-piece Titanium tube bundle, giving a vast surface contact area for the two water circuits. The primary circuit chamber – through which water from the heating source travels, is very narrow ensuring heat is absorbed and replaced with Hot water quickly. These strategic design features enable the Elecro heat exchangers to perform very efficiently even when working with low value Primary temperatures, such as Solar heating systems.
The rigid aluminium jacket encapsulating a pocket of air, thermally insulates the entire unit ensuring that heat is transferred within the desired chamber and absorbed by the swimming pool water, rather than lost to the atmosphere.
Titanium Tube Bundles make the Elecro Heat Exchangers ideal for use on Salt Chlorinated pools.
The unique design and robust construction of the Elecro Generation 2 (G2) Heat Exchanger offers an unrivalled heat transfer surface area, making it one of the most efficient products on the market.
Featuring a densely packed tubular bundle in a thermally insulated primary chamber. The relatively small volume of the chamber and large surface area of the internal tubing provides superb heat transfer efficiency and minimal energy loss, making the G2 the perfect choice for all applications including gas or oil fired boiler circuits, solar panels, heat pumps or chillers.
The G2 is manufactured to the highest specification, using the strongest and most durable materials. The shell is constructed from BS 316L stainless steel (EN 1.4432) and enclosed by a rigid thermal casing for enhanced insulation of the primary water flow, ensuring maximum efficiency.

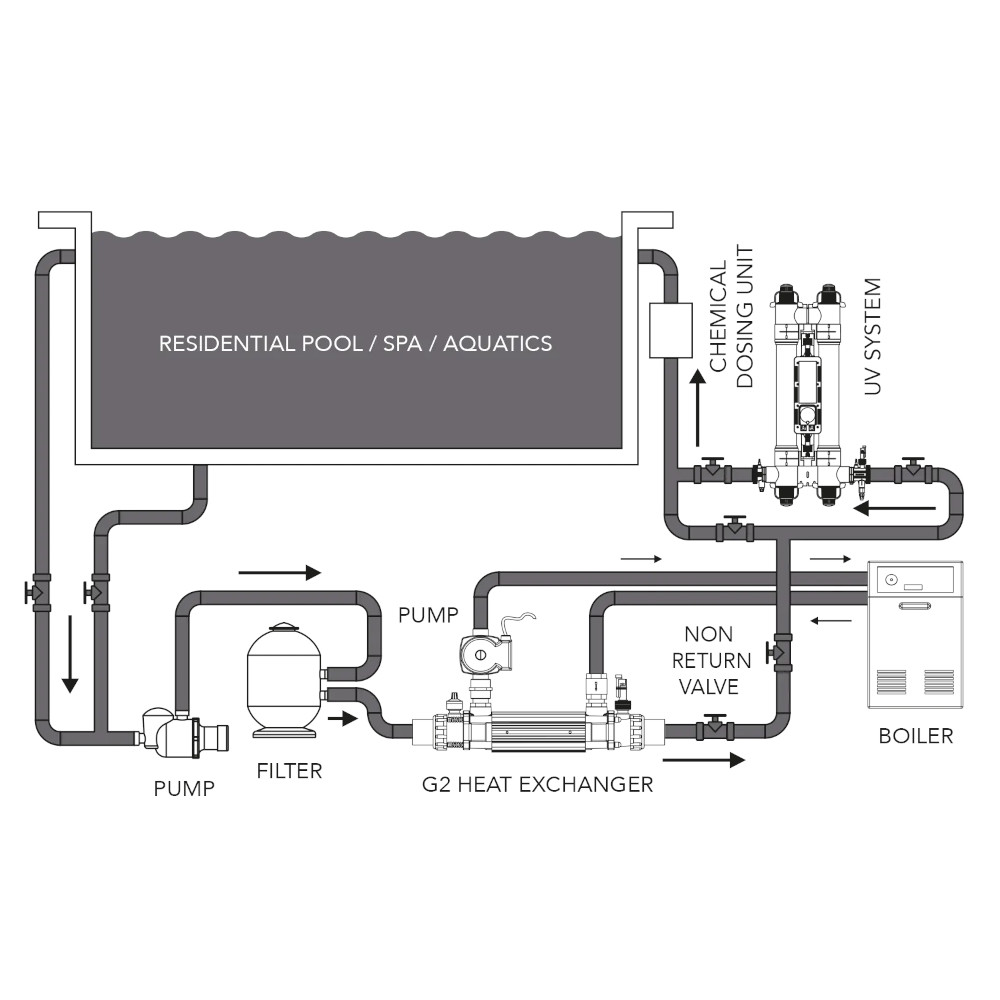

It has been designed to allow the installation engineer to select which way to plumb the primary and secondary water to achieve maximum thermal gain. This is achieved by routing the primary flow in an opposing direction to the secondary (pool) water.
The standard G2 heat exchanger is supplied complete with:
- 2 x 1” male/male brass primary connections
- 1 x 1” non-return valve
- Titanium thermostat pocket
- 1 x Blanking cap & coin gasket (for non-thermostat side)
Features:
- Four models ranging from 30-kW to 122-kW
- Robust, durable construction
- 316 stainless steel shell with special polyamide fittings
- 38 piece titanium internal tube bundle
- For indoor or outdoor pools
- Thermostat pocket
- Solvent weld unions for connection to rigid pipe
- 1.5” connections
- Suitable for salt, chlorinated and solar heated pools
- Available with fully equipped Analogue or Digital control (optional)
- May be floor or wall mounted with the supplied bracket
- BS 316L Stainless Steel shell (EN 1.4432) with special polyamide fittings
- 3-year warranty
Technical Data:

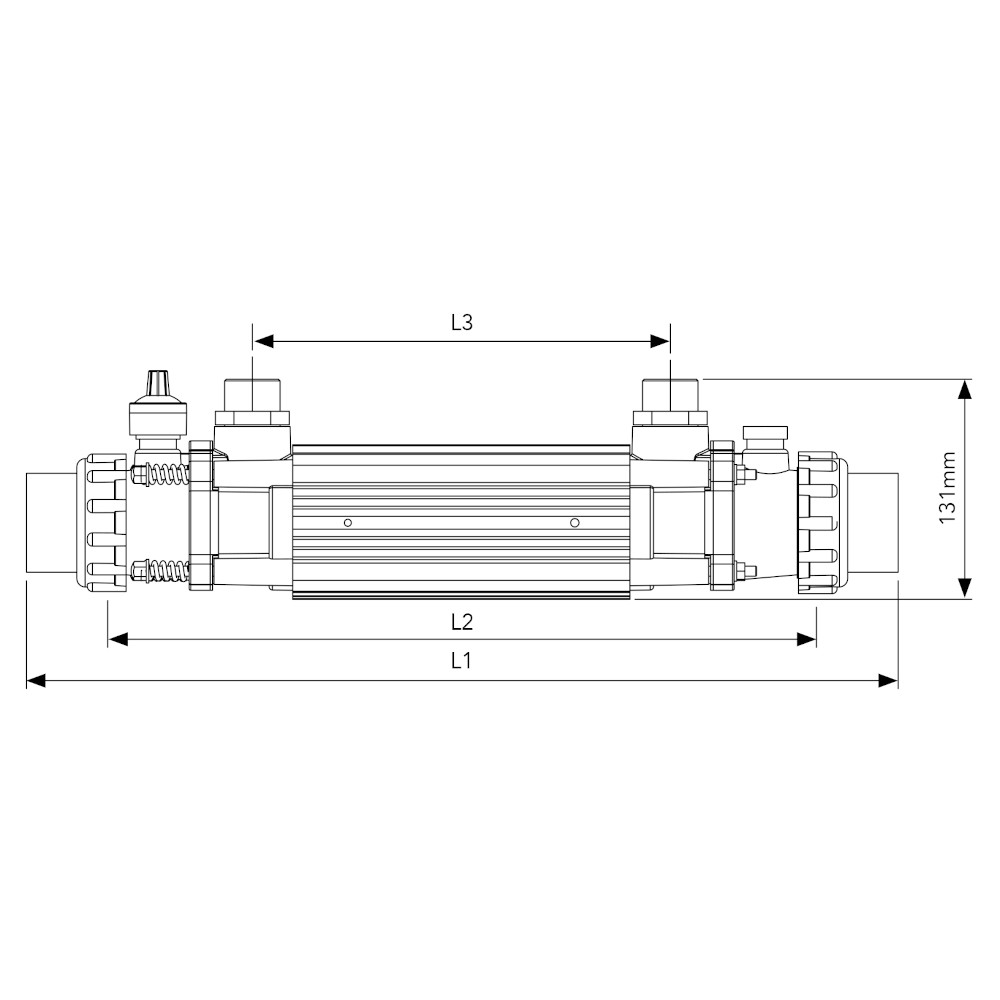

| Product Code: | Standard Power Output: | Dimension ‘L1’ | Dimension ‘L2’ | Dimension ‘L3’ | Net Weight | Gross Weight | Volume | ||||
| [mm] | [mm] | [mm] | [kg] | [kg] | [m³] | ||||||
| G2-HE-30T | 30-kW (102K BTU) | 540 | 426 | 247 | 3.5 | 3.9 | 0.016 | ||||
| G2-HE-49T | 49-kW (167K BTU) | 710 | 596 | 417 | 4.5 | 5.0 | 0.021 | ||||
| G2-HE-85T | 85-kW (290K BTU) | 840 | 726 | 547 | 5.3 | 6.3 | 0.026 | ||||
| G2-HE-122T | 122-kW (416K BTU) | 1000 | 886 | 707 | 6.4 | 7.6 | 0.037 | ||||
