Description

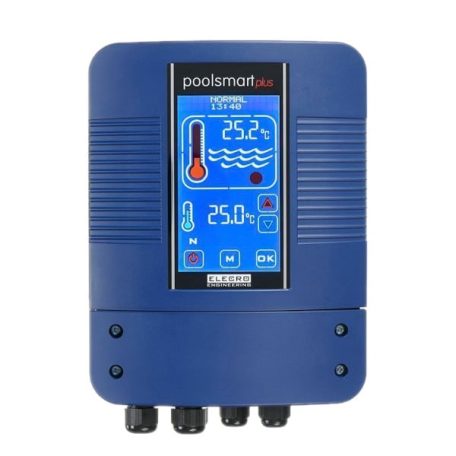

Elecro Poolsmart Plus Heating Controller
The Elecro Poolsmart Plus Heating Controller is the intelligent pool control system that allows you to control and maintain your pool to the perfect temperature as economically as possible. The controller features a digital touch screen display, allowing you to control the functions at a touch of a finger.
The priority heating function allows the controller to override the circulation pumps time clock, switching the circulation pump on and therefore allowing the heating appliance to heat your pool water to the required temperature. The controller will then switch the circulation pump off, ensuring your pool is always maintained at the perfect temperature.
Features & Benefits:
- Smart touchscreen display
- BMS (Building Management System) Integration Ready
- Multi-lingual interface
- Programmable 24-hour time clock (4 time zones)
- Flow and temperature sensor ports
- Accurate control to 0.5°C
- Diagnostic display
Technical Data:
| Power Supply |
Single phase 100-240V |
| Available Models |
Heating only |
| Control Thermostat |
Digital: 0>45°C (0.5°C differential) |
| Temperature Sensor |
3 metre long (thermistor 103AT-2, R25=10K B=3435K) |
| Flow Switch |
3 metre long with gold tipped reed switch with titanium fulcrum pin |
| Ingress Protection Rating |
IP44 |
| Frequency |
50/60 Hz |
| Mounting |
Wall mounting |
