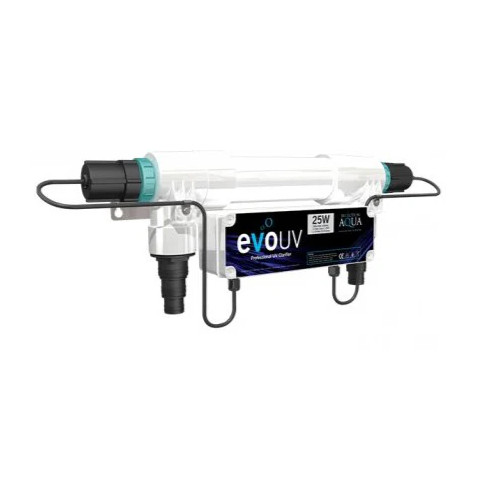

Evolution Aqua Evo UV 25 watt
£124.95 inc. VAT
Evolution Aqua Evo UV 25 watt (2021 Model)
Evolution Aqua’s pond UV clarifiers have been completely re-designed for 2021, to deliver even greater performance and improved serviceability. Our range of six evoUV pond clarifiers are made using the very latest technology and design techniques, ensuring there is even water flow through the unit, and optimum ultraviolet light penetration.
One new feature is the ease of the serviceability of the evo UV. Changing bulbs, quartz sleeves or replacing a failed ballast are quick and simple to do.
The evo UV is simple to install, with universal mounting plates allowing you to fix the unit horizontally or vertically, or at any angle you choose.
The evo UV range of clarifiers have been designed to clear green water which is caused by single celled green algae and prevent it from returning. They will work alongside many different filtration systems but when used alongside Evolution Aqua’s pond filtration systems, the evo UV will help to deliver crystal clear and healthy pond water.
Your evo UV professional quality UV can be connected to your pond pump and filter with flexible hose using the stepped hosetails provided, or you can install the unit using hard pipe.
Features:
- Improves water clarity by eradicating green water
- High output, energy efficient ballast
- Fully serviceable for easy maintenance
- Easy to install
- Available in six models
- 2 year guarantee
Description
Evolution Aqua Evo UV 25 watt (2021 Model)
Evolution Aqua’s pond UV clarifiers have been completely re-designed for 2021, to deliver even greater performance and improved serviceability. Our range of six evoUV pond clarifiers are made using the very latest technology and design techniques, ensuring there is even water flow through the unit, and optimum ultraviolet light penetration.
One new feature is the ease of the serviceability of the evo UV. Changing bulbs, quartz sleeves or replacing a failed ballast are quick and simple to do.
The evo UV is simple to install, with universal mounting plates allowing you to fix the unit horizontally or vertically, or at any angle you choose.
The evo UV range of clarifiers have been designed to clear green water which is caused by single celled green algae and prevent it from returning. They will work alongside many different filtration systems but when used alongside Evolution Aqua’s pond filtration systems, the evo UV will help to deliver crystal clear and healthy pond water.
Your evo UV professional quality UV can be connected to your pond pump and filter with flexible hose using the stepped hosetails provided, or you can install the unit using hard pipe.
Features:
- Improves water clarity by eradicating green water
- High output, energy efficient ballast
- Fully serviceable for easy maintenance
- Easy to install
- Available in six models
- 2 year guarantee
Specifications:
| Model/ Max. pond size | Max. flow rate | Bulb Power | Inlet/Outlet | Fittings supplied | |
15,000 Litres |
7,500 Litres/hr |
15W |
1½” Threaded |
2 x 1½” Hosetails |
|
20,000 Litres |
10,000 Litres/hr |
25W |
1½” Threaded |
2 x 1½” Hosetails |
|
30,000 Litres |
15,000 Litres/hr |
30W |
1½” Threaded |
2 x 1½” Hosetails |
|
55,000 Litres |
20,000 Litres/hr |
55W |
1½” Threaded |
2 x 1½” Hosetails |
|
75,000 Litres |
25,000 Litres/hr |
75W |
1½” Threaded |
2 x 1½” Hosetails |
|
75,000 Litres |
25,000 Litres/hr |
110W |
2″ Glue Pressure |
No Fittings Supplied |
6 reviews for Evolution Aqua Evo UV 25 watt
Only logged in customers who have purchased this product may leave a review.
Q & A
Ask a question
Your question will be answered by a store representative or other customers.
Thank you for the question!
Your question has been received and will be answered soon. Please do not submit the same question again.
Error
An error occurred when saving your question. Please report it to the website administrator. Additional information:
Add an answer
Thank you for the answer!
Your answer has been received and will be published soon. Please do not submit the same answer again.
Error
An error occurred when saving your answer. Please report it to the website administrator. Additional information:
Additional information
| Weight | 2.96 kg |
|---|---|
| Dimensions | 60 × 30 × 10 cm |
