Home » Shop » Pond Filtration » Nexus Filters » Evolution Aqua Nexus 220 Ti Filter
Evolution Aqua Nexus 220 Ti Filter
  • Evolution Aqua Nexus 220 Ti Filter
  • Evolution Aqua Nexus 220 Ti Filter closeup

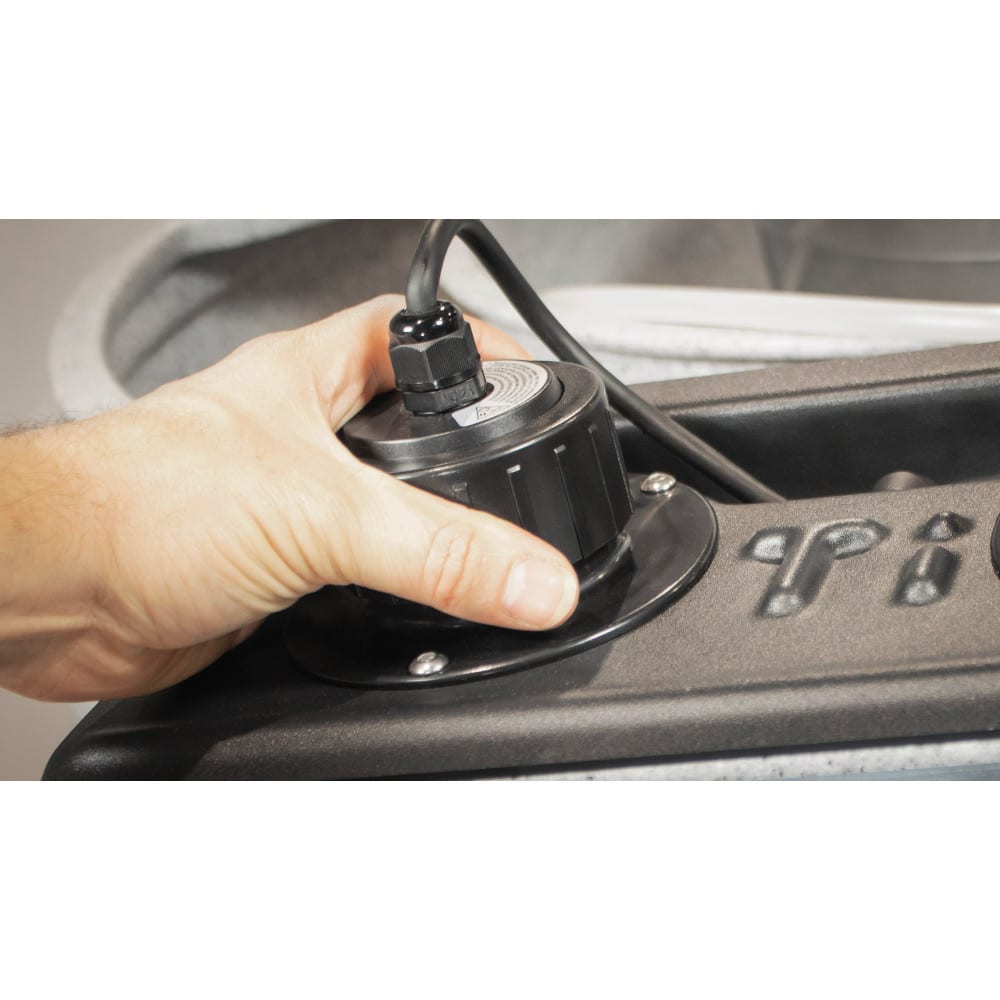

  • NexusTi-UnscrewUVCollar
  • Nexus220Ti Height Dimensions

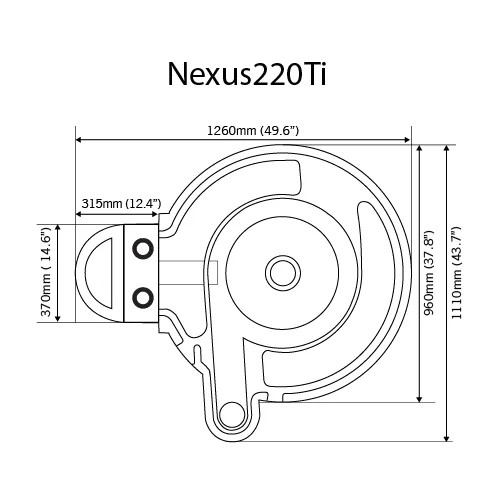

  • Nexus220Ti Dimensions
  • Nexus-Ti-PumpFed Install

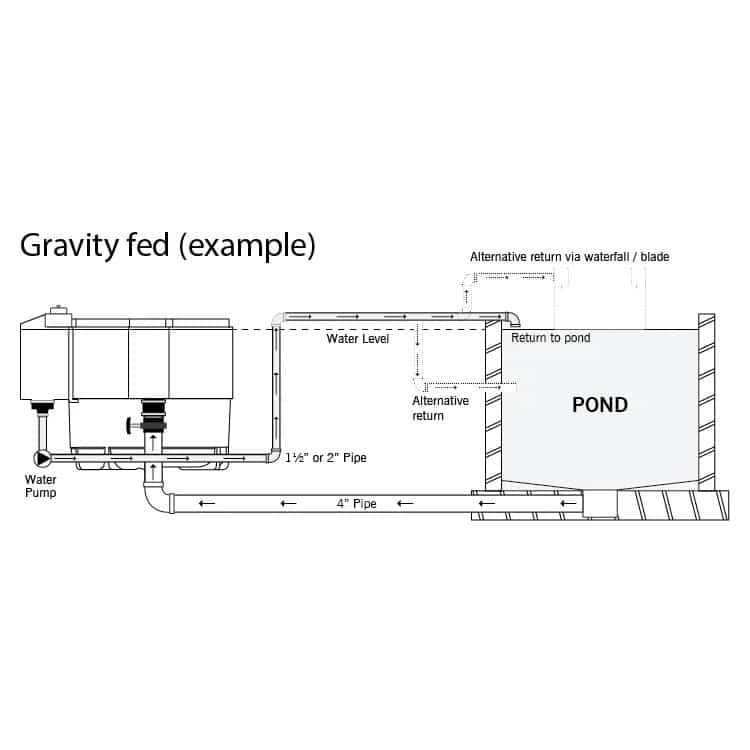

  • Nexus-Ti-GravityFed Install

Evolution Aqua Nexus 220 Ti Filter

£1,845.00 inc. VAT

Evolution Aqua Nexus 220 Ti Filter

The new NexusTi combines Evolution Aqua’s trusted Nexus filtration technology with built-in Titanium-Enhanced UV Clarifiers — delivering crystal-clear, healthy pond water with maximum efficiency and minimal setup. Unlike traditional systems, the UV units are integrated directly into the clean water outlet of the Nexus filter, ensuring optimal UV penetration and enhanced photocatalytic performance. The result? A cleaner, clearer pond with fewer components, simpler plumbing, and less maintenance.

The NexusTi features Evolution Aqua’s proven mechanical and biological filtration process — combining solid waste removal and efficient biological conversion for perfect water balance. Everything you need for exceptional water clarity, in one smart unit. The new Nexus+ filters are also supplied “auto ready”, with factory fitted fixings already in place, making it even easier to upgrade to the Nexus Automatic Cleaning System. Read more

Technical Data:

  • Maximum pond size: 18,000 litres / 4,000 gallons
  • Recommended flow rate: 6,000 litres per hour
  • Maximum flow rate: 10,000 litres per hour
  • Volume of water in Nexus: 510 litres
  • Amount of K1 Micro in EAZY: 18 litres
  • Amount of K+ Media supplied: 50 litres
  • Maximum amount of K+ Media: 150 litres
SKU: Nexus220Ti Category:

Description

Evolution Aqua Nexus 220 Ti Filter

The new NexusTi combines Evolution Aqua’s trusted Nexus filtration technology with built-in Titanium-Enhanced UV Clarifiers — delivering crystal-clear, healthy pond water with maximum efficiency and minimal setup. Unlike traditional systems, the UV units are integrated directly into the clean water outlet of the Nexus filter, ensuring optimal UV penetration and enhanced photocatalytic performance. The result? A cleaner, clearer pond with fewer components, simpler plumbing, and less maintenance.

The NexusTi features Evolution Aqua’s proven mechanical and biological filtration process — combining solid waste removal and efficient biological conversion for perfect water balance. Everything you need for exceptional water clarity, in one smart unit. The new Nexus+ filters are also supplied “auto ready”, with factory fitted fixings already in place, making it even easier to upgrade to the Nexus Automatic Cleaning System.

Smart Design – Maximum Performance

The clarifying chamber integrates Titanium-enhanced UV units to achieve optimal hydraulic performance balancing flow rate, contact time, and water clarity. This advanced design ensures superior UV transmission and faster elimination of green water compared to standard systems.

Clears Green Water Faster

Advanced UV technology removes algae up to 1.5× faster than standard systems, giving you cleaner, clearer pond water quickly while maintaining a healthy aquatic environment.

Significant Savings On Pipework & Fittings

Built-in UV units eliminate the need for separate plumbing and extra fittings, reducing installation costs, simplifying setup, and keeping your pond area neat and uncluttered.

Fully Serviceable

Quick and easy maintenance: replace bulbs or quartz sleeves effortlessly, with all parts readily available from your local EA dealers. The UV units are designed for easy access, making cleaning, maintenance, and replacement simple and efficient.

Technical Data:

Nexus Ti Model Max Pond Size Titanium Enhanced UV Maximum Flow Rate Volume of Water in Nexus Amount of K1 Micro Supplied in Eazy Filter Amount of K+ Media Supplied in Bio Chamber Max. Capacity For K+ Media
220 18,000 L

4,000 G

 2x 36W UVC 10,000 lph

2,200 gph

 510 L

112 G

 18 L 50 L 150 L
320 34,000 L

7,500 G

 2x 55W UVC 13,000 lph

2,859 gph

 840 L

185 G

 20 L 100 L 300 L

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Q & A

Ask a question
There are no questions yet

Additional information

Weight 100 kg
Dimensions 100 × 100 × 100 cm
