Home » Shop » Air Pumps » Medo LA100-A Air Pump

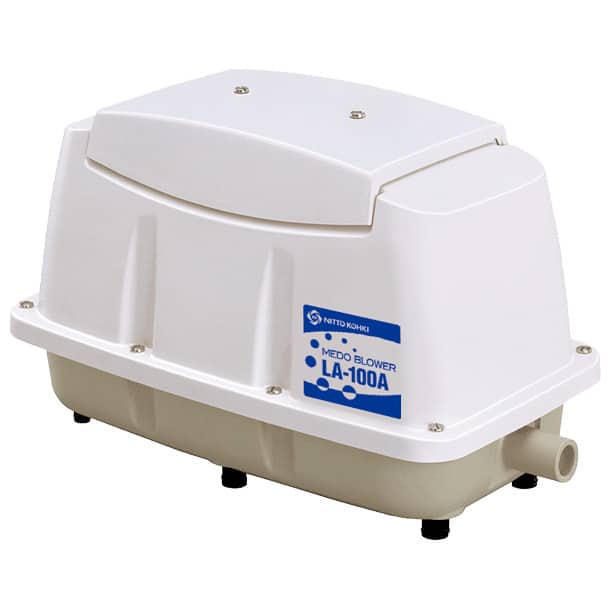

Medo LA100-A Air Pump
  • Medo LA100-A Air Pump
  • Medo LA100-A Air Pump technical data

Medo LA100-A Air Pump

£406.99 inc. VAT

Medo LA100-A Air Pump

The Medo LA100-A Air Pump has a linear-motor-driven free piston system has an internal piston inside the cylinder which is driven by an electro-magnet and spring system controlled by the alternating input current cycle. The Medo Air Pumps piston forms a single combined structure of two usually different devices; motor and pump. The Medo Air pumps are quiet and vibration free, and offers the advantages of easy maintenance and a long operating life.

The Medo Air Pumps unique and simple structure has no complicated transmission mechanism such as a crankshaft, connecting rods, ball bearings, etc., which are widely used in between the motor and compressor in conventional pumps. Read more

SKU: AP377 Category:

Description

Medo LA100-A Air Pump

The Medo LA100-A Air Pump has a linear-motor-driven free piston system has an internal piston inside the cylinder which is driven by an electro-magnet and spring system controlled by the alternating input current cycle. The Medo Air Pumps piston forms a single combined structure of two usually different devices; motor and pump. The Medo Air pumps are quiet and vibration free, and offers the advantages of easy maintenance and a long operating life.

The Medo Air Pumps unique and simple structure has no complicated transmission mechanism such as a crankshaft, connecting rods, ball bearings, etc., which are widely used in between the motor and compressor in conventional pumps.

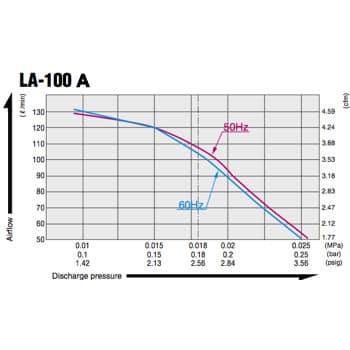

Technical Data:

Power Supply: 230 V
120 V
Rated Frequency: 50 Hz
60 Hz
Rated Pressure: 0.18 bar
Operating Power Range: 0,05-0,3 bar
Airflow at Rated Pressure: 100 l/min
Power Consumption: 100 W
95 W
Weight: 9.4 kg

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Manual





Medo Air Pump.pdf

Q & A

Ask a question
There are no questions yet

Shipping Rules

We have several different ways of shipping available on our website for you to select when you go through to checkout

  • We use Evri for our Economy Service this can take between 2 and 5 days. This service starts from £4.90. Evri collect from us on a Monday and Thursday which is a Tuesday and Friday delivery to you
  • We use DPD and DX for our premium/standard service which is a next working day delivery this service price starts from £7.95. This is collected from us Monday through to Friday, We cannot Guarantee it will be a next day as it is courier dependant
  • We use Dx Freight for our standard large service for things like pipe lengths and larger items This service is £19.95. This is on a next working day delivery and is Monday through to Friday.
  • We use APC for our Fish delivery service this service is £35. This is an overnight service. Koi will be scheduled to arrive between 8.00am – 12:00 midday. You also MUST be in to sign for the koi. Delivery days are Wednesday, Thursday & now Fridays and will always be pre arranged with you
  • Some larger items and bespoke items are dropped shipped to speed up delivery
  • We also ship from our suppliers this is to speed up delivery
  • We also offer Free Delivery on orders over £100 excluding lengths of pipe and live fish
  • Live fish are sent with APC and have a price of £35.00. More than 1 Koi can fit in a box
  • All our shipping companies do give us tracking information that you should receive by email this includes any orders we drop ship.

Additional information

Weight 5 kg
Dimensions 30 × 20 × 20 cm
