Description

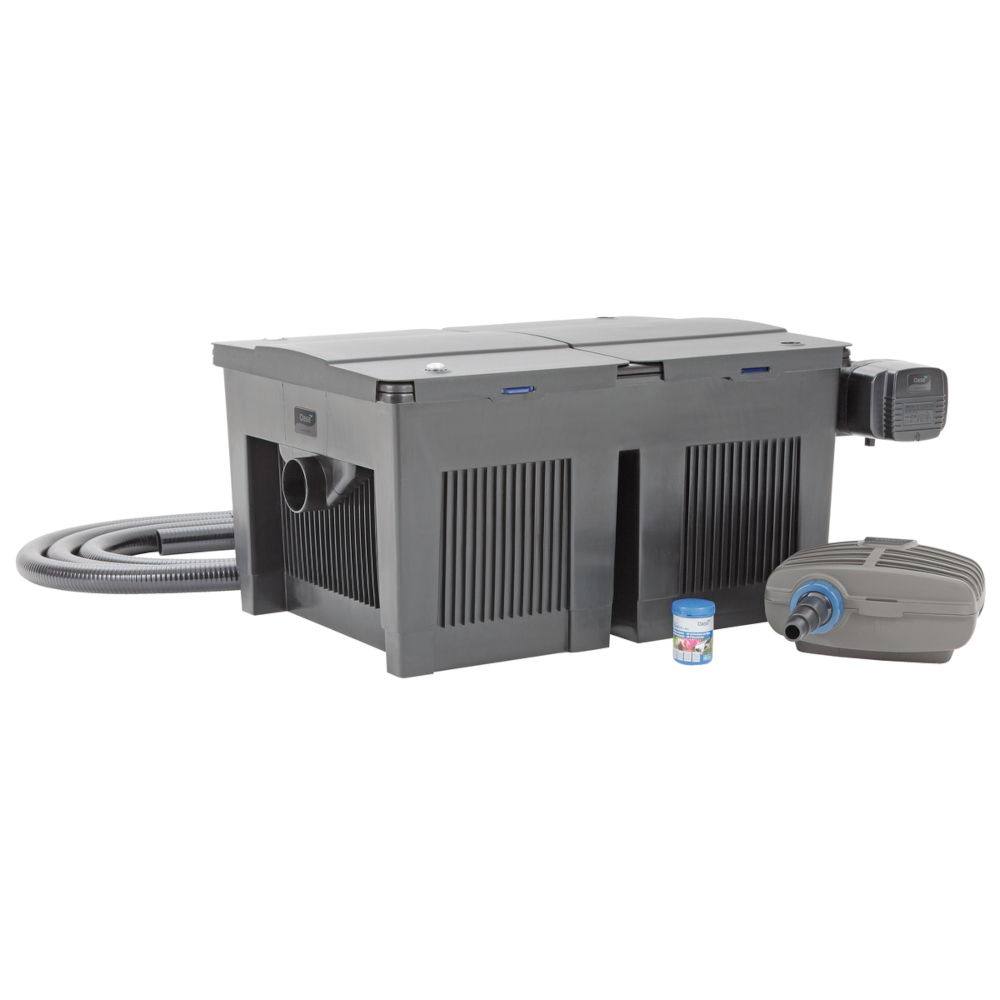

Oase BioSmart Set 36000
The Oase BioSmart Filters are The ideal introduction to proven OASE filter technology. The OASE BioSmart filter ensures clear and healthy pond water thanks to the combination of a large filter foam surface and integrated UVC technology (biological-mechanical cleaning). UVC technology for safe elimination of algae and pathogens. Oxygen enrichment through special water channelling. The proven cleaning handles enable convenient filter foam cleaning, without removal from the filter. The integrated pollutant level indicator signals the right time for cleaning. Integrated sludge drain for simple removal of coarse debris from the filter. Water temperature display. The filter can be recessed into the ground up to 1/3 of its height. Ideally matched to the OASE Aquamax Eco pond pump.
Features:
- Reliable and flexible implementation – entry-level flow-through filter
- Easy maintenance thanks to cleaning handles and bottom drain
- Pollutant level indicator and temperature indicator for convenient filter monitoring
Characteristics:
- Incl. OASE Clear Water Guarantee
- Oxygen enrichment through special water channelling
- Cleaning handles for convenient maintenance
- Including displays for pollutant level and water temperature
- Sludge drain for easy removal of coarse debris
- Easy to conceal; the filter can be recessed into the ground to ⅓ of its height
- Filters and pumps are optimally matched
- Suitable for ponds up to 36.0 m3
- Combination of mechanical biological cleaning and effective UVC technology
- Incl. 100 ml BioKick Filter Starter* only BioSmart Set 18000 – /36000
- Included in the scope of delivery: Vitronic UVC 36 W; 5 m 1 ½” (38 mm) hose and AquaMax Eco Classic 11500: 100 W; 11000 l/h Qmax; 3.3 m Hmax
Technical Data:
| Net weight | kg | 21.50 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption UVC | W | 36 |
| Power cable length UVC | m | 5.00 |
| Guarantee | Years | 2 |
| UVC power | W | 36 |
| Number of filter foams, total | Units | 9 |
| Number of blue filter foams | Units | 4 |
| Number of red filter foams | Units | 4 |
| Number of green filter foams | Units | 1 |
| Inlet connections | mm | 19 / 25 / 32 / 38 / 50 |
| Inlet connections | ¾”, 1″, 1 ¼”, 1 ½”, 2″ | |
| Outlet connections | DN 75 | |
| Sludge discharge connections | DN 50 | |
| Power consumption pump | W | 100 |
| Max. flow rate | l/h | 11500 |
| Power cable length pump | m | 10.00 |
| Suitable for ponds up to max. | m3 | 36.0 |
| Suitable for ponds with fish stock | m3 | 18.0 |
| Suitable for ponds with koi | m3 | 9.0 |
