Description

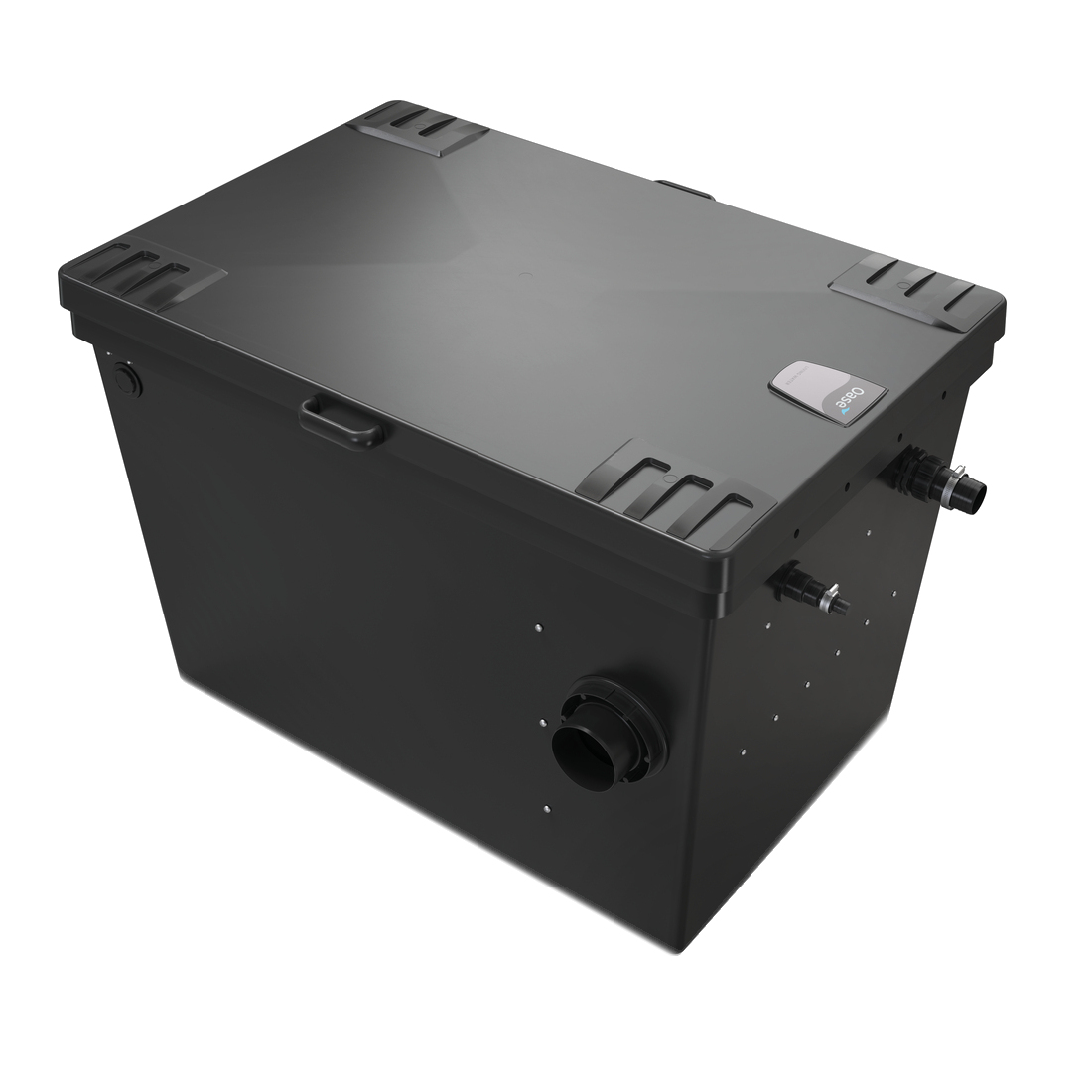

Oase Biotec Screenmatic2 145000
OASE German Engineers have completely overhauled the highly successful BioTec 36 ScreenMatic filter and have released the innovative BioTec ScreenMatic² 145000 Pond Filter. This large, compact gravity outlet, flow-through filter box features an automated pre-filter conveyor which will screen out larger debris and transport this on a porous conveyor belt to a large collection basket for periodic emptying. The new Screendrive mechanism is now fully automated via a special cleaning sensor which controls the belt functions depending on the dirt level detected on the porous belt. Only small particles pass through the ScreenMatic drive belt where the large surface area biological/mechanical filter foams will trap and break down the organic waste. This innovative mechanism places far less biological load on the filter foams, meaning less maintenance and crystal clear water quality in ornamental, Goldfish and Koi ponds alike.

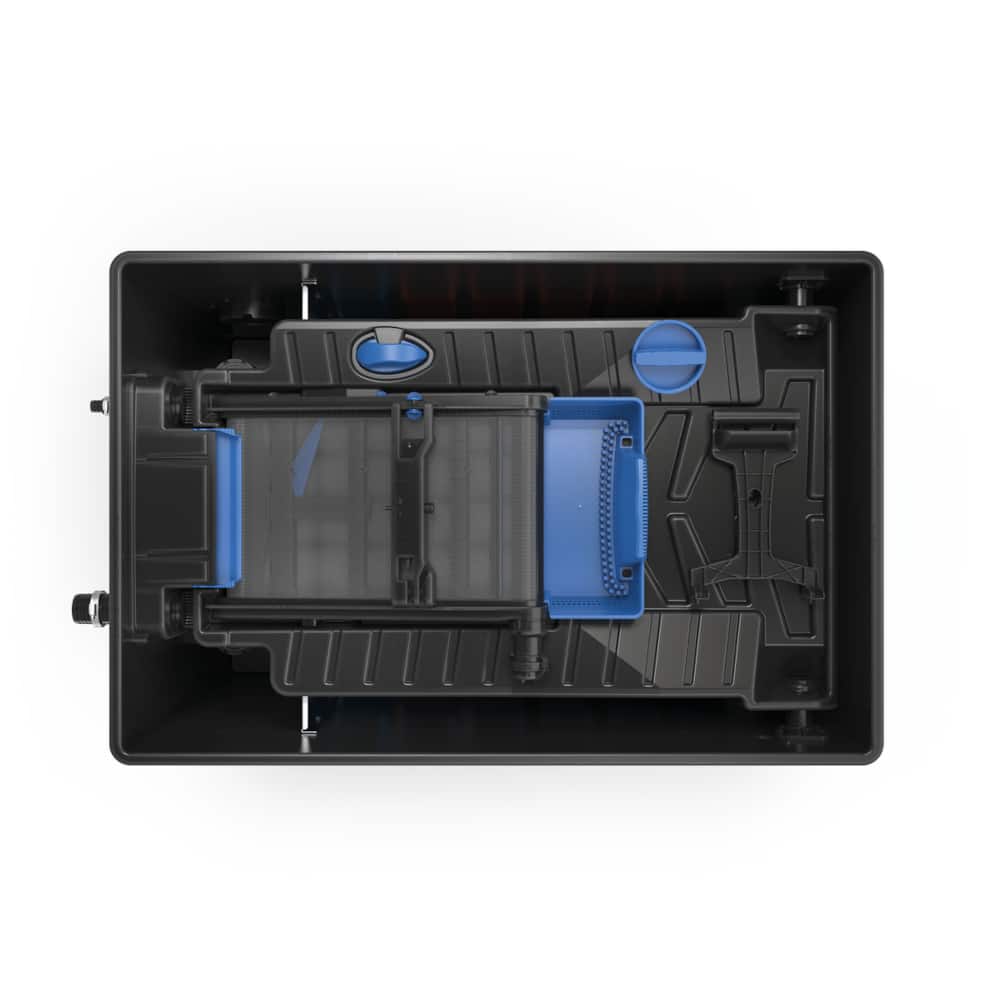

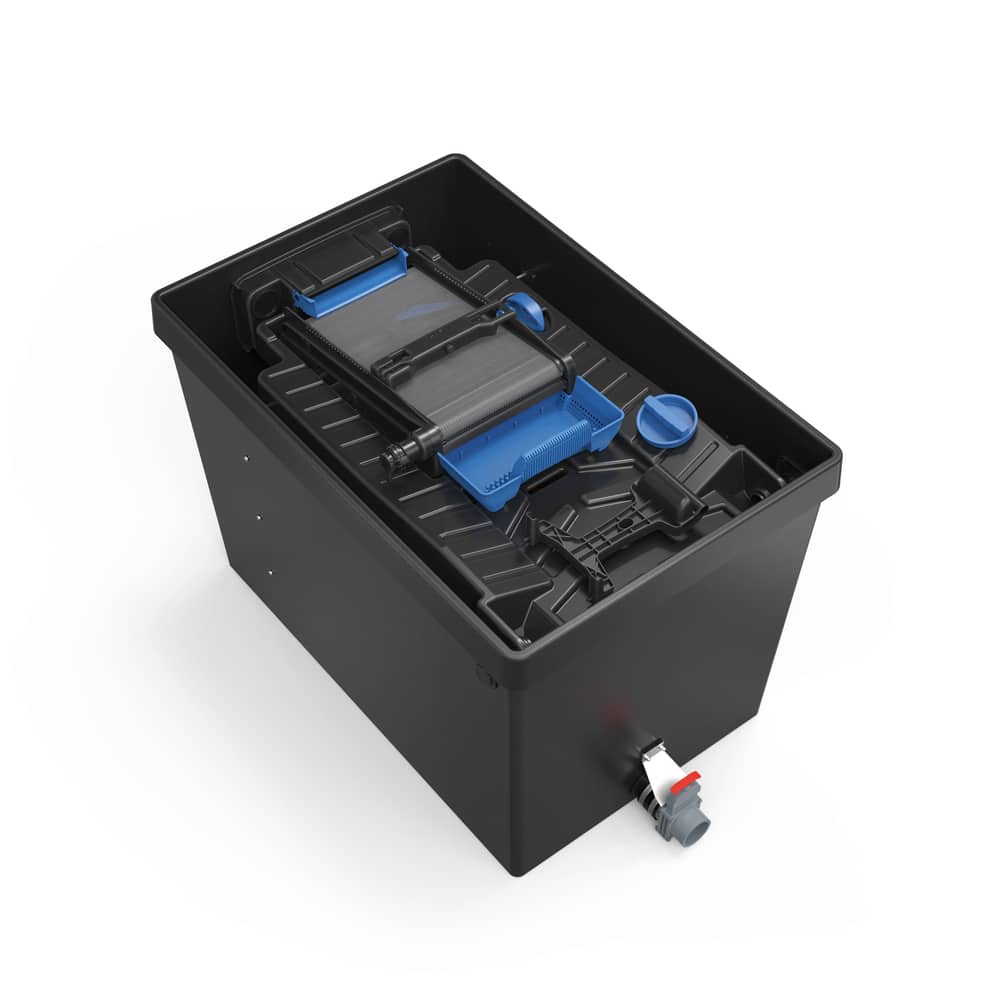

The OASE BioTec ScreenMatic² 145000 is a large, intelligent, flow-through pond filter that provides automated mechanical waste removal and biological filtration. The water enters the filter via a flow spreader onto a 300 micron fabric belt which strains out solid waste particles. When sufficiently soiled, a sensor engages the motor which performs a cleaning cycle, transferring the accumulated waste into a collection tray below the screen. The control display also allows instant cleaning cycles at the press of a button. The waste sensor can be adjusted backward and forward to alter cleaning regularity based on waste accumulation. A cleaning brush is supplied to keep the fabric screen free of entrapped dirt.

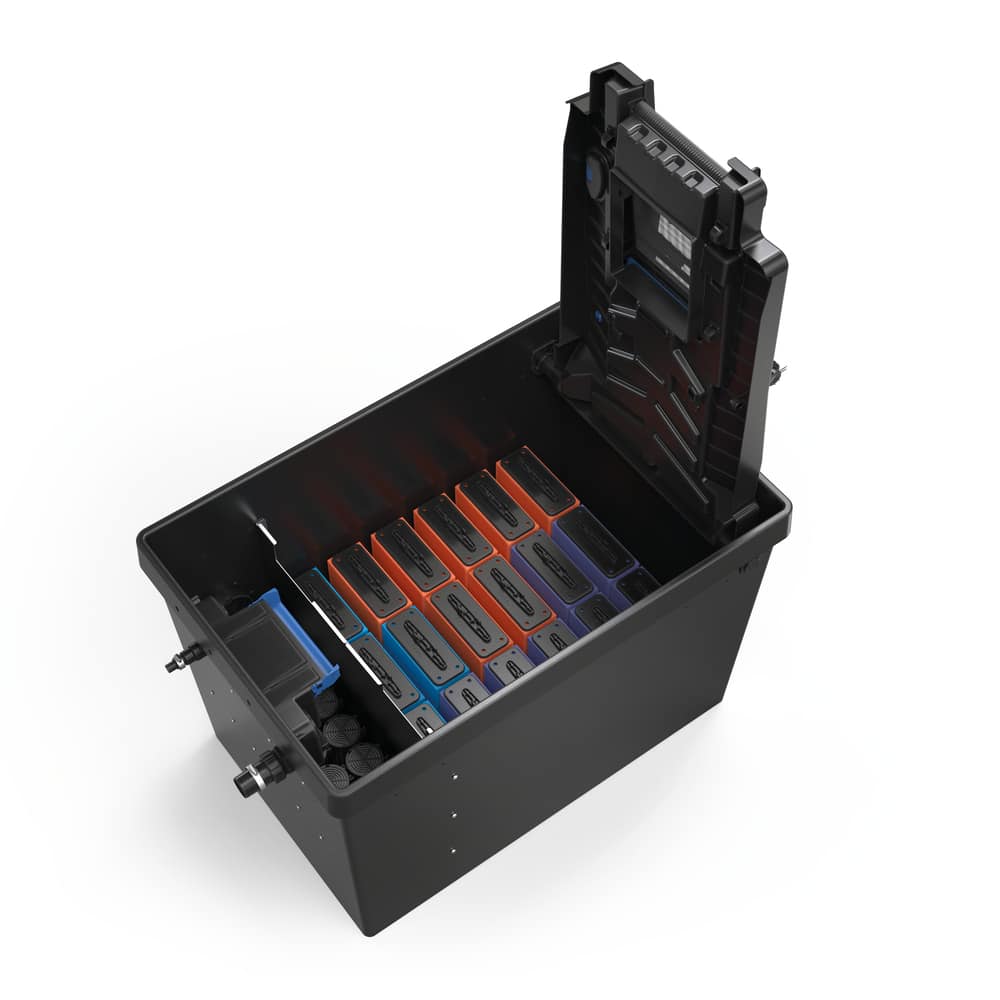

After mechanical straining, water enters the the biological media, a series of 18 large filter sponges differing in coarseness. The blue foams are rough, violet are medium fine and red are very fine grade. These sponges provide an abundance of surface for aerobic bacteria to populate and breakdown soluble waste pollutants. Cleaning the foams is made easy by the compression handle used to push down on the foams to release any build up of organic waste. Water is then directed through 12 cartridges containing 14.5kg of granulate media (zeolite), binding unwanted nutrients and trace ammonia before returning water to the pond.
Features:
- Incl. OASE Clear Water Guarantee
- Significantly less maintenance is required, thanks to coarse debris extraction
- More convenience, thanks to automatically driven self cleaning of the belt filter. Adjustable cleaning Sensor controls the belt run, depending on the degree of pollution. Incl. LED function check
- Cleaning of filter sponges directly in the filter, without removal
- Sludge drain with slide valve for removing debris from the filter system
- Different filter media for optimal development of filter bacteria
- Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
- Optimally matched to OASE AquaMax Eco filter pumps
- Direct connection possibility for Bitron C and Eco UVC clarifiers
- Reinforced strap material for an extended service life
- Double-sealed motor for an extended service life
- Water distributor without danger of clogging: Distributes the water uniformly on the belt filter
- Sludge basket with greater volume and simplified handling
- Rubberised separating lip for outstanding separation result
- Free brush for occasional cleaning of the belt filter
- Manual belt run now possible via button
- Highly effective flow-through filter for ponds up to 140.0 m³
Technical Data:
| Dimensions filter (L x W x H) | mm | 1334 x 891 x 815 |
|---|---|---|
| Net weight | kg | 110.00 |
| Rated voltage (primary, secondary) | 230 V / 50 Hz, 12 V / AC | |
| Power consumption | W | 5 |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| Guarantee UVC | Years | 2 |
| Number of filter foams, total | Units | 18 |
| Number of blue filter foams | Units | 4 |
| Number of red filter foams | Units | 7 |
| Number of purple filter foams | Units | 7 |
| Special filter granulate | kg | 14.50 |
| Temperature display | No | |
| Connection inlet filter | mm | 25 / 38 / 50 |
| Connection inlet filter | 1″, 1 ¼”, 1 ½” | |
| Connections, outlet filter | 2″, DA 110 | |
| Sludge discharge connections | DN 75 | |
| Max. flow rate | l/h | 17500 |
| Suitable for ponds up to max. | m3 | 145.0 |
| Suitable for ponds with fish stock | m3 | 70.0 |
| Suitable for ponds with koi | m3 | 35.0 |
| Connection to | Bitron C 36 – 110 W, Bitron Eco 120 – 240 W |
