Description

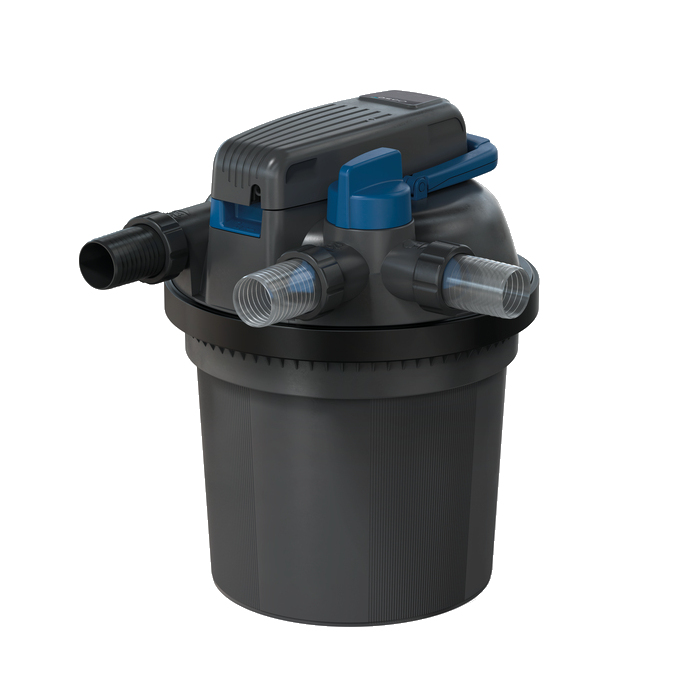

Oase Filtoclear 13000
Oase FiltoClear 13000 is a filter performance at the cutting edge. OASE premium technology meets architectural garden pond and trendy stream. As all operating elements are integrated in the lid, the pressure filter made of high-quality plastic can be buried in the ground and optimally integrated into the pond landscape. The perfect clear water result: The basic model FiltoClear 13000 (380 mm × 510 mm) cleans ponds up to 13,000 litres highly effectively thanks to finely structured filter sponges and a powerful 24 W UV-C lamp. With its high flow rate based on OASE bypass technology (8,000 l/h), any blockages in the filter are a thing of the past. The easy-to-use pull mechanism makes cleaning the filter convenient. Even the UV-C lamp can be changed quickly and easily during operation. OASE quality with up to three years guarantee.
Features:
- Four clearly defined models for pond sizes with a volume of water ranging from 5000 to 31,000 litres – with and without fish stock
- New pull-out mechanism that allows filter sponges to be conveniently cleaned without having to get dirty or disassemble the whole filter
- UVC housing with increased UV performance and simple lamp replacement while the filter is running
- UV cleaning rotor automatically cleans the quartz glass surrounding the UVC lamp – from FiltoClear 19000 onwards
- OASE Bypass technology ensures constant water flow and prevents clogging
- Three filter foams (instead of the two previously) for even more thorough cleaning – from FiltoClear 13000 onwards
- New clamping ring to make opening and closing the filter even easier
- Robust construction and materials ensure long service life
Characteristics:
- POND FILTER: Patented cleaning mechanism with optimised filter sponges
- CONVENIENT: Easy to maintain and clean thanks to simple handle mechanism
- CONVENIENT LAMP CHANGE: The UV lamp can be changed while the unit is running – no need to switch off the filter, no need to dismantle the quartz glass
- PROTECTED: The high-quality UVC housing protects the ballast unit from sunlight and moisture
- POWERFUL: All latest generation FiltoClear models feature upgraded, highly effective UV lamps
- 2-WAY VALVE: Choose whether the water flows into the pond or into the waste water after cleaning the filter
- IMPROVED EFFICIENCY: The built-in OASE bypass technology ensures optimum water flow and prevents the filter from clogging
- STABLE AND ROBUST: The hard-wearing housing made of high-quality plastic can be easily buried in the ground and impresses with its long durability.
- UNDER PRESSURE: The metal clamping ring with simple lever function makes opening and closing a FiltoClear safer and easier than ever before
Technical Data:
| Filtoclear model |
5000
|
13000
|
19000
|
31000
|
||
| Dimensions in mm (Ø x H) |
380 x 310
|
380 x 510
|
380 x 630
|
380 x 750
|
||
| Hose connections (Inlet / Outlet and Sludge Outlet – fitting supplied) |
1 1/2″ (38mm) / 2″ (50mm)
|
|||||
| Max Pump Capacity (litres/hour) |
5000
|
8000
|
12000
|
15600
|
||
| Maximum operating pressure |
5 metres (0.5 bar)
|
|||||
| Pollutant Indicator |
Yes
|
|||||
| Integral Ultraviolet Clarifier (UVC) 230 volts |
18 watts
|
24 watts
|
42 watts
|
60 watts | ||
| Voltage |
230 V / 50 Hz
|
|||||
| UVC cable length |
5 metres
|
|||||
| Qty of coarse filter foams (blue) |
–
|
1
|
2
|
2
|
||
| Qty of medium filter foams (purple) | 1 | 1 | 1 | 1 | ||
| Qty of fine filter foams (red) |
1
|
1
|
1
|
2
|
||
| Max. volume for ponds without fish |
5000 L
|
13000 L
|
19000 L
|
31000 L
|
||
| Max. volume for ponds with goldfish |
2500 L
|
7000 L
|
10000 L
|
15000 L
|
||
| Max. volume for ponds with Koi Carp |
–
|
–
|
5000 L
|
7500 L
|
||
| Supplied Pump (FiltoClear SETS only) | AquaMax Eco Premium 5000 OC | AquaMax Eco Premium 9000 OC | AquaMax Eco Premium 13000 OC | AquaMax Eco Premium 17000 OC | ||
| Guarantee | Standard 2 year, which can be increased, free of charge, to 3 years by completion and return of the corresponding request card. | |||||
