Description

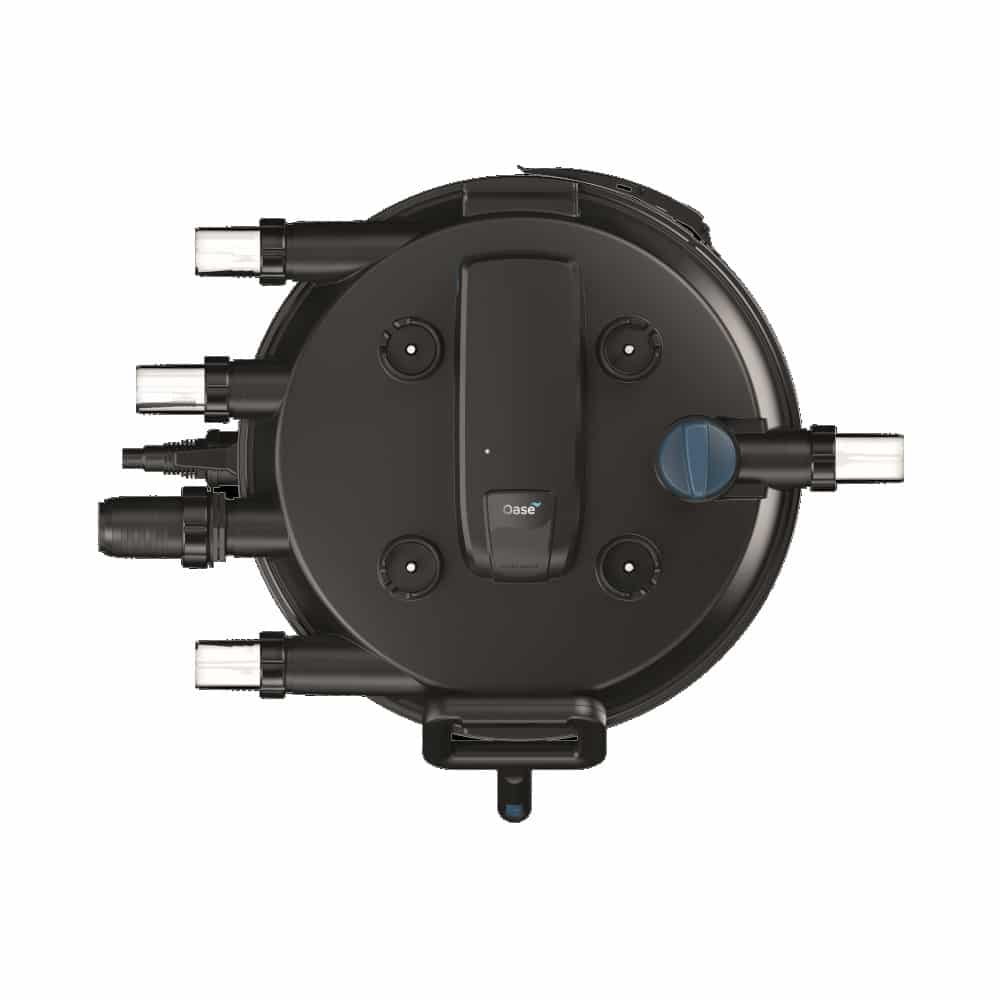

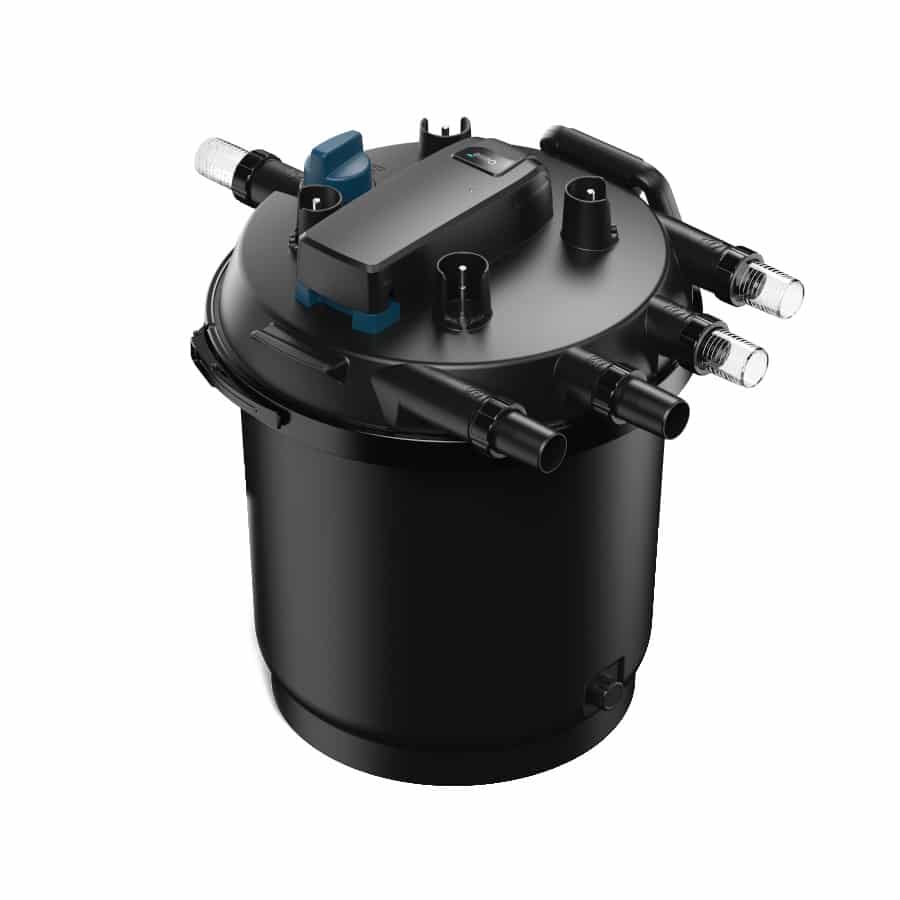

Oase Filtoclear 60000
Oase FiltoClear 60000 is a filter performance at the cutting edge. OASE premium technology meets modern garden pond and trendy stream. As all operating elements are integrated in the lid, the pressure filter can be buried in the ground and optimally integrated into the pond landscape. The perfect clear water result: FiltoClear 60000 (670 mm × 600mm x 750 mm) cleans ponds up to 60,000 litres highly effectively thanks to finely structured filter sponges and a powerful 84 watt UV-C lamp output (2x 42w Lamps). With its high flow rate based on OASE bypass technology (20,000 l/h), any blockages in the filter are a thing of the past. The easy-to-operate pull mechanism makes cleaning the filter convenient. You can even change the UV-C lamp during operation. This model is also equipped with the patented UV cleaning rotor. OASE quality with up to three years guarantee.
Features:
- POND FILTER: Patented cleaning mechanism with optimised filter sponges
- CONVENIENT: Easy to maintain and clean thanks to simple handle mechanism
- EASY LAMP CHANGE: The UV lamp can be changed while the unit is running – no need to switch off the filter, no need to dismantle the quartz glass
- PROTECTED: The high-quality UVC housing protects the ballast unit from sunlight and moisture
- POWERFUL: All latest generation FiltoClear models feature upgraded, highly effective UV lamps
- 2-WAY VALVE: Choose whether the water flows into the pond or into the waste water after cleaning the filter
- IMPROVED EFFICIENCY: The built-in OASE bypass technology ensures optimum water flow and prevents the filter from clogging
- STABLE AND ROBUST: The hard-wearing housing made of high-quality plastic can be easily buried in the ground and impresses with its long durability
- UNDER PRESSURE: The metal clamping ring with simple lever function makes opening and closing a FiltoClear safer and easier than ever before
Large Pressure Filtration for Large Ponds:
Suitable for ponds up to 60000 litres. Optimum filtration thanks to 4 different grade filter foams. Mechanical and biological filtration from foam cartridges.
Flexible Use:
Two inlets for supply from up to two pumps. Two outlets for flexible return options. Ideal for watercourses. Easy installation in the ground.
Efficient Cleaning Technology:
Innovative cleaning system foam cartridges cleaned by reversing flow thorough compression and easy to use cleaning handle. Dirty water drainage via dedicated waste outlet (and optional drain valve)
High UVC Output:
With 84w (60000) the UVC is highly effective against floating algae and ensures permanently clear and healthy water.
User-Friendly:
Easy removal and cleaning of the foam cartridges thanks to the click system. UVC lamp can be replaced during operation (fixed quartz). Pollution indicator signals when cleaning is required.
Technical Data:
| Dimensions (L × W × H) | mm | 670 × 600 × 760 |
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 84 |
| Power cable length | m | 5.00 |
| Net weight | kg | 27.00 |
| Limited Warranty | Years | 2 + 1 |
| UVC power | W | 84 |
| Number of blue filter foams | Units | 1 |
| Number of red filter foams | Units | 1 |
| Number of purple filter foams | Units | 1 |
| Inlet connections | mm | 50 |
| Connections, outlet | mm | 50 |
| Connections, sludge discharge | mm | 50 |
| Max. flow rate | l/h | 20000 |
| Max. operating pressure | bar | 1.5 |
| Suitable for ponds up to max. | m3 | 60.0 |
| Suitable for ponds with fish stock | m3 | 30.0 |
| Suitable for ponds with koi | m3 | 15.0 |
| Number of green filter foams | Units | 1 |
