Description

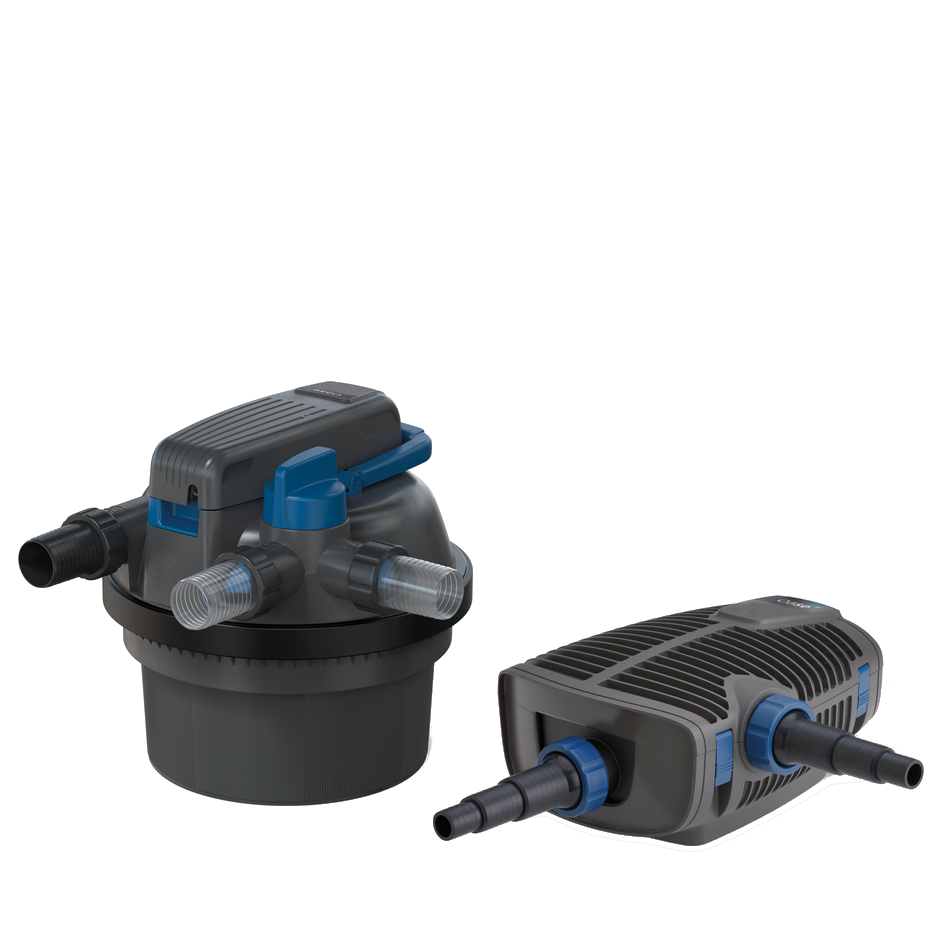

Oase Filtoclear Set 5000 OC
The Oase FiltoClear 5000 OC pressure filter in a set with the energy-efficient AquaMax Eco Premium 5000 – the perfect filter-pump combination for ponds and streams up to 5,000 litres. As all the operating elements of the filter made of high-quality plastic are located in the lid, it can be buried in the ground and optimally integrated into the pond landscape. The perfect clear water result: FiltoClear 5000 (380 mm × 310 mm) cleans highly effectively thanks to finely structured filter sponges and a powerful 18-watt UV-C lamp. With its high flow rate based on OASE bypass technology, any blockages in the filter are a thing of the past. The easy-to-operate pulling mechanism makes cleaning the filter convenient. Even the UV-C lamp can be changed quickly and easily during operation. OASE quality with up to three years guarantee.
Features:
- Four clearly defined models for pond sizes with a volume of water ranging from 5000 to 31,000 litres – with and without fish stock
- New pull-out mechanism that allows filter sponges to be conveniently cleaned without having to get dirty or disassemble the whole filter
- UVC housing with increased UV performance and simple lamp replacement while the filter is running
- UV cleaning rotor automatically cleans the quartz glass surrounding the UVC lamp – from FiltoClear 19000 onwards
- OASE Bypass technology ensures constant water flow and prevents clogging
- Three filter foams (instead of the two previously) for even more thorough cleaning – from FiltoClear 13000 onwards
- New clamping ring to make opening and closing the filter even easier
- Robust construction and materials ensure long service life
Characteristics:
- POND FILTER: Patented cleaning mechanism with optimised filter sponges
- CONVENIENT: Easy to maintain and clean thanks to simple handle mechanism
- CONVENIENT LAMP CHANGE: The UV lamp can be changed while the unit is running – no need to switch off the filter, no need to dismantle the quartz glass
- PROTECTED: The high-quality UVC housing protects the ballast unit from sunlight and moisture
- POWERFUL: All latest generation FiltoClear models feature upgraded, highly effective UV lamps
- 2-WAY VALVE: Choose whether the water flows into the pond or into the waste water after cleaning the filter
- IMPROVED EFFICIENCY: The built-in OASE bypass technology ensures optimum water flow and prevents the filter from clogging
- STABLE AND ROBUST: The hard-wearing housing made of high-quality plastic can be easily buried in the ground and impresses with its long durability.
- UNDER PRESSURE: The metal clamping ring with simple lever function makes opening and closing a FiltoClear safer and easier than ever before
Technical Data:
| Filtoclear model |
5000
|
13000
|
19000
|
31000
|
||
| Dimensions in mm (Ø x H) |
380 x 310
|
380 x 510
|
380 x 630
|
380 x 750
|
||
| Hose connections (Inlet / Outlet and Sludge Outlet – fitting supplied) |
1 1/2″ (38mm) / 2″ (50mm)
|
|||||
| Max Pump Capacity (litres/hour) |
5000
|
8000
|
12000
|
15600
|
||
| Maximum operating pressure |
5 metres (0.5 bar)
|
|||||
| Pollutant Indicator |
Yes
|
|||||
| Integral Ultraviolet Clarifier (UVC) 230 volts |
18 watts
|
24 watts
|
42 watts
|
60 watts | ||
| Voltage |
230 V / 50 Hz
|
|||||
| UVC cable length |
5 metres
|
|||||
| Qty of coarse filter foams (blue) |
–
|
1
|
2
|
2
|
||
| Qty of medium filter foams (purple) | 1 | 1 | 1 | 1 | ||
| Qty of fine filter foams (red) |
1
|
1
|
1
|
2
|
||
| Max. volume for ponds without fish |
5000 L
|
13000 L
|
19000 L
|
31000 L
|
||
| Max. volume for ponds with goldfish |
2500 L
|
7000 L
|
10000 L
|
15000 L
|
||
| Max. volume for ponds with Koi Carp |
–
|
–
|
5000 L
|
7500 L
|
||
| Supplied Pump (FiltoClear SETS only) | AquaMax Eco Premium 5000 OC | AquaMax Eco Premium 9000 OC | AquaMax Eco Premium 13000 OC | AquaMax Eco Premium 17000 OC | ||
| Guarantee | Standard 2 year, which can be increased, free of charge, to 3 years by completion and return of the corresponding request card. | |||||
