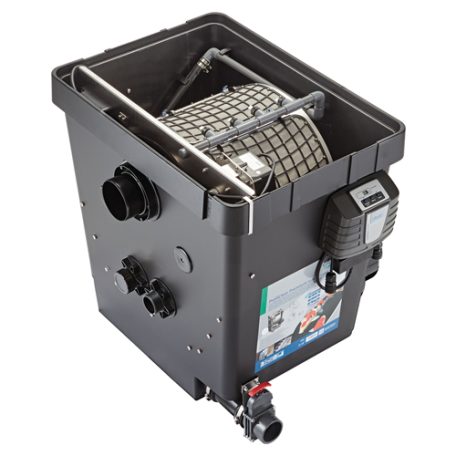

ProfiClear Premium DF-L pump-fed EGC
  • ProfiClear Premium DF-L pump-fed EGC
  • ProfiClear Premium DF-L pump-fed EGC 2
  • ProfiClear Premium DF-L pump-fed EGC controller
  • ProfiClear Premium DF-L pump-fed EGC3
  • ProfiClear Premium DF-L pump-fed EGC with moving beds

ProfiClear Premium DF-L Pump-Fed OC

£4,179.99 inc. VAT £3,761.99 inc. VAT

ProfiClear Premium DF-L Pump-Fed OC

OASE introduces over three years of development with the ProfiClear Premium DF-L Pump-Fed OC. With this filter you get professional technology starting with the Drum Filter Module which provides deep bed filtration to 60 microns. Then the second stage of filtration utilises the moving bed module that contains Hel-X biomedia for intelligent decomposition of pollutants and nutrients. This outstanding, high performance filter has a sophisticated micro control system which digitally displays the pond water temperature and handles the self cleaning function for unique, maintenance free operation. Read more

Features:

  • Automatic self cleaning
  • Deep bed filtration to 60 microns
  • First class price/performance ratio
  • Safety cut-out switch is mounted to the filter lid
  • Professional filter media and moving bed process
  • Suitable for Koi ponds and other large bodies of water to 260,000 Litres
  • GRP Duroplast / stainless steel material gives the filter drum an extremely stable and durable housing.
SKU: FS196 ( 47004) Categories: ,

Description

ProfiClear Premium DF-L Pump-Fed OC

OASE introduces over three years of development with the ProfiClear Premium DF-L Pump-Fed OC. With this filter you get professional technology starting with the Drum Filter Module which provides deep bed filtration to 60 microns. Then the second stage of filtration utilises the moving bed module that contains Hel-X bio media for intelligent decomposition of pollutants and nutrients. This outstanding, high performance filter has a sophisticated micro control system which digitally displays the pond water temperature and handles the self cleaning function for unique, maintenance free operation.

Features:

  • Modern modular filter system for professional water quality where space is at a minimum
  • Mature, professional technology with more than three years of development time
  • Filtration with a filter capacity to 60 µm
  • Automatic self-cleaning
  • A microcontroller system, suitable for outdoor use, monitors and controls the functions
  • Individually removable sieve elements (no tools required) and free-wheeling functions for easy access to the drum
  • Particularly quiet in operation
  • Quality high-pressure pump for flushing the drum in the scope of delivery
  • Connection options for the OASE Control system
  • Excellent decomposition rates of ammonium, ammonia, nitrite and nitrate
  • Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit
  • Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
  • Outstanding filter capacity with intelligent control functions
  • Intelligent self-cleaning function for unique maintenance-free operation (drum filter module)
  • Flexible adaptation of the filter system to individual requirements (individual module)
  • Innovative and reliable product “Made in Germany” (except pressure pump)
  • Safety level switch prevents jamming due to debris particles
  • Additional 2″ inputs with non-return valve for integration of additional pumps
  • Flow capacity up to 25 m³/h
TECHNICAL DATA:
Dimensions (L x W x H) mm 830 x 600 x 820
Rated voltage 230 V / 50 Hz
Power consumption W 5
Power consumption, cleaning W 1050
Cable length m 2.00 + 2.00
Net weight kg 76.00
Guarantee (+ request guarantee) Years 2 + 1
Control unit Microcontroller
Temperature display Digital
Coarse debris extraction µm 60
Number of nozzles/rinse quantity 4 x 2.5 l/min
Scavenging pump 6 bar
Automatic rinsing system manually, Sensor, Time interval
Number of sieve elements Units 8
Filter intake surface cm2 4200
Material GRP Duroplast/stainless steel
Number of inlets Units 4
Inlet connections DN 110
Number of outlets Units 2
Outlet connections DN 150
Sludge discharge connections DN 75, DN 110
Flush trough connection DN 110
Connection to Bitron Gravity
Min. flow rate l/h 10000
Max. flow rate l/h 33000
Installation height above water level cm 11.0
Possible water level difference -20 mm
Type of use Gravity fed system
Other Pollutant discharge incl. slide valve
