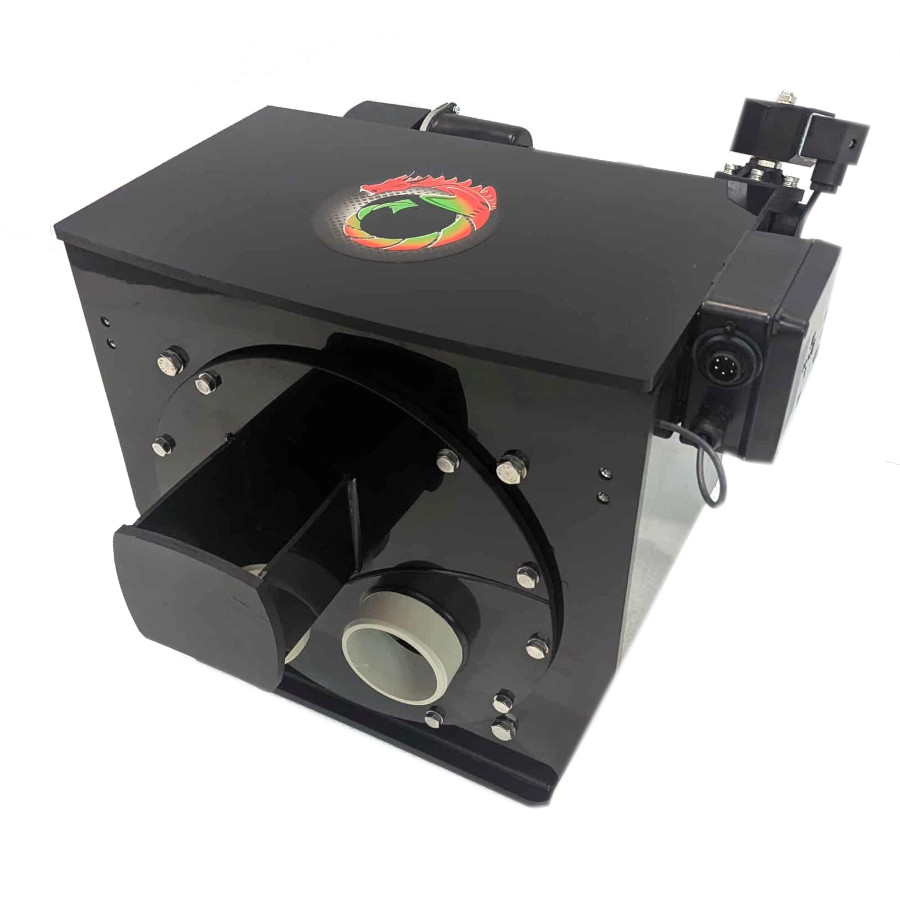

Draco 2 Gen 2
  • Draco 2 Gen 2

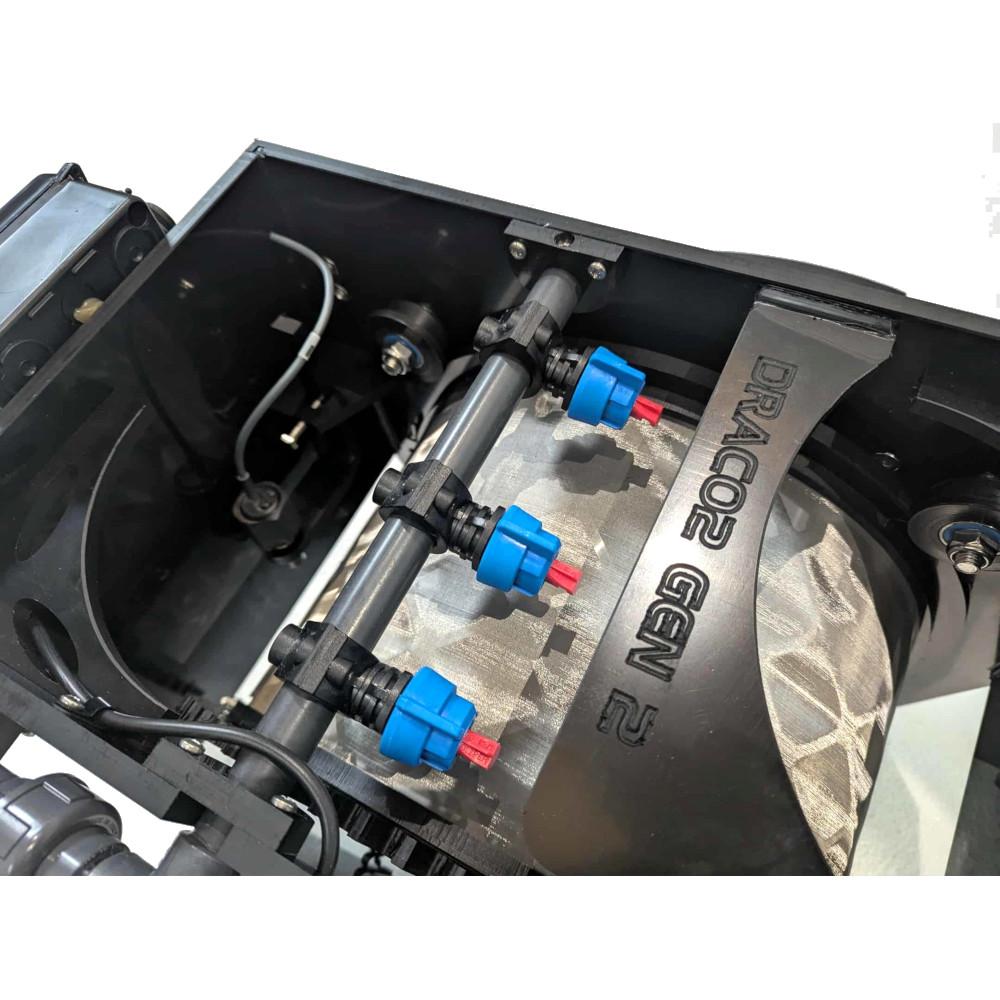

  • Draco 2 Gen 2 screen

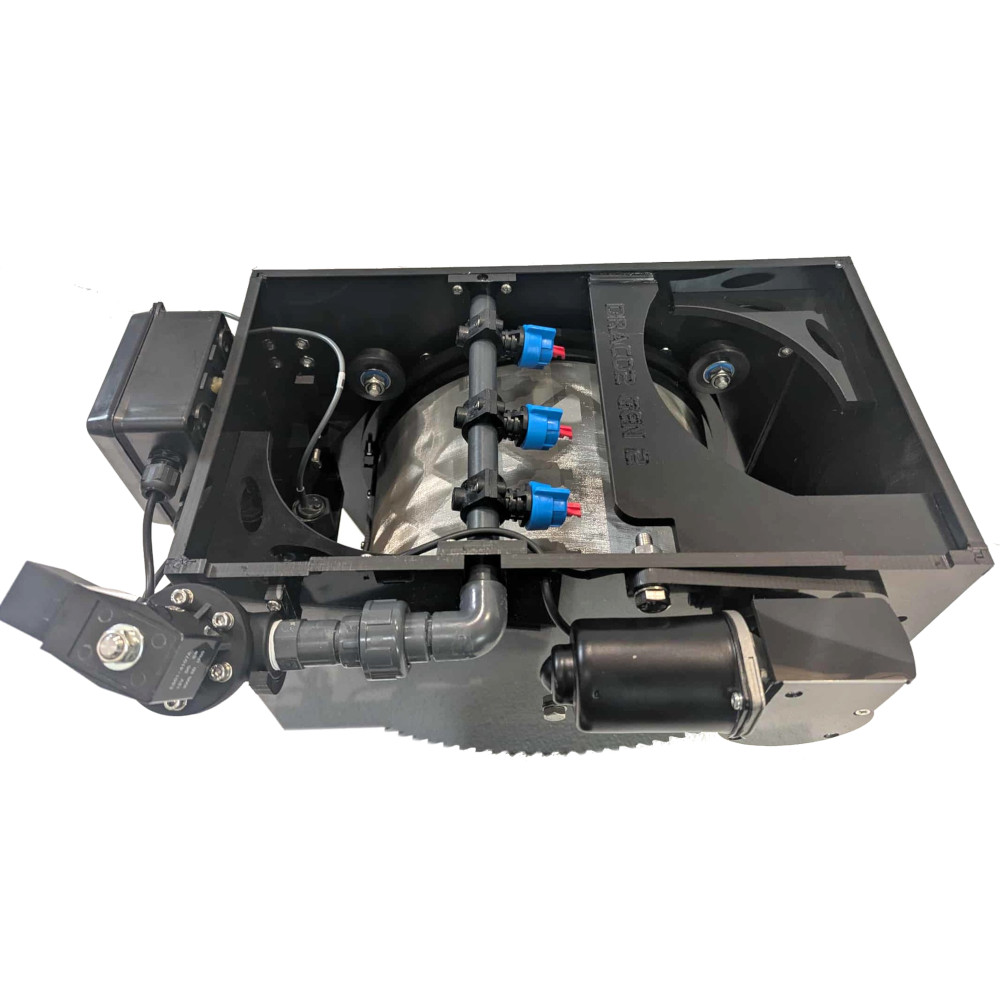

  • Draco 2 Gen 2 screen2

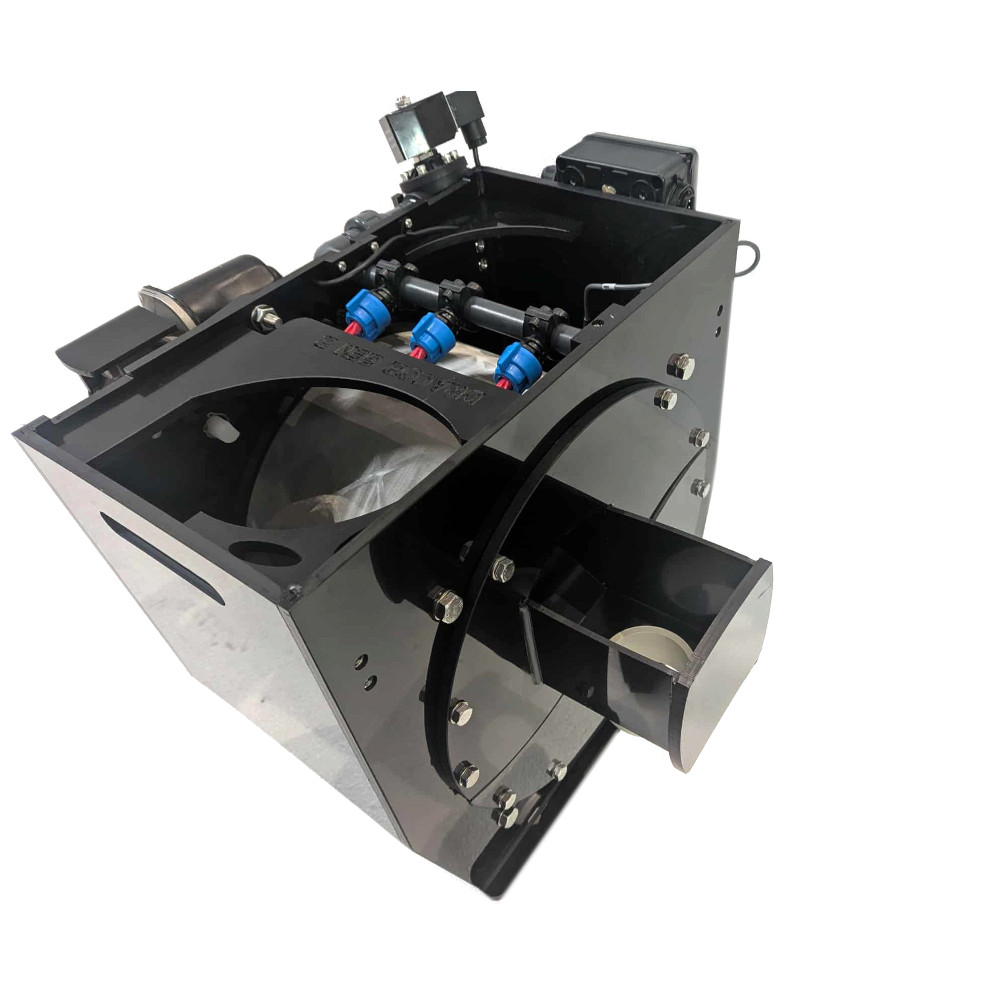

  • Draco 2 Gen 2 1
  • Draco 2 Gen 2 2
  • controller

Draco 2 Gen 2

£1,495.00 inc. VAT
£1,345.50 inc. VAT

Draco 2 Gen 2

The Draco 2 Gen2 Drum is a reasonably priced and reliable Drop In Drum For the Nexus 2xx series (all types) and smaller vortexes. It comes with a 77 micron screen. This Drum Can be used without a pressure wash pump – wash cycle runs off a normal garden hose with a minimum pressure of 2.5 bar with good flow. The Draco 2 Gen 2 uses 22 watts of power while active and 1.2 watts while on standby. The Status of controller is available via simple, high intensity, colour coded LEDs and a digital minute between washes display. Easily accessible water level sensors that can be adjusted to accommodate any situation. All parts are modular and are replaceable in the event of any damage or failure Wholly designed and built in the UK by Draco Drum. Read more

Technical Data:
  • Reworked deeper waste tray with all new inlet and waste plates and intra plate seals
  • Removable main drum seal set
  • External motor
  • Heavily braced and extended chassis
  • 4 way idle wheel set
  • Solid state water sensor
  • Nylon body water valve to combat freezing
  • 77µm screen
  • 12,000 lph maximum flow rate gravity mode,
  • 9,000 lph maximum flow rate pump fed.
  • Power usage 1.2 watts (standby), 22 watts (running)
  • Dimensions (mm) – 460 (front to back) x 450 (height) x 510 (width including junction box)
Clear selection
SKU: draco2 Category:

Description

Draco 2 Gen 2

The Draco 2 Gen2 Drum is a reasonably priced and reliable Drop In Drum For the Nexus 2xx series (all types) and smaller vortexes. It comes with a 77 micron screen. This Drum Can be used without a pressure wash pump – wash cycle runs off a normal garden hose with a minimum pressure of 2.5 bar with good flow. The Draco 2 Gen 2 uses 22 watts of power while active and 1.2 watts while on standby. The Status of controller is available via simple, high intensity, colour coded LEDs and a digital minute between washes display. Easily accessible water level sensors that can be adjusted to accommodate any situation. All parts are modular and are replaceable in the event of any damage or failure Wholly designed and built in the UK by Draco Drum.

Technical Data:
  • Reworked deeper waste tray with all new inlet and waste plates and intra plate seals
  • Removable main drum seal set
  • External motor
  • Heavily braced and extended chassis
  • 4 way idle wheel set
  • Solid state water sensor
  • Nylon body water valve to combat freezing
  • 77µm screen
  • 12,000 lph maximum flow rate gravity mode,
  • 9,000 lph maximum flow rate pump fed.
  • Power usage 1.2 watts (standby), 22 watts (running)
  • Dimensions (mm) – 460 (front to back) x 450 (height) x 510 (width including junction box)

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Q & A

Ask a question
There are no questions yet

Additional information

Weight 15 kg
Dimensions 50 × 50 × 50 cm
Application

Gravity, Pump fed
