Draco Drum Origin Gen 2
  • Draco Drum Origin Gen 2
  • Draco Drum Origin 16 Gen 2 2
  • Draco Drum Origin 16 Gen 2 3
  • Draco Drum Origin 16 Gen 2 4
  • controller

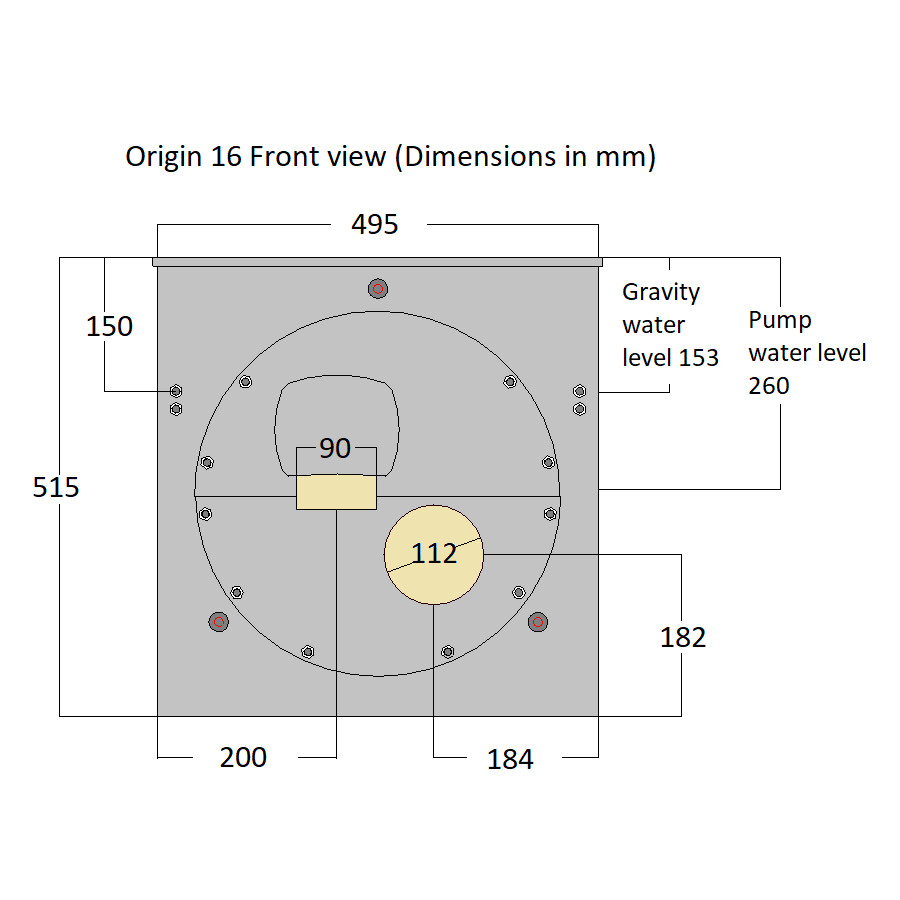

  • Draco Drum Origin 16 dimensions

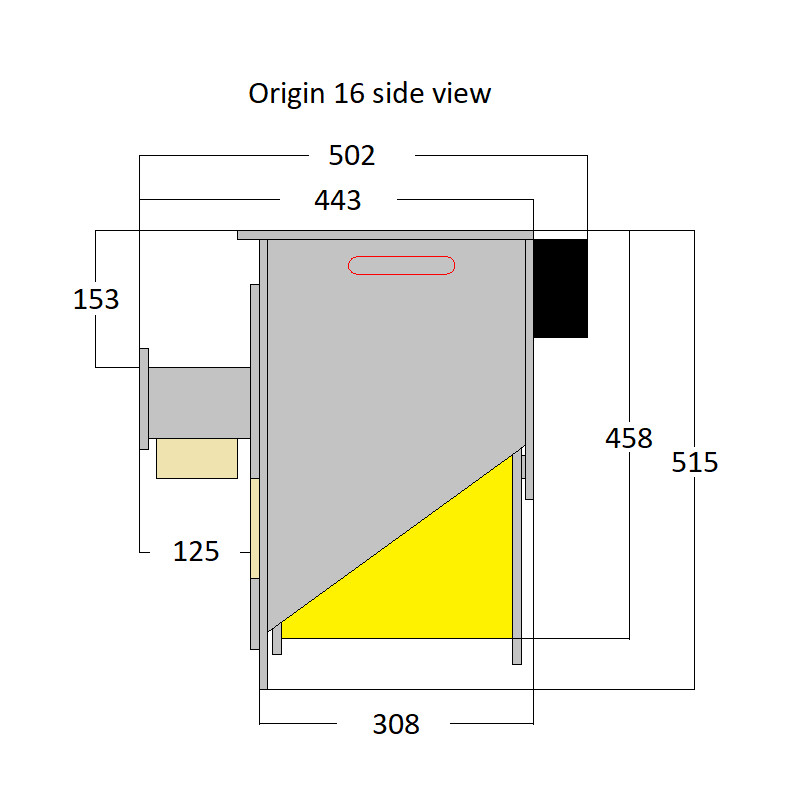

  • Draco Drum Origin 16 dimensions 2

Draco Drum Origin 16 Gen 2

£1,560.00 inc. VAT

Draco Drum Origin 16 Gen 2

The Draco Drum Origin 16 Gen 2 is a reasonably priced and reliable unit that Fits in the 3XX series Nexus units, Any container with an internal clearance of at least 33″ in diameter. It comes with a 77 microns screen. This Drum Can be used without a pressure wash pump – wash cycle runs off a normal garden hose with a minimum pressure of 2.5 bar with good flow. The Origin 16 uses 35 watts of power while active, 11.5 watts while on standby and 78 watts while active with optional pressure pump. The Drive system comprises direct gearing to the back of the drum minimising complexity, the sealed motor unit is mounted on a single pivot swing arm as a safety feature to stop foreign bodies jamming the system. Its a fairly Simple installation via multiple types of adaptor plate which are interchangeable Single, pre-wired connection from controller to drum. Just plug and play ability to site controller up to 4 metres away from the unit. The Status of controller is available via simple, high intensity, colour coded LEDs and a digital minute between washes display. Easily accessible water level sensors that can be adjusted to accommodate any situation. All parts are modular and are replaceable in the event of any damage or failure Wholly designed and built in the UK by Draco Drum. Read more

Technical Data
  • Fits in 3XX series Nexus units, Any container with an internal clearance of at least 33″ in diameter
  • Dimensions – 495mm wide x 311mm long x 515mm height
  • Height above water level – 180mm
  • Capacity – 3,700 Imp gallons per hour / 16,800 litres per hour (in gravity mode, pump fed less 25%)
  • Pond Volume – Approx. 4,500 UK gallons
  • single Inlet, 110mm
  • Gravity or Pump Fed
Clear selection
SKU: origin16 Category:

Description

Draco Drum Origin 16 Gen 2

The Draco Drum Origin 16 Gen 2 is a reasonably priced and reliable unit that Fits in the 3XX series Nexus units, Any container with an internal clearance of at least 33″ in diameter. It comes with a 77 microns screen. This Drum Can be used without a pressure wash pump – wash cycle runs off a normal garden hose with a minimum pressure of 2.5 bar with good flow. The Origin 16 uses 35 watts of power while active, 11.5 watts while on standby and 78 watts while active with optional pressure pump. The Drive system comprises direct gearing to the back of the drum minimising complexity, the sealed motor unit is mounted on a single pivot swing arm as a safety feature to stop foreign bodies jamming the system. Its a fairly Simple installation via multiple types of adaptor plate which are interchangeable Single, pre-wired connection from controller to drum. Just plug and play ability to site controller up to 4 metres away from the unit. The Status of controller is available via simple, high intensity, colour coded LEDs and a digital minute between washes display. Easily accessible water level sensors that can be adjusted to accommodate any situation
All parts are modular and are replaceable in the event of any damage or failure Wholly designed and built in the UK by Draco Drum.

Technical Data
  • Fits in 3XX series Nexus units, Any container with an internal clearance of at least 33″ in diameter
  • Dimensions – 495mm wide x 311mm long x 515mm height
  • Height above water level – 180mm
  • Capacity – 3,700 Imp gallons per hour / 16,800 litres per hour (in gravity mode, pump fed less 25%)
  • Pond Volume – Approx. 4,500 UK gallons
  • single Inlet, 110mm
  • Gravity or Pump Fed

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Manual





Origin Draco Drum manual.pdf

Q & A

Ask a question
There are no questions yet

Shipping Rules

We have several different ways of shipping available on our website for you to select when you go through to checkout

  • We use Evri for our Economy Service this can take between 2 and 5 days. This service starts from £4.90. Evri collect from us on a Monday and Thursday which is a Tuesday and Friday delivery to you
  • We use DPD and DX for our premium/standard service which is a next working day delivery this service price starts from £7.95. This is collected from us Monday through to Friday, We cannot Guarantee it will be a next day as it is courier dependant
  • We use Dx Freight for our standard large service for things like pipe lengths and larger items This service is £19.95. This is on a next working day delivery and is Monday through to Friday.
  • We use APC for our Fish delivery service this service is £35. This is an overnight service. Koi will be scheduled to arrive between 8.00am – 12:00 midday. You also MUST be in to sign for the koi. Delivery days are Wednesday, Thursday & now Fridays and will always be pre arranged with you
  • Some larger items and bespoke items are dropped shipped to speed up delivery
  • We also ship from our suppliers this is to speed up delivery
  • We also offer Free Delivery on orders over £100 excluding lengths of pipe and live fish
  • Live fish are sent with APC and have a price of £35.00. More than 1 Koi can fit in a box
  • All our shipping companies do give us tracking information that you should receive by email this includes any orders we drop ship.

Additional information

Weight 20 kg
Dimensions 60 × 60 × 60 cm
Application

Gravity, Pump fed
