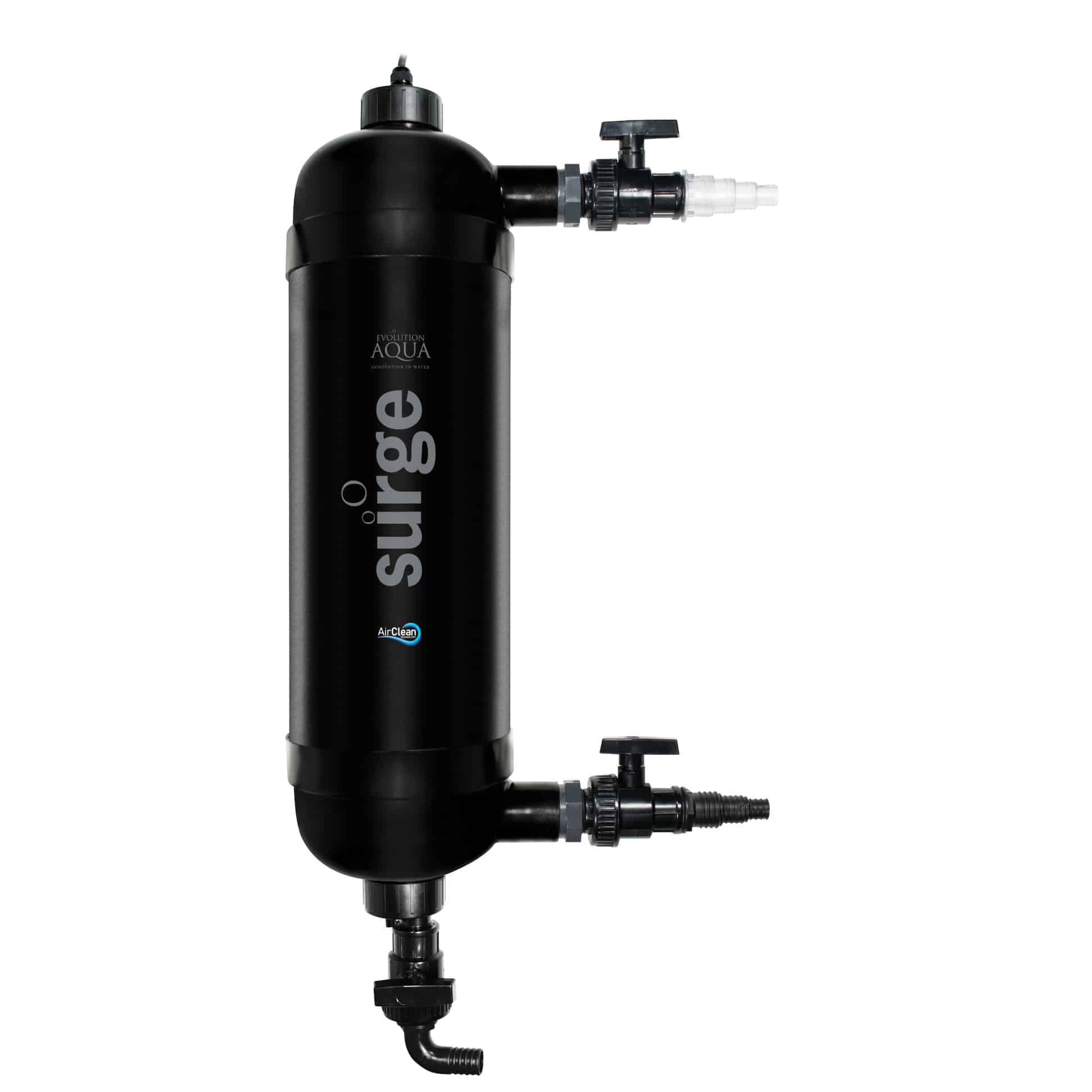

Evolution Aqua Surge Filter

£299.99 inc. VAT

Evolution Aqua Surge Filter

The Evolution Aqua Surge Filter is an innovative filter that will help to deliver crystal clear, healthy water for ponds up to 5,000 Litres. There are no dirty sponges or foams to clean so you get to keep your hands dry, giving you more time to enjoy your pond. As pond water is pumped up through the Surge Filter the K+ Media becomes a mechanical barrier that traps debris as it flows through. Waste particles remain trapped within the K+ Media until they are dislodged and flushed away during the patented Air Clean Technology cleaning process. Air Clean Technology uses open cell K+ Media and air to clean the filter providing a low energy and cost-effective solution. With the pump off, ball valves closed, and waste valve open, air is drawn into the filter. As air and water mix inside the filter, the media starts to move chaotically, dislodging the trapped waste. Dirty water then exits the bottom of the filter via the waste line, leaving clean media.

Benefits:

  • Keep your hands dry
  • Foam free, easy self-cleaning technology.
  • More time to enjoy your pond
  • Reduces filter cleaning and maintenance.
  • Crystal clear and healthy water
  • Enhanced filtration with K+ Media and integrated UVC.
  • Air Clean Technology



SKU: FS330 Category:

Description

Evolution Aqua Surge Filter

The Evolution Aqua Surge Filter is an innovative filter that will help to deliver crystal clear, healthy water for ponds up to 5,000 Litres. There are no dirty sponges or foams to clean so you get to keep your hands dry, giving you more time to enjoy your pond. As pond water is pumped up through the Surge Filter the K+ Media becomes a mechanical barrier that traps debris as it flows through. Waste particles remain trapped within the K+ Media until they are dislodged and flushed away during the patented Air Clean Technology cleaning process. Air Clean Technology uses open cell K+ Media and air to clean the filter providing a low energy and cost-effective solution. With the pump off, ball valves closed, and waste valve open, air is drawn into the filter. As air and water mix inside the filter, the media starts to move chaotically, dislodging the trapped waste. Dirty water then exits the bottom of the filter via the waste line, leaving clean media.

Benefits:

  • Keep your hands dry
  • Foam free, easy self-cleaning technology.
  • More time to enjoy your pond
  • Reduces filter cleaning and maintenance.
  • Crystal clear and healthy water
  • Enhanced filtration with K+ Media and integrated UVC.
  • Air Clean Technology

Technical Data:

  UK EU US
MAX POND SIZE 5,000 Litres 1,100 Gallons 1,320 US Gallons
INLET ¾”, 1”, 1¼” 20mm, 25mm, 32mm ¾”, 1”, 1¼”
OUTLET ¾”, 1”, 1¼” 20mm, 25mm, 32mm ¾”, 1”, 1¼”
WASTE 1” 25mm 1”
MAX FLOW RATE 3,500 lph 771 gph 925 US gph
OPTIMUM FLOW RATE 2,500 lph 550 gph 660 US gph
K+MEDIA SUPPLIED 4.5 Litres 4.5 Litres 4.5 Litres
WATER VOLUME IN FILTER 19 Litres 4.2 Gallons 5 US Gallons



Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight 6 kg
Dimensions 70 × 40 × 40 cm
