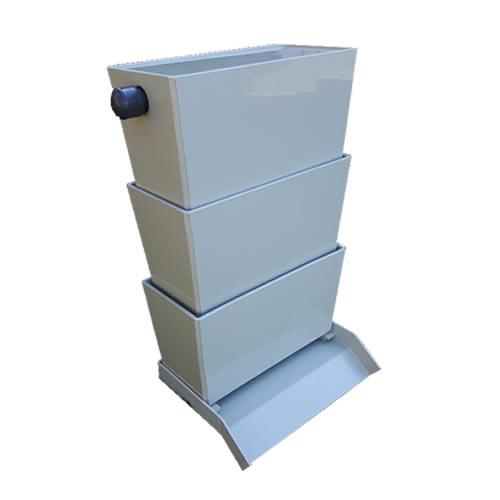

Evolve mini shower- Bacteria Shower

£499.99 inc. VAT

The Evolve mini Bacteria Shower another great addition to the evolve range.

Overall dimensions are; 540mm long x 250mm wide x 780mm tall.

Supplied with a 2-inch removable spray bar should the user wish to drill more holes.

Extra tiers can be purchased separately should a larger capacity shower be required.

The Bacteria Shower comes with the standard waterfall type base to sit on the pond wall but can be ordered with a piped base if required to allow the outflow to be piped to a certain location.

A two-spray bar top tier of the shower is available if extra water volume is required.

This shower has a recommended maximum flow rate of 4,000 gallons per hour (18,000 litres).

SKU: evolveshowermini Category:

Description

The Evolve mini Bacteria Shower another great addition to the evolve range.

Overall dimensions are; 540mm long x 250mm wide x 780mm tall.

Supplied with a 2-inch removable spray bar should the user wish to drill more holes.

Extra tiers can be purchased separately should a larger capacity shower be required.

The Bacteria Shower comes with the standard waterfall type base to sit on the pond wall but can be ordered with a piped base if required to allow the outflow to be piped to a certain location.

A two-spray bar top tier of the shower is available if extra water volume is required.

This shower has a recommended maximum flow rate of 4,000 gallons per hour (18,000 litres).

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight 20 kg
Dimensions 60 × 60 × 30 cm
