Home » Shop » Pond Building Supplies » Skimmers » Oase Aqua Skim 20 (Standing)

Oase Aqua Skim 20 (Standing)

£102.99 inc. VAT

Oase Aqua Skim

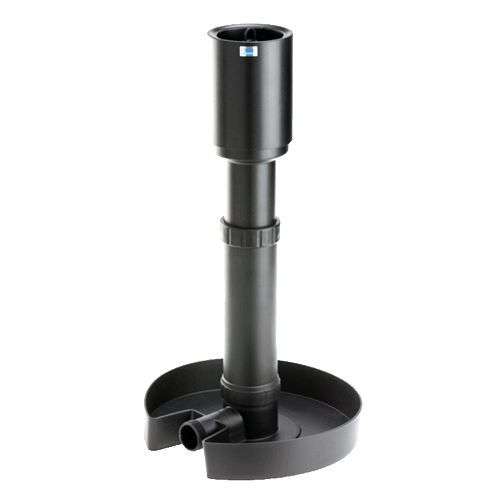

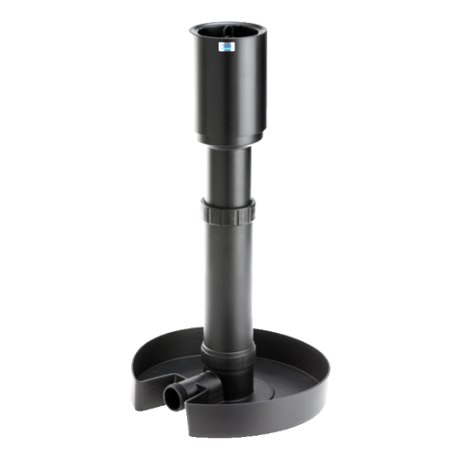

The OASE AquaSkim 20 keeps a water surface of up to 20 m² clean and is an ideal addition to the AquaMax Eco Premium models 4000-8000. Its skimmer basket has a diameter of 126 mm. It can be easily adapted to the pond depth thanks to the two-part telescopic tube, which is infinitely adjustable in height from 320 to 800 mm. The skimmer compensates for water level differences of up to 100 mm. The filter basket volume is 1.4 L. The skimmer lets through dirt particles up to 10 mm in size. Thanks to the 350 mm base, the AquaSkim 20 can be fixed to the pond floor with stones that are particularly stable. The small pipe diameter of 80 mm also ensures less air content and thus prevents the skimmer, which has a connection with a universal stepped hose nozzle from ¾ “to 1½”.

Characteristics:
  • The result is clearly improved water quality and viewing depth through direct suction removal of pollutants on the surface
  • Base with large surface receptacle shell for rocks as ballast
  • Oase Aqua Skim 20 – ideal for use on the AquaMax Eco Premium 4000-8000
  • Aqua Skim Gravity with high quality DN 160 / 110 adapter for easy integration in DN 110 line systems

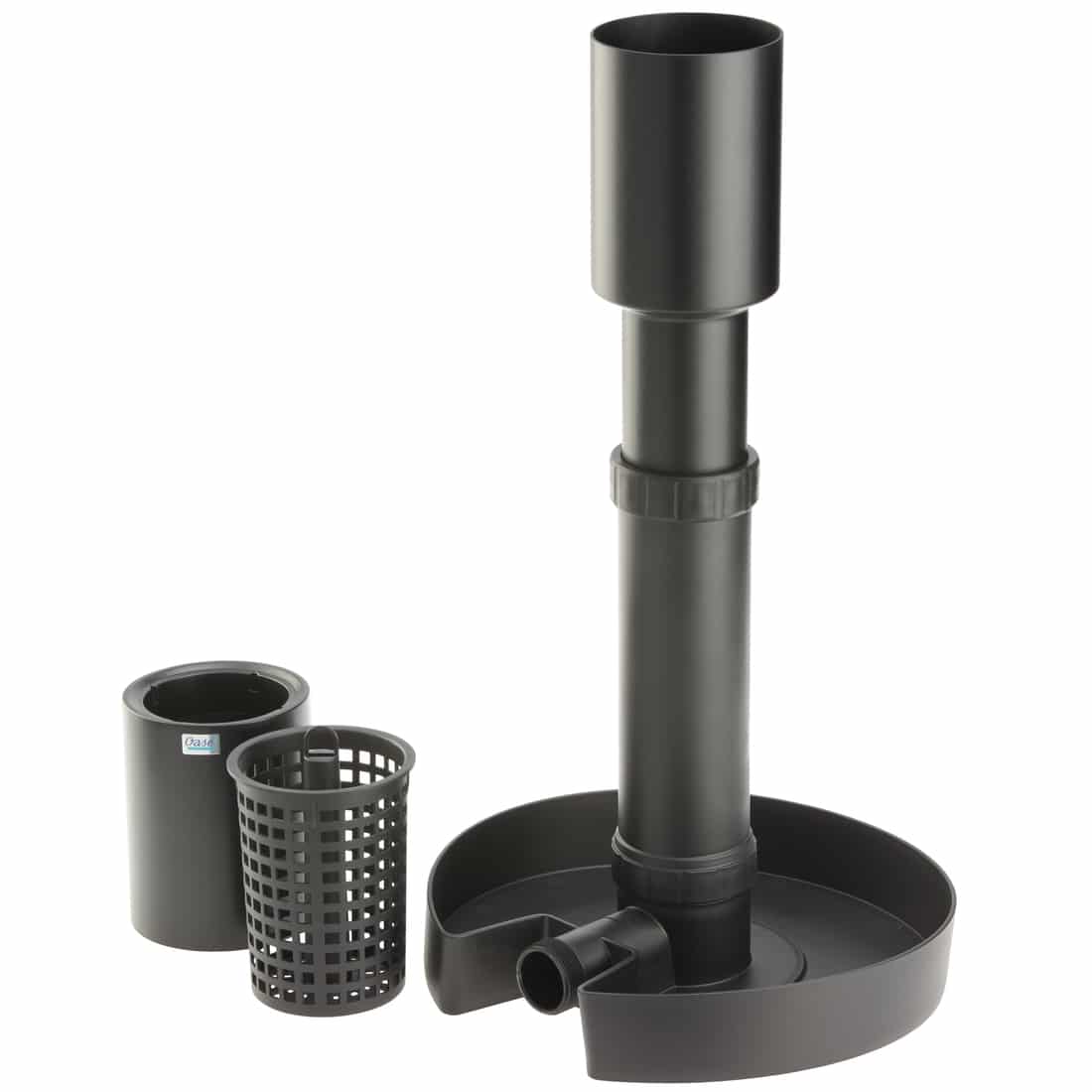

  • Easy maintenance with easily accessible coarse debris basket
  • Debris basket can also be taken out from a distance via grip hooks
  • Ideal combination with AquaMax Eco Premium filter and watercourse pumps
  • Powerful suction cleaning of pond surfaces up to 20 m²
SKU: SK2171 (51236) Category:

Description

Oase Aqua Skim

The OASE AquaSkim 20 keeps a water surface of up to 20 m² clean and is an ideal addition to the AquaMax Eco Premium models 4000-8000. Its skimmer basket has a diameter of 126 mm. It can be easily adapted to the pond depth thanks to the two-part telescopic tube, which is infinitely adjustable in height from 320 to 800 mm. The skimmer compensates for water level differences of up to 100 mm. The filter basket volume is 1.4 L. The skimmer lets through dirt particles up to 10 mm in size. Thanks to the 350 mm base, the AquaSkim 20 can be fixed to the pond floor with stones that are particularly stable. The small pipe diameter of 80 mm also ensures less air content and thus prevents the skimmer, which has a connection with a universal stepped hose nozzle from ¾ “to 1½”.

Characteristics:
  • The result is clearly improved water quality and viewing depth through direct suction removal of pollutants on the surface
  • Base with large surface receptacle shell for rocks as ballast
  • Oase Aqua Skim 20 – ideal for use on the AquaMax Eco Premium 4000-8000
  • Aqua Skim Gravity with high quality DN 160 / 110 adapter for easy integration in DN 110 line systems
  • Easy maintenance with easily accessible coarse debris basket
  • Debris basket can also be taken out from a distance via grip hooks
  • Ideal combination with AquaMax Eco Premium filter and watercourse pumps
  • Powerful suction cleaning of pond surfaces up to 20 m²

Technical Data

Dimensions (Ø x H) mm 350 x 800
Net weight kg 1.60
Guarantee (+ request guarantee) Years 3 + 2
Height adaptation 370 – 850 mm
Tube diameter mm 80
Filter volume l 1.2
Possible Water level difference 100 mm
Pond surface, max. m² 20
Pump capacity, min. l/h 4000
Pump capacity, max. l/h 8000
Connections, outlet mm 25 / 32 / 38
Connections, outlet 1″, 1 ¼”, 1 ½”
