Description
Oase AquaMax Eco Titanium 81000
- Innovative gravity filter pump for large bodies of water with koi stock
- With flow-optimised hydraulics achieves an outstanding level of efficiency of over 50%
- With innovative AquaMax Eco Control for bi-directional control of the pump via 10 m DMX-RDM cable
- Protection against dry run and blocking through Environmental Function Control (EFC by OASE)
- Patented Seasonal Flow Control (SFC) for intelligent and environmentally-conscious regulation of flow rate and pump head
- An additional 30% energy savings is possible with SFC switched on
- Ideal for set-up in a pump chamber
- Can be set up underwater & dry
- AquaMax Eco Titanium 81000 Pumps coarse debris up to 6 mm in size
- Robust pump housing of cast stainless steel with large pedestal for secure placement
- Rotor shaft and bearings of high-quality SIC ceramics for optimal reliability and long service life
- MADE IN GERMANY: precise and reliable German engineering at a high level of quality
Robust pump housing
Cast stainless steel enables achievement of sustainable precision and energy-efficiency. The entire pump housing can be adjusted 90° upward.

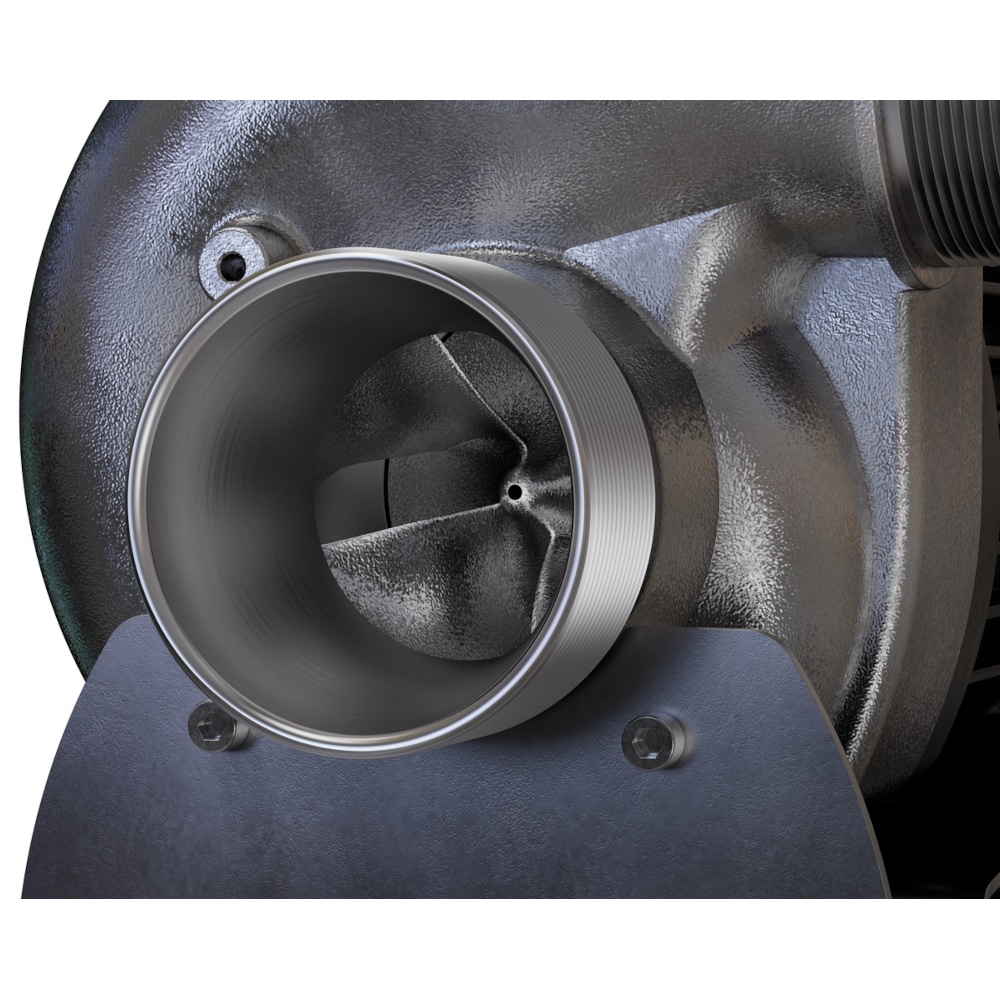

Special channel-type impeller
The impeller has a long service life. Even under continuous load, signs of wear cannot be detected.
Connection for EGC
Innovative and convenient, the pump can be regulated and operated through control devices such as the Eco Control (included in the scope of delivery).
TECHNICAL DATA
| Dimensions (L x W x H) | mm | 390 x 235 x 245 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 100 – 730 |
| Power cable length | m | 10.00 |
| Net weight | kg | 18.00 |
| Guarantee (+ request guarantee) | Years | 3 + 2 |
| Max. flow rate | l/min | 1350 |
| Max. flow rate | l/h | 81000 |
| Max. head height, metres | m | 5.50 |
| Pressure-side connection | G 3 | |
| Suction-side connection | G 3 | |
| Max. coarse debris displacement | mm | 6 |
| Electronic adjustment | Yes | |
| Connection EGC | Yes | |
| Setup type | Can be set up underwater & dry installed |
