Description

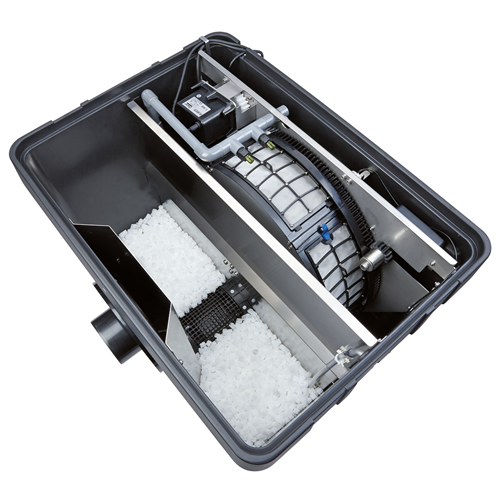

Oase ProfiClear Premium Compact-M OC
Oase ProfiClear Premium Compact-M OC is a compact and self-cleaning pumped drum filter which offers an inexpensive alternative for smaller ponds up to 80,000 Litres.
With the inner moving bed system, the Hel-X 13 filter media provides optimal water movement and cleaning of the water and its significantly enlarged surface area offers effective decomposition of nutrients and pollutants.
This is an excellent drum filter unit that naturally integrates into the landscape even in areas where space is limited.
Product Features:
- Suitable for Ponds up to 80m3
- Innovative New Drum Filter for Smaller Ponds and Koi
- High Separation Performance with Pump Fed Technology
- Self Cleaning Functionality
- Moving Bed System for Optimal Water Cleaning
- Hel-X 13 Filter Media Offers Effective Decomposition of Pollutants
- Can Be Easily Combined with a Bitron Gravity UVC Clarifier
Characteristics:
- Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit
- Inexpensive alternative for smaller ponds, particularly koi ponds
- The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
- Available in the pump-fed principle and in the gravity-fed principle
- Conveniently control all settings via an app with connection options for the OASE Control system
- With the Moving Bed System for optimal water movement and water cleaning
- High separating capacity through deep-bed filtration of up to 60 microns
- Hel-X 13 filter medium with significantly enlarged surface area for effective decomposition of nutrients and pollutants
- The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required
- Innovative and reliable product »made in Germany« (except pressure pump)
- Particularly quiet operation thanks to extensive noise insulation
- Individually removable sieve elements (no tools required) and free-wheel function
- Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
- Minimal install height for full flexibility with gravity-fed systems
TECHNICAL DATA:
| Dimensions (L x W x H) | mm | 885 x 685 x 820 |
|---|---|---|
| Rated voltage | 230 V / 50 Hz | |
| Power consumption | W | 5 |
| Power consumption, cleaning | W | 870 |
| Cable length | m | 5.00 + 1.00 |
| Net weight | kg | 76.50 |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| Biological filter surface | m2 | 38.2 |
| Biological filter surface protected | m2 | 32.2 |
| Control unit | Microcontroller | |
| Temperature display | Digital | |
| Coarse debris extraction | µm | 80 |
| Number of nozzles/rinse quantity | 2 x 3.5 l/min | |
| Scavenging pump | 4 bar | |
| Automatic rinsing system | manually, Sensor, Time interval | |
| Number of sieve elements | Units | 6 |
| Filter intake surface | cm2 | 1135 |
| Material | GRP Duroplast/stainless steel | |
| Inlet connections | mm | 50 |
| Inlet connections | 1 x 2″ + Bitron | |
| Number of outlets | Units | 1 |
| Outlet connections | DN 110 | |
| Sludge discharge connections | DN 75, DN 110 | |
| Flush trough connection | DN 110 | |
| Connection to | AquaOxy 2000, Bitron C 72 – 110 W, Bitron Eco 120 – 240 W | |
| Min. flow rate | l/h | 7500 |
| Max. flow rate | l/h | 12500 |
| Installation height above water level | cm | 32.0 |
| Type of use | Pump fed system | |
| Other | Aeration pre-installed incl. 40l Hel-X 13 Biomedia Pollutant discharge incl. slide valve |
