Description

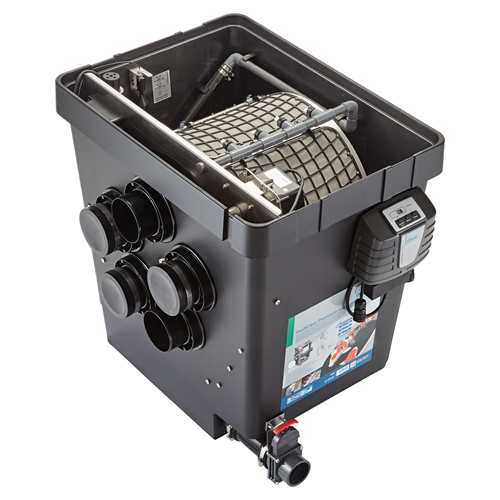

Oase ProfiClear Premium DF-L Gravity OC
With Oase ProfiClear Premium DF-L Gravity OC you get professional technology through the gravity-fed rotating Drum Filter that accepts flow rates up to 33,000 litres per hour. This filter by Oase introduces over three years of development; the drum filter module provides deep bed filtration to 60 microns and the moving bed module contains Hel-X bio media for intelligent decomposition of pollutants and nutrients. This outstanding, high performance filter also has a sophisticated plug & play microcontroller which digitally displays the pond water temperature and handles the self cleaning function for unique, maintenance free operation.
Product Features:
- Modern modular filter system for professional water quality where space is at a minimum
- Mature, professional technology with more than three years of development time
- Filtration with a filter capacity to 60 µm
- Automatic self-cleaning
- A microcontroller system, suitable for outdoor use, monitors and controls the functions
- Individually removable sieve elements (no tools required) and free-wheeling functions for easy access to the drum
- Particularly quiet in operation
- Quality high-pressure pump for flushing the drum in the scope of delivery
- Connection options for the OASE Control system
- Excellent decomposition rates of ammonium, ammonia, nitrite and nitrate
- Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit
- Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
- Outstanding filter capacity with intelligent control functions
- Intelligent self-cleaning function for unique maintenance-free operation (drum filter module)
- Flexible adaptation of the filter system to individual requirements (individual module)
- Innovative and reliable product “Made in Germany” (except pressure pump)
- Full flexibility for the connection with up to 4 × DN 110 inlets
- Full design freedom with just 11.5 cm installation height above the water level
- An additional sensor detects failure of the transfer pump and reports this via the display or the OASE Control app
- Flow capacity up to 33 m³/h
*Suitable for Ponds 200000 litres, fish ponds 100000 litres and Koi 45000 litres.
TECHNICAL DATA:
| Dimensions (L x W x H) | mm | 830 x 600 x 820 |
|---|---|---|
| Rated voltage | 230 V / 50 Hz | |
| Power consumption | W | 5 |
| Power consumption, cleaning | W | 1050 |
| Cable length | m | 2.00 + 2.00 |
| Net weight | kg | 76.00 |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| Control unit | Microcontroller | |
| Temperature display | Digital | |
| Coarse debris extraction | µm | 60 |
| Number of nozzles/rinse quantity | 4 x 2.5 l/min | |
| Scavenging pump | 6 bar | |
| Automatic rinsing system | manually, Sensor, Time interval | |
| Number of sieve elements | Units | 8 |
| Filter intake surface | cm2 | 4200 |
| Material | GRP Duroplast/stainless steel | |
| Number of inlets | Units | 4 |
| Inlet connections | DN 110 | |
| Number of outlets | Units | 2 |
| Outlet connections | DN 150 | |
| Sludge discharge connections | DN 75, DN 110 | |
| Flush trough connection | DN 110 | |
| Connection to | Bitron Gravity | |
| Min. flow rate | l/h | 10000 |
| Max. flow rate | l/h | 33000 |
| Installation height above water level | cm | 11.0 |
| Possible water level difference | -20 mm | |
| Type of use | Gravity fed system | |
| Other | Pollutant discharge incl. slide valve |
