Burtons Drums

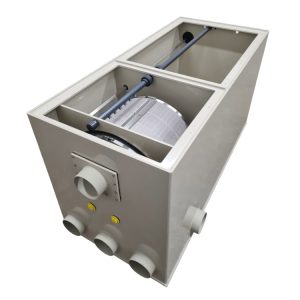

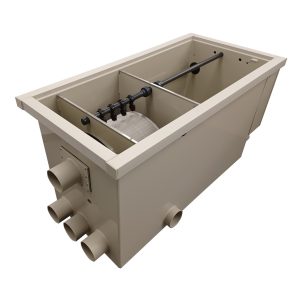

Burtons BD 300 Combi Pond Drum Filter

It houses all the same technology as a normal BD 300 but has a built in Bio-Chamber suitable for up to 100lts of Fluidised Media or any other biological Media that is preferred for example Jap-Mat or Ceramic Media. As standard in the Burtons range, these drums come with a 60 micron screen, and a weather proof auto control box which now comes complete with our socket panel as standard which means you can just simply plug in your UVs and pumps straight in to the sockets for easy installation. These drums feature 3 x 110mm inlets and 3 x 110mm outlets. Plus 2 x 110mm additional outlets before the bio section which are on each side of the unit. The BD 300 Combi can handle upto 35,000ltr per hour though the drum section. We would recommend taking no more than 20,000 ltrs from the bio section outlets, if you want more flow we have added outlets either side to pull the additional flow. Maximum flow rate 35,000ltr per hour for gravity fed systems, 25,000 ltr per hour for pump fed. 2 x 20-watt Uvs can be added. Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.

Description:

• Now including our Socket Panel as standard
• 60 micron screen
• 35,000 ltr per hour flowrate though drum section for gravity fed systems, 25,000ltr for pump fed.
• 3 x 110mm inlets
• 3 x 110mm outlets, plus 2 x 110mm additional outlets before the bio section which are on each side of the unit.
• 2 x 20-watt Uvs can be added. Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.
• Low wattage wash pump included and pre fitted
• Low energy consumption 1.3watts in standby mode and 150 watts when cleaning.
• (WHL) 658 x 740 x 1480 (MM).

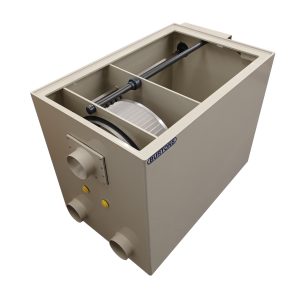

Burtons BD-150 Combi Pond Drum Filter

The BD-150 Combi Pond Drum Filter is the perfect filter for any smaller pond or quarantine system (up to 2000 gallons). With its 150mm long mesh screen this unit has a maximum flowrate of 15,000 lph. Recommended flow rate is 8,000-10,000 lph. It houses all the same technology as our larger units but has a built in Bio-Chamber suitable for up to 100lts of Fluidised Media or any other Biological Media that is preferred for example Jap-Mat or Ceramic Media. This drum come with a 60 micron screen, and Bluetooth technology enabling you to control your drum via your phone! It comes complete with two single plug sockets to control your main pump and UV which means installation has never been so simple. 1 x 10-watt Uv can be added. (2nd 10-watt Uv can be added if connected to the Uv plug socket outlet) Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.

Description:

• Now with Bluetooth Technology
• Water Height 170mm from the top of unit
• Increased fluidised chamber meaning more fluidised media
• Including Socket Panel for Pump and UV as standard
• 60 micron screen
• Max flow 15,000lph recommended flow rate 8,000- 10,000 lph
• 2 x 110mm inlets
• 2 x 110mm outlets
• 1 x 10 watt Uv can be added. (2nd 10 watt Uv can be added if connected to the Uv plug socket outlet)
• Low energy consumption, 1.3watts in standby mode and 150 watts when cleaning.
• Low wattage wash pump included and pre fitted to drum
• Solid stainless steel drum and gears
• App works on most smart phones and tablets
• 600mm W x 720mm H x 1120mm L

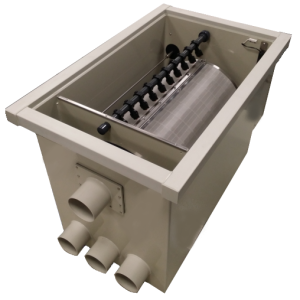

Burtons BD-700 Pond Drum Filter

As standard in the Burtons range, these drums come with a 60-micron screen, and a weatherproof auto control box, which now comes complete with our socket panel as standard which means you can just simply plug your UV and pumps straight in to the sockets for easy installation. These drums feature 3 x 110mm inlets and 3 x 110mm outlets. The Burtons BD-300 Pond Drum Filter is fitted with a cover switch, which cuts power to the drum motor and UV when the lid is lifted off.

Description:

• As standard in the Burtons range, these drums come with a 60-micron screen, and a weatherproof auto control box, which now comes complete with our socket panel as standard which means you can just simply plug your UV and pumps straight in to the sockets for easy installation.
• These drums feature 3 x 110mm inlets and 3 x 110mm outlets.
• This drum filter is fitted with a cover switch, which cuts power to the drum motor and UVs when the lid is lifted off.
• Low wattage wash pump included and pre fitted.
• Installation height above water level is 25cm.
• 2 x 80-watt Uvs can be added. Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.
• Suitable for flow rates up to 75,000lph for gravity fed systems and 55,000lph for pump fed systems.
• Low energy consumption 1.3watts in standby mode and 200 watts when cleaning.
• Dimensions (WHL) 658 x 740 x 1180 (MM).

Burtons Drum BD-300 Cube with UV

As standard in the Burtons range, these drums come with a 60 micron screen, drive motor, wash pump and all the moving parts from the larger Burtons drum filters. These drums feature 2 x 110mm inlets and 2 x 110mm outlets. The Burtons Drum BD-300 Cube with UV is fitted with a cover switch, which cuts power to the drum motor and UV when the lid is lifted off. This drum is only available for gravity fed systems.

Description:

• As standard in the Burtons range, these drums come with a 60 micron screen, drive motor, wash pump and all the moving parts from the larger Burtons drum filters.
• These drums feature 2 x 110mm inlets and 2 x 110mm outlets.
• This drum filter is fitted with a cover switch, which cuts power to the drum motor and UV when the lid is lifted off.
• This drum is only available for gravity fed systems.
• Installation height above water level is 170 mm.
• Suitable for flow rates up to 30,000lph.
• Low energy consumption 1.3watts in standby mode and 150 watts when cleaning.
• Low wattage wash pump included and pre fitted.

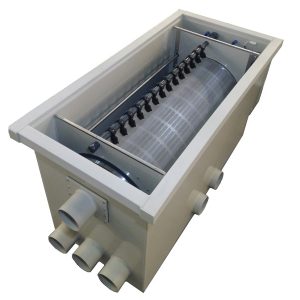

Burtons TF-1000 Pond Drum Through-Flow Filter

As standard in the Burtons range, these drums come with a 60-micron screen, and a weatherproof auto control box, which now comes complete with our socket panel as standard which means you can just simply plug your UV and pumps straight in to the sockets for easy installation. Our through-flow TF drum filters feature more inlets and outlets than our standard range. They have 3 x 110mm inlets on the front and the back, and 2 x 110mm outlets on either side of the drum.

Description:

• As standard in the Burtons range, these drums come with a 60 micron screen, and a weather proof auto control box, which now comes complete with our socket panel as standard which means you can just simply plug your UV and pumps straight in to the sockets for easy installation.
• Our through-flow TF drum filters feature more inlets and outlets than our standard range.
• They have 3 x 110mm inlets on the front and the back, and 2 x 110mm outlets on either side of the drum.
• The waste shoot also features an additional 2 cleaning tips to avoid build up of waste in the internal end of the waste chute.
• This drum filter is fitted with a cover switch, which cuts power to the drum motor and UVs when the lid is lifted off.
• Low wattage wash pump included and pre fitted.
• Installation height above water level is 25cm.
• 2 x 80-watt Uvs can be added. Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.
• Suitable for flow rates up to 110,000lph for gravity fed systems and 75,000lph for pump fed systems.
• Low energy consumption 1.3watts in standby mode and 250 watts when cleaning.
• (WHL) 658 x 740 x 1480 (MM).

Burtons TF-500 Pond Drum Through-Flow Filter

As standard in the Burtons range, these drums come with a 60-micron screen, and a weatherproof auto control box, which now comes complete with our socket panel as standard which means you can just simply plug your UV and pumps straight in to the sockets for easy installation. Our through-flow TF drum filters feature more inlets and outlets than our standard range. They have 3 x 110mm inlets on the front and the back, and 2 x 110mm outlets on either side of the drum.

Description:

• As standard in the Burtons range, these drums come with a 60-micron screen, and a weatherproof auto control box, which now comes complete with our socket panel as standard which means you can just simply plug your UV and pumps straight in to the sockets for easy installation.
• Our through-flow TF drum filters feature more inlets and outlets than our standard range.
• They have 3 x 110mm inlets on the front and the back, and 2 x 110mm outlets on either side of the drum.
• The waste chute also features an additional 2 cleaning tips to avoid build-up of waste in the internal end of the chute.
• This drum filter is fitted with a cover switch, which cuts power to the drum motor and UVs when the lid is lifted off.
• Low wattage wash pump included and pre fitted.
• Installation height above water level is 25cm.
• 2 x 40-watt Uvs can be added. Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.
• Suitable for flow rates up to 55,000lph for gravity fed systems and 40,000lph for pump fed systems.
• Low energy consumption 1.3watts in standby mode and 200 watts when cleaning.
• (WHL) 658 x 740 x 990 (MM).
