Burtons BD-150 Combi Pond Drum Filter

£2,600.00 inc. VAT

Burtons BD-150 Combi Pond Drum Filter

The BD-150 Combi Pond Drum Filter is the perfect filter for any smaller pond or quarantine system (up to 2000 gallons). With its 150mm long mesh screen this unit has a maximum flowrate of 15,000 lph. Recommended flow rate is 8,000-10,000 lph. It houses all the same technology as our larger units but has a built in Bio-Chamber suitable for up to 100lts of Fluidised Media or any other Biological Media that is preferred for example Jap-Mat or Ceramic Media. This drum come with a 60 micron screen, and Bluetooth technology enabling you to control your drum via your phone! It comes complete with two single plug sockets to control your main pump and UV which means installation has never been so simple. 1 x 10-watt Uv can be added. (2nd 10-watt Uv can be added if connected to the Uv plug socket outlet) Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.

Description:

  • Now with Bluetooth Technology
  • Water Height 170mm from the top of unit
  • Increased fluidised chamber meaning more fluidised media

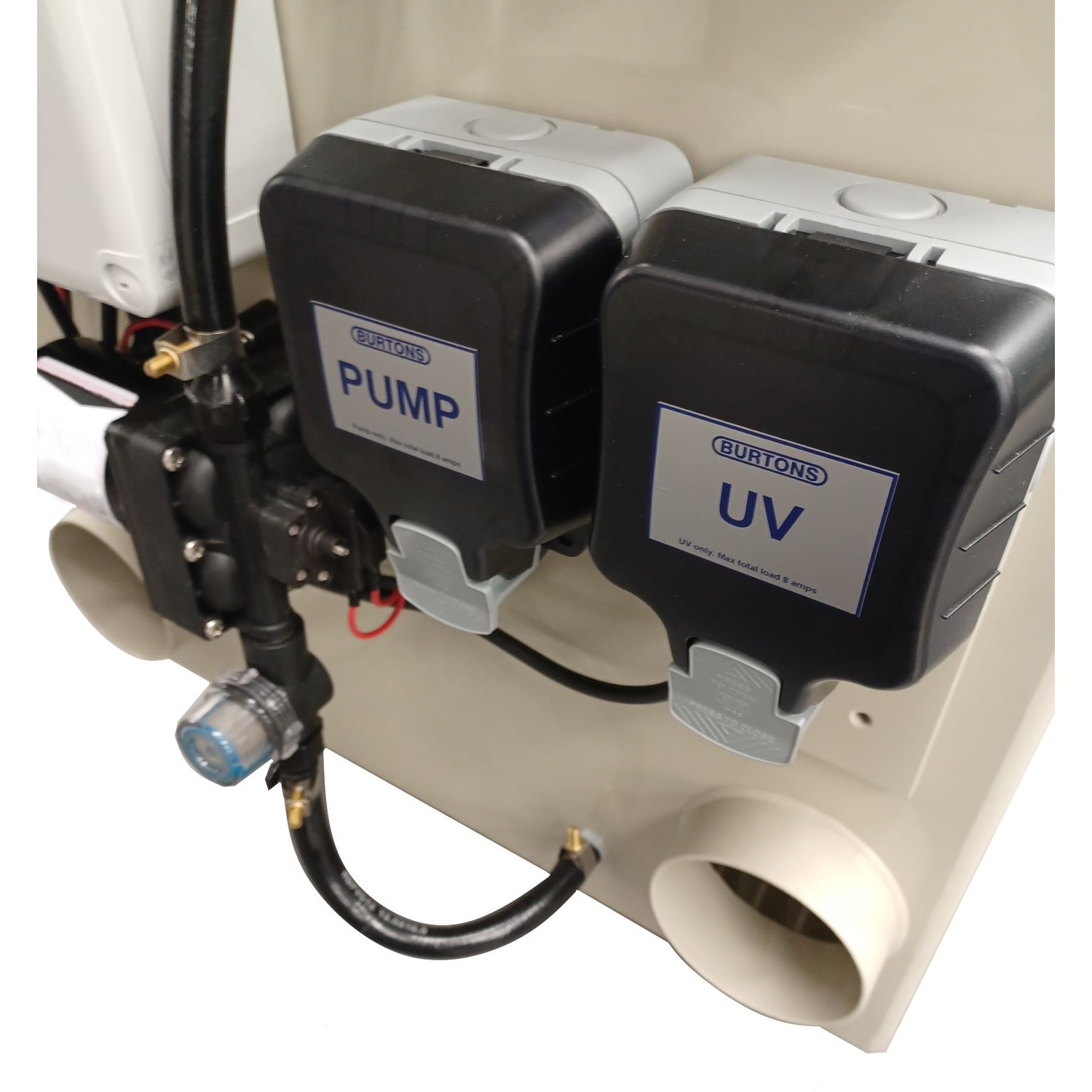

  • Including Socket Panel for Pump and UV as standard
  • 60 micron screen
  • Max flow 15,000lph recommended flow rate 8,000- 10,000 lph
  • 2 x 110mm inlets
  • 2 x 110mm outlets
  • 1 x 10 watt Uv can be added. (2nd 10 watt Uv can be added if connected to the Uv plug socket outlet)
  • Low energy consumption, 1.3watts in standby mode and 150 watts when cleaning.
  • Low wattage wash pump included and pre fitted to drum
  • Solid stainless steel drum and gears

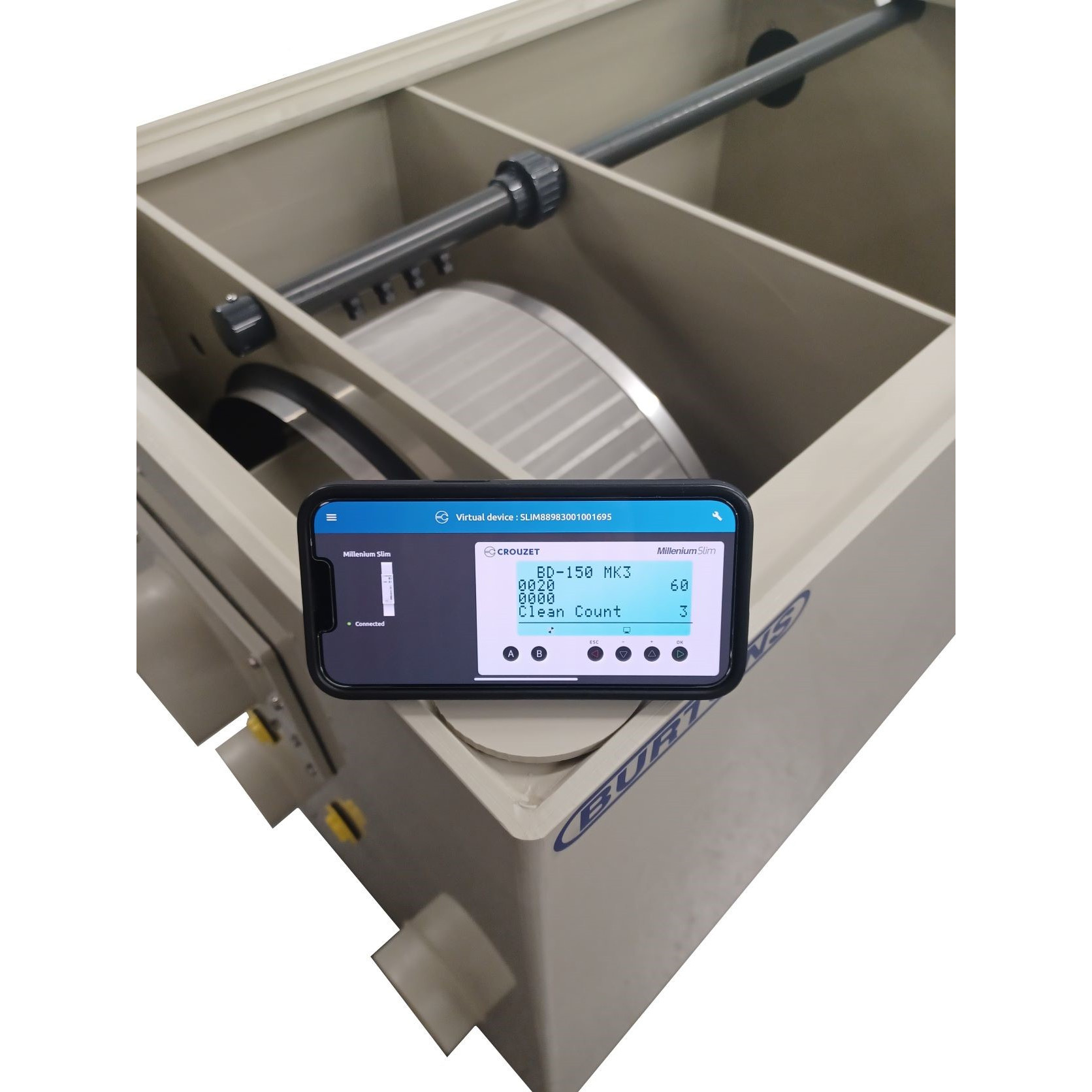

  • App works on most smart phones and tablets

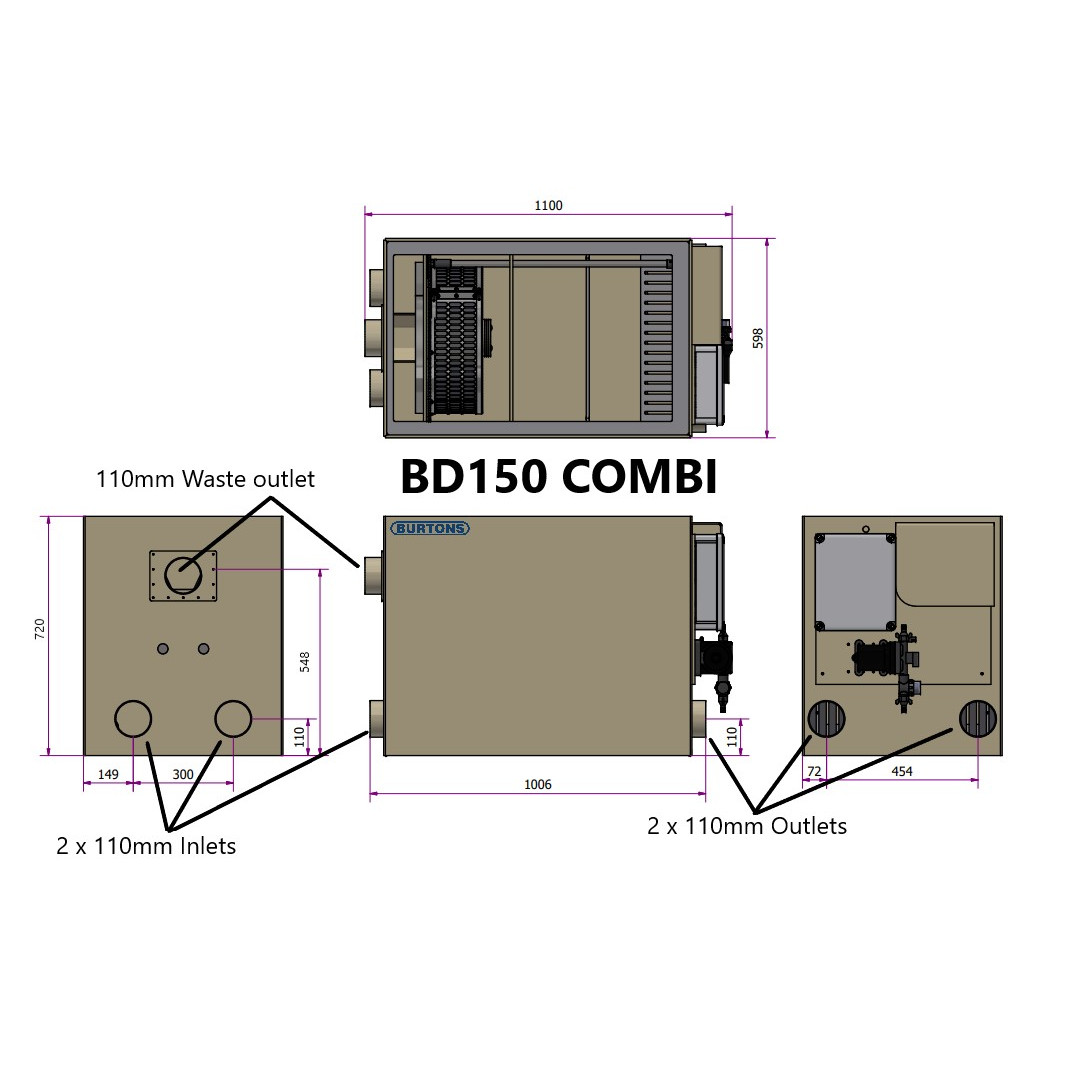

  • 600mm W x 720mm H x 1120mm L
SKU: BA-BD-150-COMBI-MK3 Category:

Description

Burtons BD-150 Combi Pond Drum Filter

The BD-150 Combi Pond Drum Filter is the perfect filter for any smaller pond or quarantine system (up to 2000 gallons). With its 150mm long mesh screen this unit has a maximum flowrate of 15,000 lph. Recommended flow rate is 8,000-10,000 lph. It houses all the same technology as our larger units but has a built in Bio-Chamber suitable for up to 100lts of Fluidised Media or any other Biological Media that is preferred for example Jap-Mat or Ceramic Media. This drum come with a 60 micron screen, and Bluetooth technology enabling you to control your drum via your phone! It comes complete with two single plug sockets to control your main pump and UV which means installation has never been so simple. 1 x 10-watt Uv can be added. (2nd 10-watt Uv can be added if connected to the Uv plug socket outlet) Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.

Description:

  • Now with Bluetooth Technology
  • Water Height 170mm from the top of unit
  • Increased fluidised chamber meaning more fluidised media
  • Including Socket Panel for Pump and UV as standard
  • 60 micron screen
  • Max flow 15,000lph recommended flow rate 8,000- 10,000 lph
  • 2 x 110mm inlets
  • 2 x 110mm outlets
  • 1 x 10 watt Uv can be added. (2nd 10 watt Uv can be added if connected to the Uv plug socket outlet)
  • Low energy consumption, 1.3watts in standby mode and 150 watts when cleaning.
  • Low wattage wash pump included and pre fitted to drum
  • Solid stainless steel drum and gears
  • App works on most smart phones and tablets
  • 600mm W x 720mm H x 1120mm L
Technical Data:
SKU BA-BD-150-COMBI-MK3
Manufacturer Burtons
Product Dimensions (mm) 600mm W x 720mm H x 1120mm L
Standard Guarantee period 2 Year
Flow Rate 15k lph max, recommended 8000 – 10000 lph
Number of Spray Tips 4
Inlets/Outlets 2 x 110mm Inlets, 2 x 110mm Outlets
