Burtons BD-500 Pond Drum Filter

Burtons TF-1000 Pond Drum Through-Flow Filter

As standard in the Burtons range, these drums come with a 60-micron screen, and a weatherproof auto control box, which now comes complete with our socket panel as standard which means you can just simply plug your UV and pumps straight in to the sockets for easy installation. Our through-flow TF drum filters feature more inlets and outlets than our standard range. They have 3 x 110mm inlets on the front and the back, and 2 x 110mm outlets on either side of the drum.

Description:

• As standard in the Burtons range, these drums come with a 60 micron screen, and a weather proof auto control box, which now comes complete with our socket panel as standard which means you can just simply plug your UV and pumps straight in to the sockets for easy installation.
• Our through-flow TF drum filters feature more inlets and outlets than our standard range.

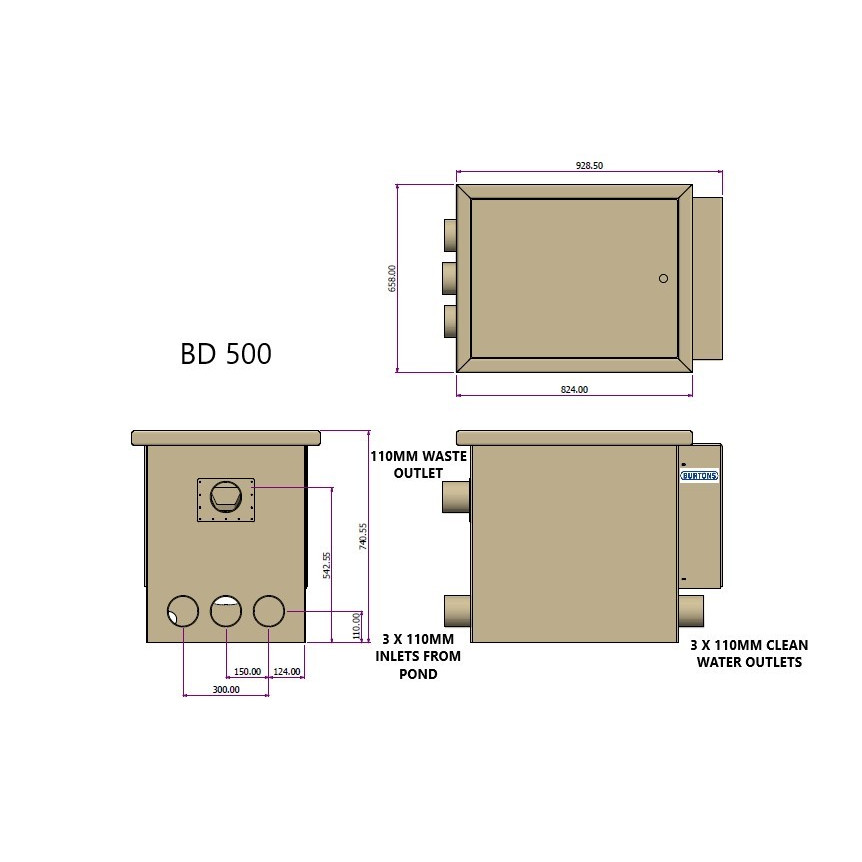

• They have 3 x 110mm inlets on the front and the back, and 2 x 110mm outlets on either side of the drum.
• The waste shoot also features an additional 2 cleaning tips to avoid build up of waste in the internal end of the waste chute.
• This drum filter is fitted with a cover switch, which cuts power to the drum motor and UVs when the lid is lifted off.
• Low wattage wash pump included and pre fitted.
• Installation height above water level is 25cm.

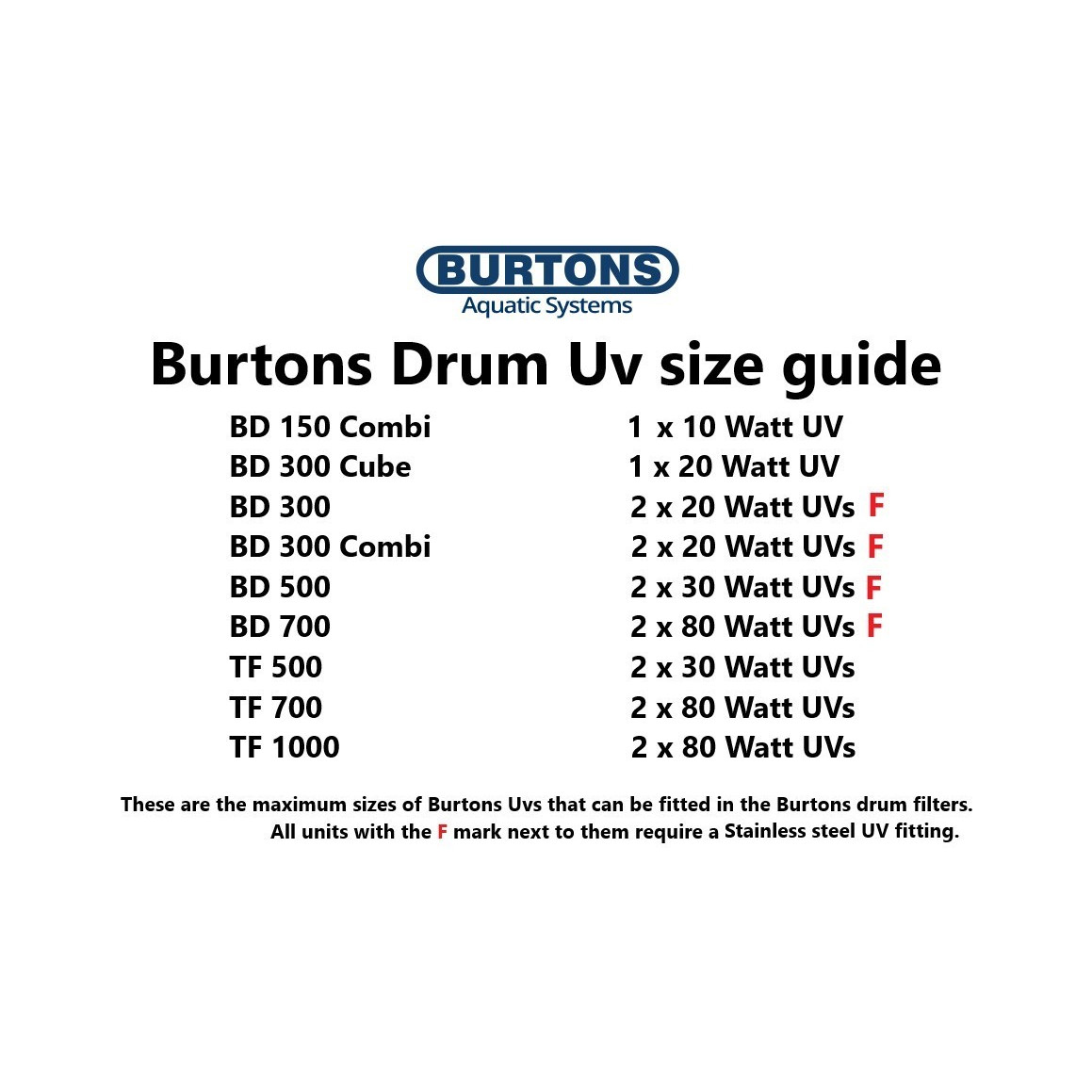

• 2 x 80-watt Uvs can be added. Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.
• Suitable for flow rates up to 110,000lph for gravity fed systems and 75,000lph for pump fed systems.
• Low energy consumption 1.3watts in standby mode and 250 watts when cleaning.
• (WHL) 658 x 740 x 1480 (MM).

Burtons FB Bio chamber

The 1100 FB Bio Tank is the perfect addition to the Burtons range of Bio Tanks. The Burtons FB Bio chamber can hold up to 200 lts of fluidised media. We recommend using a 50/50 mix of our Bio Flo and Bio Tube media which are available in 25ltr and 50ltr bags.

Description:

• The 1100 FB Bio Tank is the perfect addition to the Burtons range of Bio Tanks.
• This unit can hold up to 200 lts of fluidised media. We recommend using a 50/50 mix of our Bio Flo and Bio Tube media which are available in 25ltr and 50ltr bags.
• Recommended air pump 80lph.
• 1100 Bio tank, 1180mmL x 660mmW x 745mmH
• Max flow rate 20,000lph, recommended flow rate 10,000-12,000lph.
• 2 x fixing points for air stones (air stones not included).
• Comes complete with lid.

Burtons BD 300 Combi Pond Drum Filter

It houses all the same technology as a normal BD 300 but has a built in Bio-Chamber suitable for up to 100lts of Fluidised Media or any other biological Media that is preferred for example Jap-Mat or Ceramic Media. As standard in the Burtons range, these drums come with a 60 micron screen, and a weather proof auto control box which now comes complete with our socket panel as standard which means you can just simply plug in your UVs and pumps straight in to the sockets for easy installation. These drums feature 3 x 110mm inlets and 3 x 110mm outlets. Plus 2 x 110mm additional outlets before the bio section which are on each side of the unit. The BD 300 Combi can handle upto 35,000ltr per hour though the drum section. We would recommend taking no more than 20,000 ltrs from the bio section outlets, if you want more flow we have added outlets either side to pull the additional flow. Maximum flow rate 35,000ltr per hour for gravity fed systems, 25,000 ltr per hour for pump fed. 2 x 20-watt Uvs can be added. Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.

Description:

• Now including our Socket Panel as standard
• 60 micron screen
• 35,000 ltr per hour flowrate though drum section for gravity fed systems, 25,000ltr for pump fed.
• 3 x 110mm inlets
• 3 x 110mm outlets, plus 2 x 110mm additional outlets before the bio section which are on each side of the unit.
• 2 x 20-watt Uvs can be added. Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.
• Low wattage wash pump included and pre fitted
• Low energy consumption 1.3watts in standby mode and 150 watts when cleaning.
• (WHL) 658 x 740 x 1480 (MM).
