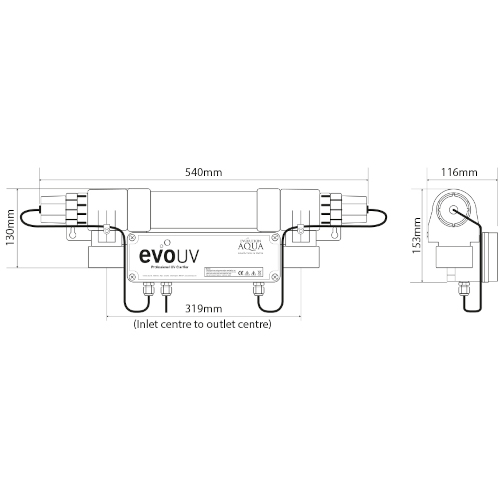

  • Evolution Aqua Evo UV 15-25 watt dimensions
  • Evolution Aqua Evo UV size gide

Evolution Aqua Evo UV 15 Watt

£124.95 inc. VAT £112.46 inc. VAT

Evolution Aqua Evo UV 15 Watt (2021 Model)

Evolution Aqua’s pond UV clarifiers have been completely re-designed for 2021, to deliver even greater performance and improved serviceability. Our range of six evoUV pond clarifiers are made using the very latest technology and design techniques, ensuring there is even water flow through the unit, and optimum ultraviolet light penetration. One new feature is the ease of the serviceability of the evo UV. Changing bulbs, quartz sleeves or replacing a failed ballast are quick and simple to do. The evo UV is simple to install, with universal mounting plates allowing you to fix the unit horizontally or vertically, or at any angle you choose. Read more

Features:

  • IP Rating of IPX5
  • Easy to maintain, easy to install
  • Ballast located in a fully water-tight cover
  • Connects to flexi-hose or rigid pipework
  • 6 models; 15W, 25W, 30W, 55W, 75W & 110W
  • Eradicates green water in garden ponds
  • Features highly efficient ballasts
SKU: UV5667 Category:

Description

Evolution Aqua Evo UV 15 Watt (2021 Model)

Evolution Aqua’s pond UV clarifiers have been completely re-designed for 2021, to deliver even greater performance and improved serviceability. Our range of six evoUV pond clarifiers are made using the very latest technology and design techniques, ensuring there is even water flow through the unit, and optimum ultraviolet light penetration. One new feature is the ease of the serviceability of the evo UV. Changing bulbs, quartz sleeves or replacing a failed ballast are quick and simple to do. The evo UV is simple to install, with universal mounting plates allowing you to fix the unit horizontally or vertically, or at any angle you choose.

The evo UV range of clarifiers have been designed to clear green water which is caused by single celled green algae and prevent it from returning. They will work alongside many different filtration systems but when used alongside Evolution Aqua’s pond filtration systems, the evo UV will help to deliver crystal clear and healthy pond water. Your evo UV professional quality UV can be connected to your pond pump and filter with flexible hose using the stepped hosetails provided, or you can install the unit using hard pipe.

Features:

  • IP Rating of IPX5
  • Easy to maintain, easy to install
  • Ballast located in a fully water-tight cover
  • Connects to flexi-hose or rigid pipework
  • 6 models; 15W, 25W, 30W, 55W, 75W & 110W
  • Eradicates green water in garden ponds
  • Features highly efficient ballasts

Specifications:

Model/  Max. pond size Max. flow rate Bulb Power Inlet/Outlet Fittings supplied
EVO15

15,000 Litres
3,300 UK Gallons
3,963 US Gallons









7,500 Litres/hr
1,650 UK Gallons/hr
1,982 US Gallons/hr









15W
(1 x 15W T8)







1½”

Threaded







2 x 1½”
Threaded

Hosetails

EVO25

20,000 Litres
4,400 UK Gallons
5,284 US Gallons









10,000 Litres/hr
2,200 UK Gallons/hr
2,642 US Gallons/hr









25W
(1 x 25W T8)









1½”

Threaded







2 x 1½”
Threaded

Hosetails

EVO30

30,000 Litres
6,600 UK Gallons
7,925 US Gallons









15,000 Litres/hr
3,300 UK Gallons/hr
3,962 US Gallons/hr









30W
(1 x 30W T8)









1½”

Threaded







2 x 1½”
Threaded

Hosetails

EVO55

55,000 Litres
12,100 UK Gallons
14,530 US Gallons









20,000 Litres/hr
4,400 UK Gallons/hr
5,284 US Gallons/hr









55W
(1 x 55W T8)









1½”

Threaded







2 x 1½”
Threaded

Hosetails

EVO75

75,000 Litres
16,500 UK Gallons
19,815 US Gallons









25,000 Litres/hr
5,500 UK Gallons/hr
6,605 US Gallons/hr









75W
(1 x 75W T8)









1½”

Threaded







2 x 1½”
Threaded

Hosetails

EVO110

75,000 Litres
16,500 UK Gallons
19,815 US Gallons









25,000 Litres/hr
5,500 UK Gallons/hr
6,605 US Gallons/hr









110W
(2 x 55W T8)









2″ Glue

Pressure









No Fittings

Supplied

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Manual





Evolution Aqua UV.pdf

Q & A

Ask a question
There are no questions yet

Additional information

Weight 6 kg
Dimensions 60 × 30 × 15 cm
