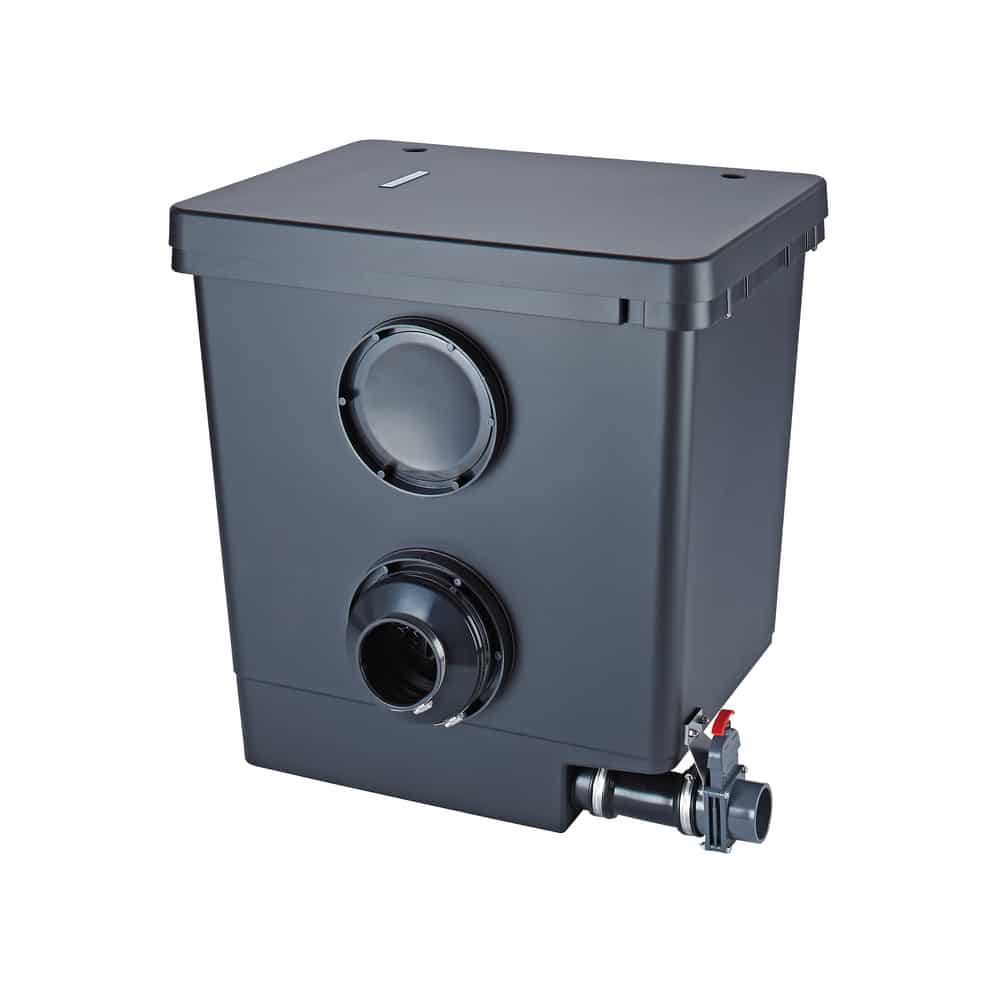

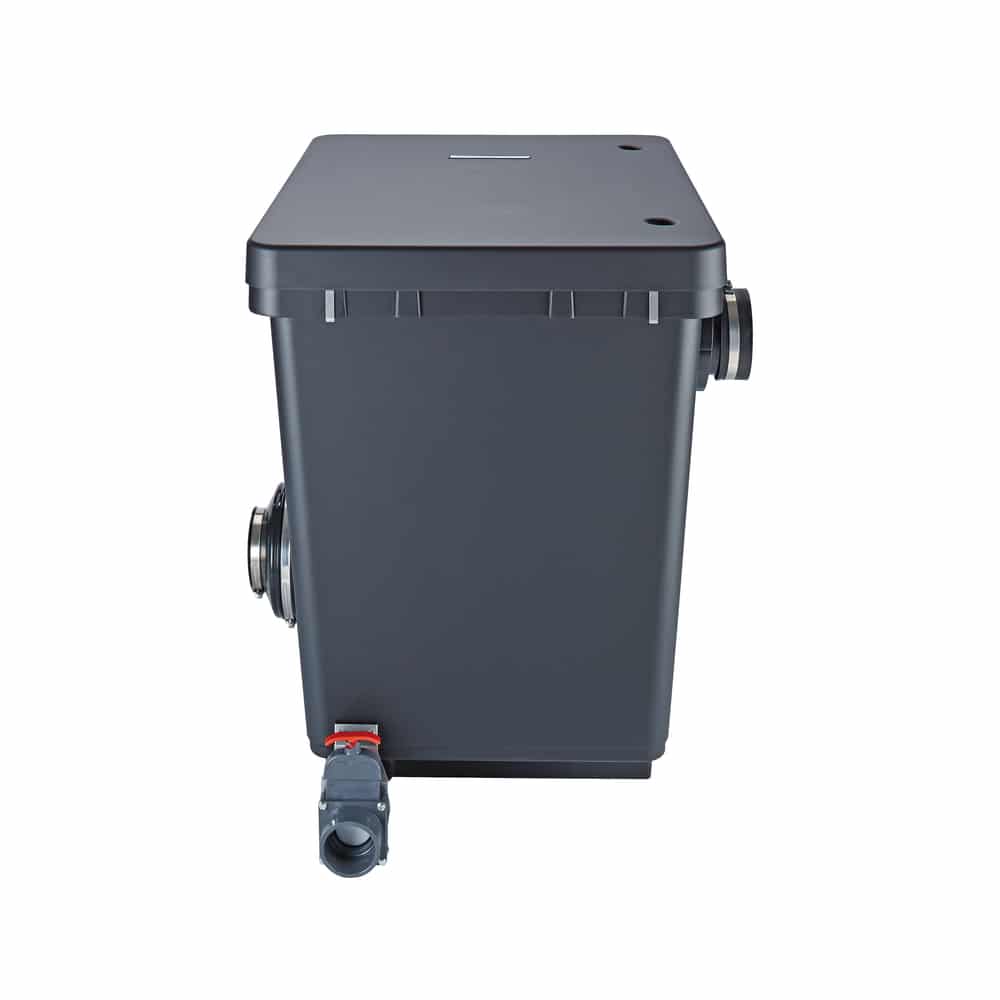

Oase ProfiClear Pump Chamber Compact/Classic

£991.99 inc. VAT £892.79 inc. VAT

Oase ProfiClear Pump Chamber Compact/Classic

The Oase ProfiClear Pump Chamber Compact/Classic is part of the ProfiClear modular filter system and can be used as a gravity version or for pumped systems (gravity feed line). It ensures the correct positioning of the filter feed pump. This reduces pressure losses, simplifies maintenance and winterisation of the pump and ensures standard-compliant installation in swimming ponds. A sedimentation chamber is located at the bottom of the module. Dirt collected in the sedimentation chamber is flushed out via the floor drain. The pump chamber has two inlets suitable for ProfiClear Classic and ProfiClear Premium Compact. Read more

Features:

  • Professional compact drum filter as inexpensive alternative for smaller ponds, particularly koi ponds
  • Minimal space requirements and effective integration
SKU: 42913 Category:

Description

Oase ProfiClear Pump Chamber Compact/Classic

The Oase ProfiClear Pump Chamber Compact/Classic is part of the ProfiClear modular filter system and can be used as a gravity version or for pumped systems (gravity feed line). It ensures the correct positioning of the filter feed pump. This reduces pressure losses, simplifies maintenance and winterisation of the pump and ensures standard-compliant installation in swimming ponds. A sedimentation chamber is located at the bottom of the module. Dirt collected in the sedimentation chamber is flushed out via the floor drain. The pump chamber has two inlets suitable for ProfiClear Classic and ProfiClear Premium Compact. 2x DN110 outlets allow the energy-saving use of up to 2 × Bitron Gravity UVC devices. The 83 × 67 × 82 cm (L × W × H) pump chamber module is made of high-quality duroplast.

Features:

  • Professional compact drum filter as inexpensive alternative for smaller ponds, particularly koi ponds
  • Minimal space requirements and effective integration

Characteristics:

  • High separation efficiency due to deep filtration of up to 60 μm
  • Maximum flexibility in the connection through 2 x DN110 and 2″ transitions
  • For integration in the ProfiClear Premium Compact and ProfiClear Classic gravity-fed systems
  • Reduction of pressure losses
  • Safe and standard conformant set-up at swim ponds
  • Easy maintenance and winter care
  • Protection against excessive silt
  • Debris that accumulates in the sediment tank is flushed out via the bottom drain

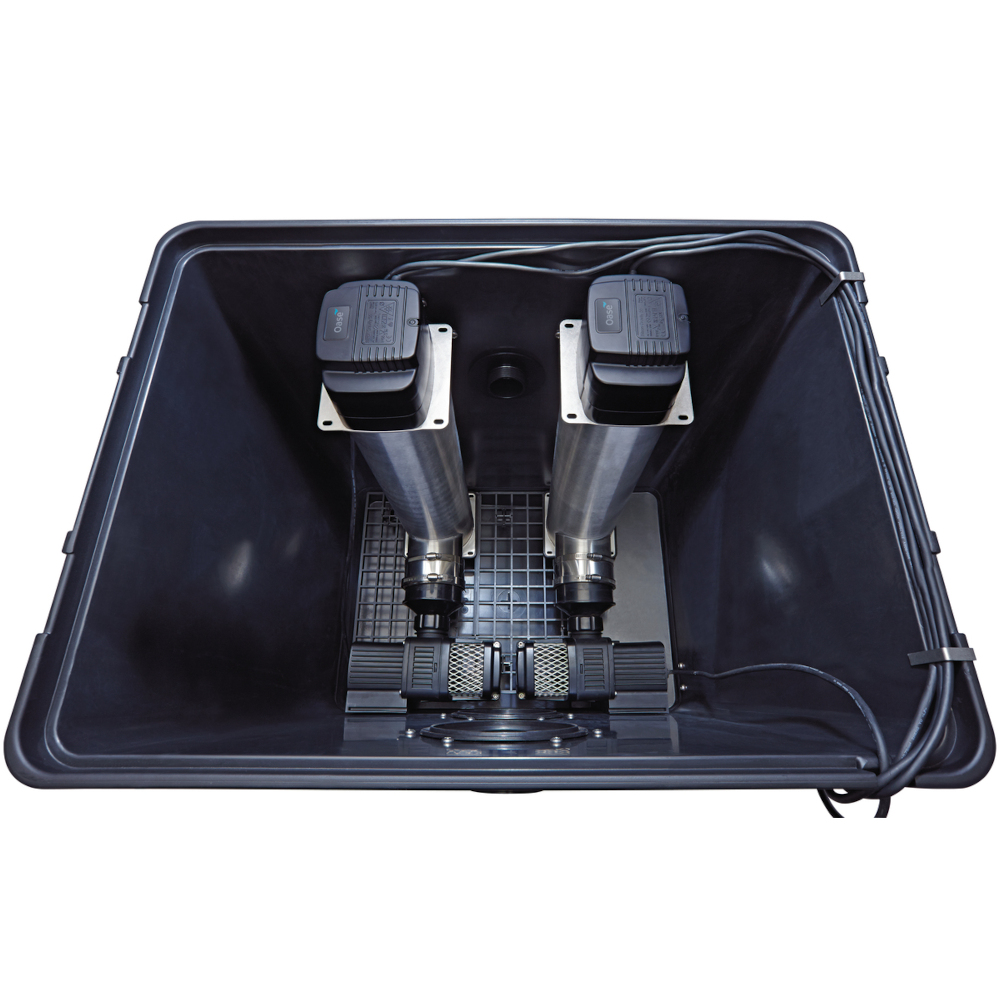

  • Enables space-saving and energy-efficient integration of up to two AquaMax Eco Gravity and Bitron Gravity units
  • Maximum flexibility in the connection through DN 110 and 2″ container outlets
  • For integration in the ProfiClear Premium Compact and ProfiClear Classic gravity-fed systems
Technical Data:
Dimensions (L x W x H) mm 830 x 665 x 820
Net weight kg 35.00
Guarantee (+ request guarantee) Years 2 + 1
Number of sieve elements Units 2
Material GRP Duroplast/stainless steel
Number of inlets Units 2
Inlet connections 1 x DN 185 + 2 x DN 110
Number of outlets Units 3
Outlet connections 1 x 2″ / 2 x DN 110
Sludge discharge connections DN 75
Connection to AquaMax Eco Gravity, Bitron Gravity, ProfiClear Classic
Max. flow rate l/h 25000
Installation height above water level cm 10.5
Type of use Gravity fed system, Pump fed system
Other Pollutant discharge incl. slide valve

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Manual





Oase ProfiClear Pump Chamber Compact/Classic manual.pdf

Q & A

Ask a question
There are no questions yet

Additional information

Weight 35 kg
Dimensions 83 × 67 × 82 cm
