Oase ProfiClear XL Discharge Module - Gravity

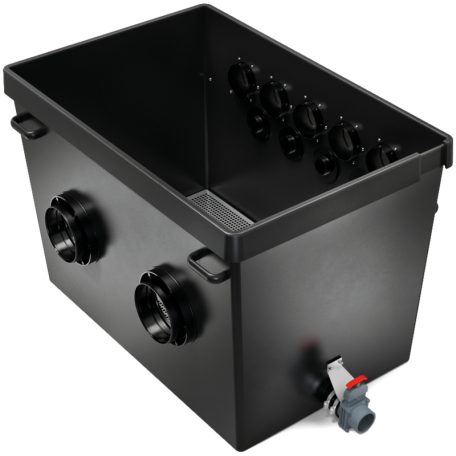

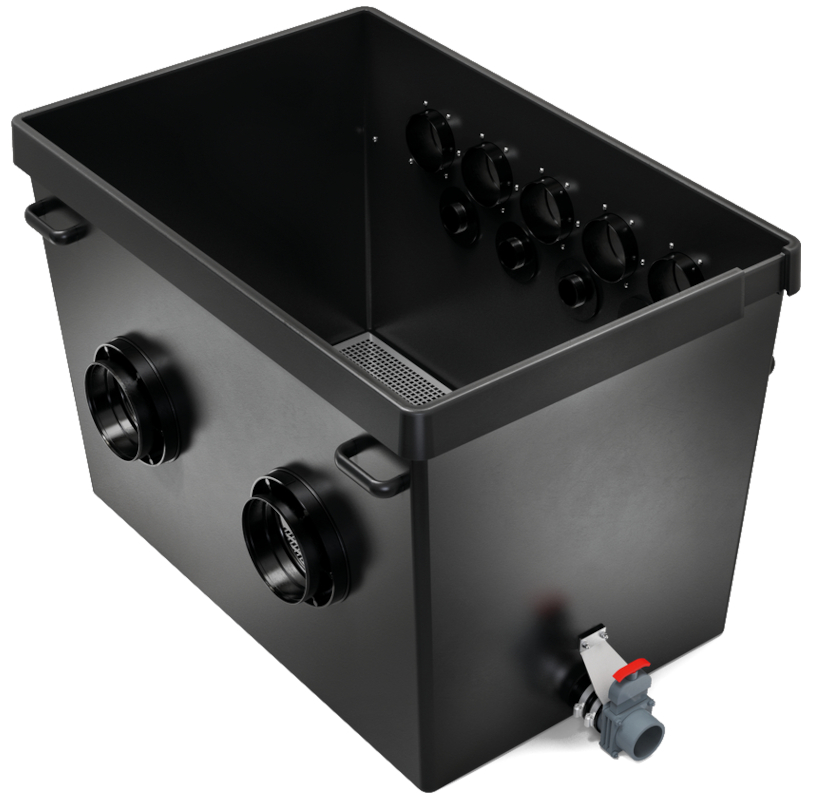

  • Oase ProfiClear XL Discharge Module - Gravity
  • Oase ProfiClear XL Discharge Module - Gravity inside

Oase ProfiClear XL Discharge Module – Gravity

£2,270.99 inc. VAT

Oase ProfiClear XL Discharge Module – Gravity

The new ProfiClear XL Gravity Discharge Module has been designed to house pumps and UV clarifiers at the final stage of the gravity fed filtration scenario whilst supplying multiple outlets to return the processed water back to the pond.

The XL Gravity Discharge Module features 9 outlets (4 x 2” BSPM Threaded and 5 x DN110) for returning the water flow with minimal restriction and allowing a choice of either flexible hose return or rigid pipe. The internals of the module are specifically designed for mounting the AquaMax Eco Titanium pumps and the new Bitron Premium UV Clarifiers.

Features:

  • Mature, professional technology with more than three years of development time
  • Modern modular filter system for professional water quality where space is at a minimum

Characteristics:

  • Mature, professional technology with more than three years of development time
  • Larger pump and UVC chamber for easy integration of: AquaMax Eco Expert and AquaMax Eco Titanium filter pumps and new Bitron Premium UVC clarifiers
  • Greater flexibility in connection due to 5 x DN110 and 4 x Tradux (2″ inlets)
  • Integrated bottom drain with high quality, finely engineered slide valve
  • Flexible adaptation of the filter system to individual requirements (individual module)
  • Innovative and reliable product »Made in Germany«
SKU: (73368) Category:

Description

Oase ProfiClear XL Discharge Module – Gravity

The new ProfiClear XL Gravity Discharge Module has been designed to house pumps and UV clarifiers at the final stage of the gravity fed filtration scenario whilst supplying multiple outlets to return the processed water back to the pond.

The XL Gravity Discharge Module features 9 outlets (4 x 2” BSPM Threaded and 5 x DN110) for returning the water flow with minimal restriction and allowing a choice of either flexible hose return or rigid pipe. The internals of the module are specifically designed for mounting the AquaMax Eco Titanium pumps and the new Bitron Premium UV Clarifiers.

Features:

  • Mature, professional technology with more than three years of development time
  • Modern modular filter system for professional water quality where space is at a minimum

Characteristics:

  • Mature, professional technology with more than three years of development time
  • Larger pump and UVC chamber for easy integration of: AquaMax Eco Expert and AquaMax Eco Titanium filter pumps and new Bitron Premium UVC clarifiers
  • Greater flexibility in connection due to 5 x DN110 and 4 x Tradux (2″ inlets)
  • Integrated bottom drain with high quality, finely engineered slide valve
  • Flexible adaptation of the filter system to individual requirements (individual module)
  • Innovative and reliable product »Made in Germany«
Technical Data:
Dimensions (L x W x H) mm 1330 x 875 x 820
Net weight kg 87.00
Guarantee (+ request guarantee) Years 2 + 1
Material GRP Duroplast/stainless steel
Number of inlets Units 2
Inlet connections mm 180
Number of outlets Units 9
Outlet connections 4 x 2“ / 5 x DN 110
Sludge discharge connections DN 75
Min. flow rate l/h 25000
Max. flow rate l/h 66000
Connection to Bitron Premium, ProfiClear Premium DF-XL gravity, ProfiClear Premium XL Moving Bed
Installation height above water level cm 8.5
Type of use Gravity fed system
Other –
