Burtons Drum BD-300 Cube with UV

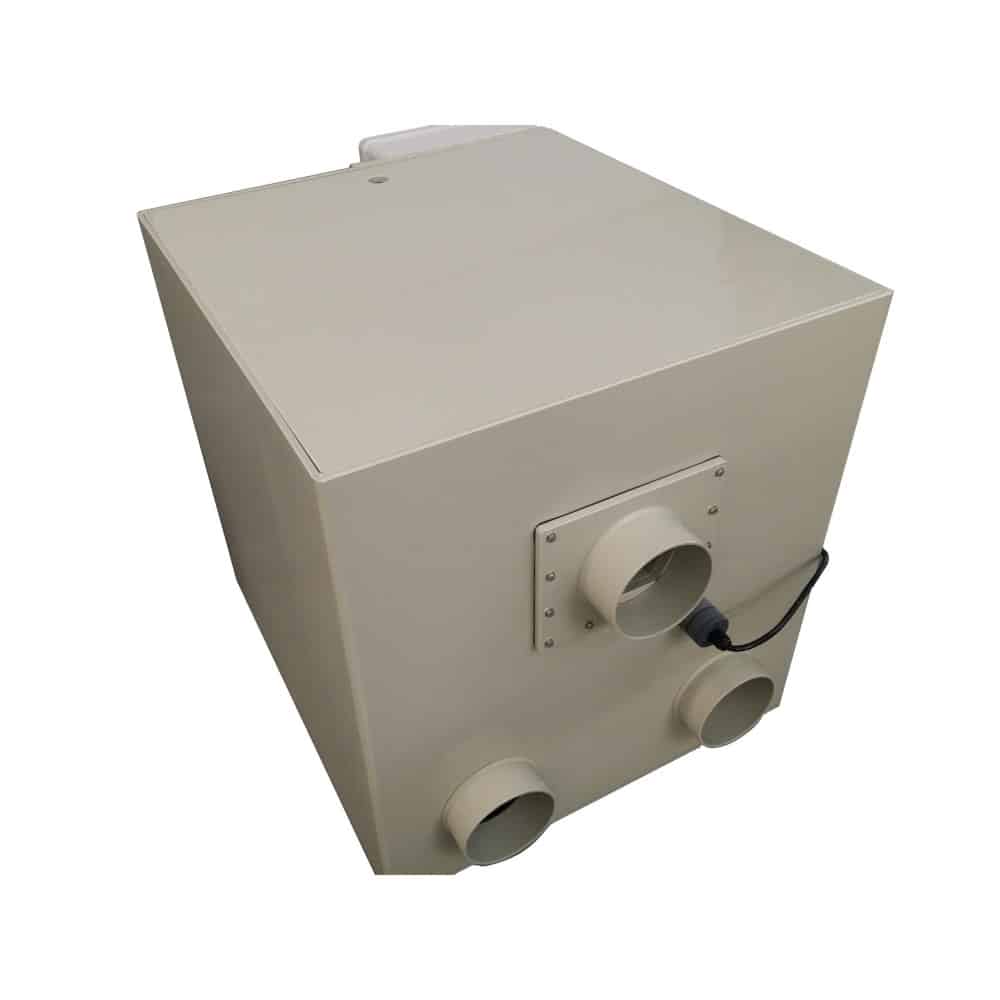

  • Burtons Drum BD-300 Cube with UV

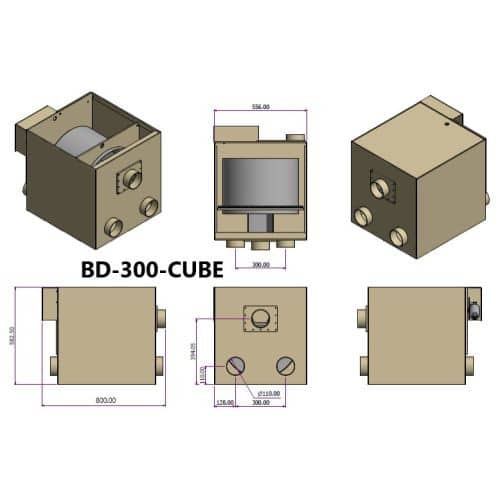

  • bd_300_cube_drawing_2

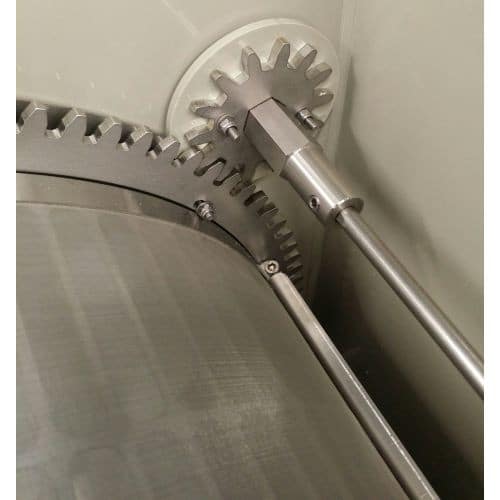

  • bd_stainless_gear_zoomed_in_1

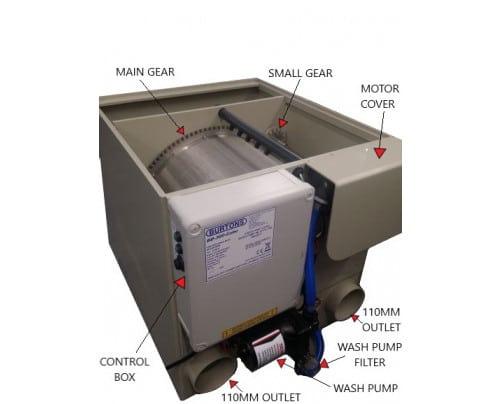

  • bd_300_cube_back_diagram_1

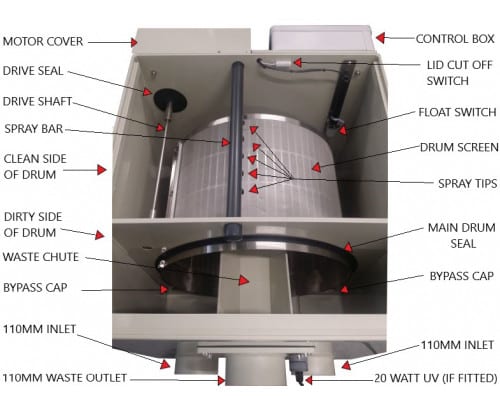

  • bd_300_cube_open_diagram_1

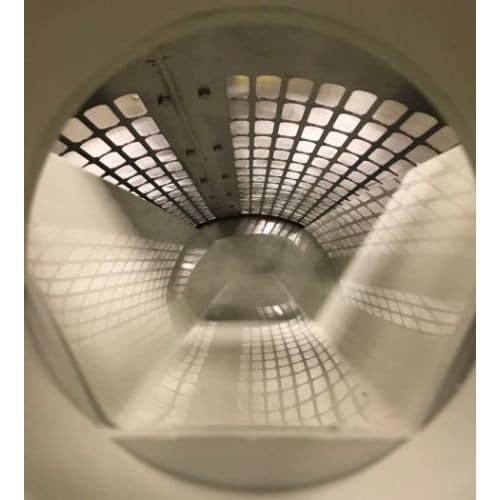

  • bd_inside_waste_chute_image_2021_2

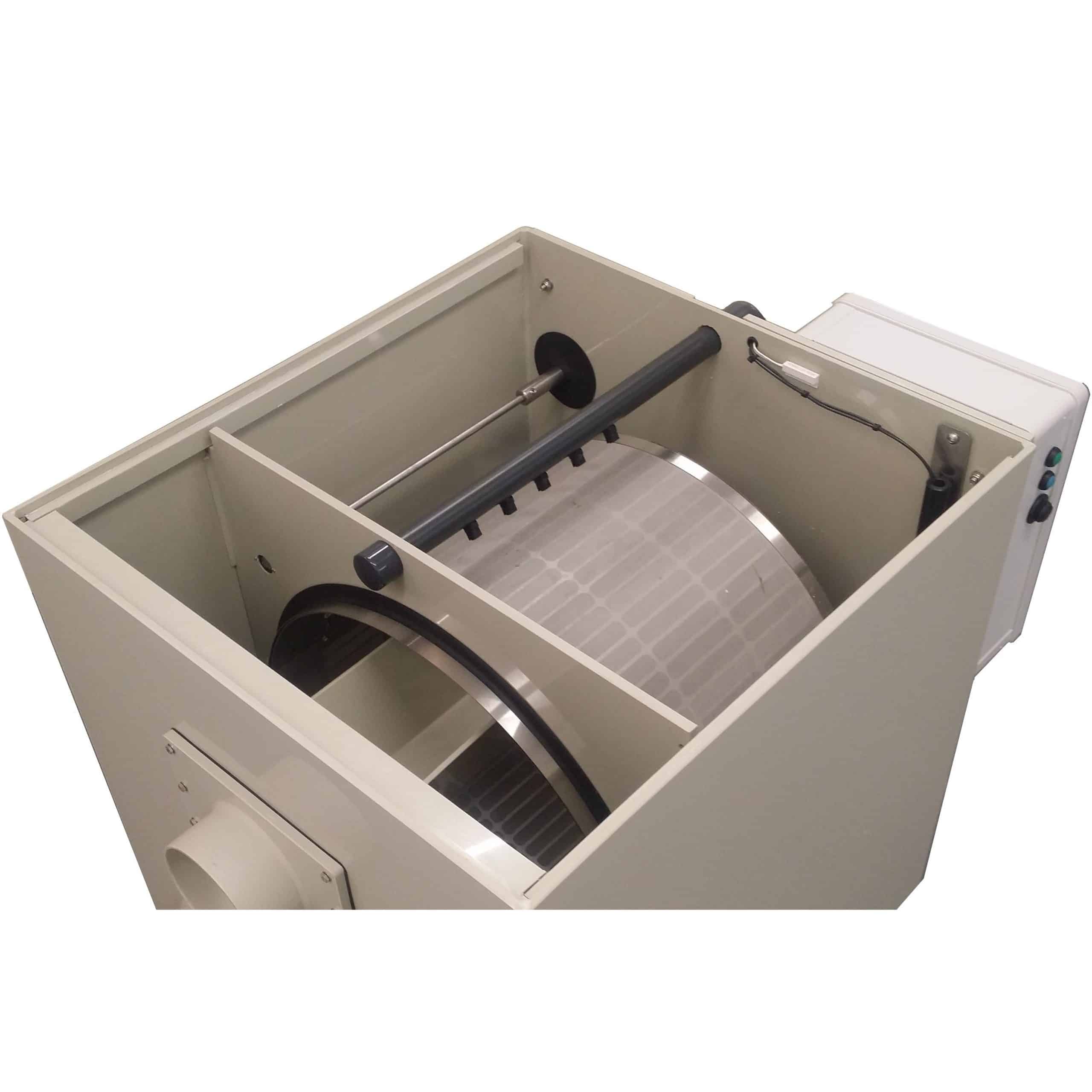

  • Burtons Drum BD-300 Cube with UV lid open

Burtons Drum BD-300 Cube with UV

£2,165.00 inc. VAT £1,948.50 inc. VAT

Burtons Drum BD-300 Cube with UV

As standard in the Burtons range, these drums come with a 60 micron screen, drive motor, wash pump and all the moving parts from the larger Burtons drum filters. These drums feature 2 x 110mm inlets and 2 x 110mm outlets. The Burtons Drum BD-300 Cube with UV is fitted with a cover switch, which cuts power to the drum motor and UV when the lid is lifted off. This drum is only available for gravity fed systems. Read more

Description:

  • As standard in the Burtons range, these drums come with a 60 micron screen, drive motor, wash pump and all the moving parts from the larger Burtons drum filters.
  • These drums feature 2 x 110mm inlets and 2 x 110mm outlets.
  • This drum filter is fitted with a cover switch, which cuts power to the drum motor and UV when the lid is lifted off.
  • This drum is only available for gravity fed systems.
  • Installation height above water level is 170 mm.
  • Suitable for flow rates up to 30,000lph.
  • Low energy consumption 1.3watts in standby mode and 150 watts when cleaning.
  • Low wattage wash pump included and pre fitted.
SKU: BA-BD-300-MK3-UV Category:

Description

Burtons Drum BD-300 Cube with UV

As standard in the Burtons range, these drums come with a 60 micron screen, drive motor, wash pump and all the moving parts from the larger Burtons drum filters. These drums feature 2 x 110mm inlets and 2 x 110mm outlets. The Burtons Drum BD-300 Cube with UV is fitted with a cover switch, which cuts power to the drum motor and UV when the lid is lifted off. This drum is only available for gravity fed systems.

Description:

  • As standard in the Burtons range, these drums come with a 60 micron screen, drive motor, wash pump and all the moving parts from the larger Burtons drum filters.
  • These drums feature 2 x 110mm inlets and 2 x 110mm outlets.
  • This drum filter is fitted with a cover switch, which cuts power to the drum motor and UV when the lid is lifted off.
  • This drum is only available for gravity fed systems.
  • Installation height above water level is 170 mm.
  • Suitable for flow rates up to 30,000lph.
  • Low energy consumption 1.3watts in standby mode and 150 watts when cleaning.
  • Low wattage wash pump included and pre fitted.
Technical Data:
SKU BA-BD-300-MK3-UV
Manufacturer Burtons
Product Dimensions (mm) 800mm L x 556mm W x 582.5mm H
Standard Guarantee period 2 Years
Flow Rate 30,000 LPH Gravity fed.
Number of Spray Tips 5
Inlets/Outlets 2 x 110mm Inlets, 2 x 110mm Outlets

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Manual





Burtons Drum BD-300 Cube with UV manual.pdf

Q & A

Ask a question
There are no questions yet

Additional information

Weight 40 kg
Dimensions 100 × 100 × 50 cm
