Draco Drum Magna Combi Unit

£2,995.00 inc. VAT

Draco Drum Magna Combi Unit

Dimensions – 740mm wide x 1045mm high x 1340mm long
160mm (Height above water level gravity mode)
Flow rate – 50,000 LPH (gravity) @58µm
40,000 LPH (Pump fed) @58µm
Theoretical Pond Capacity – 8000 to 10000 Gallons (36,000 to 45,000 litres)

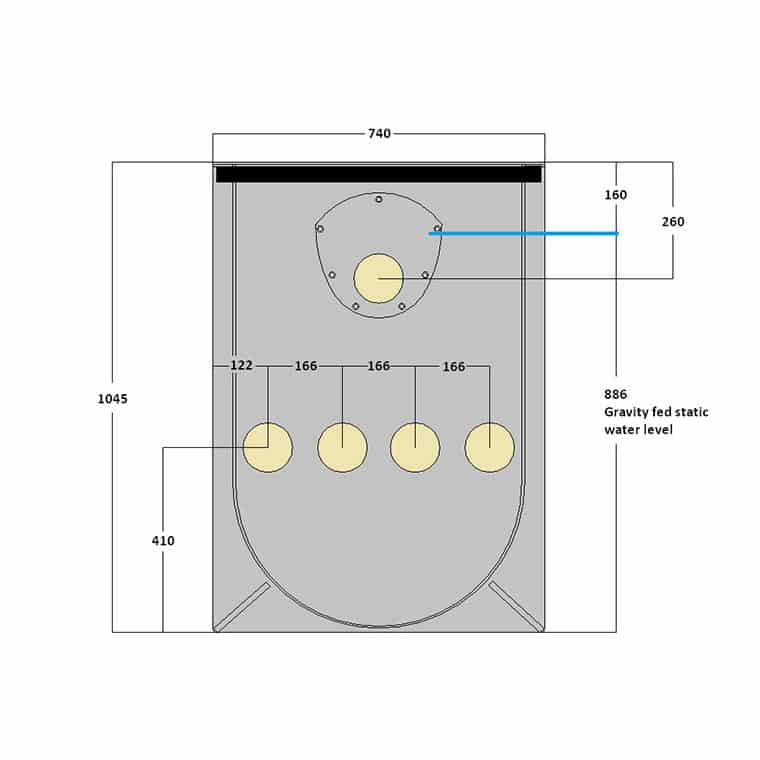

Inlets – 4 x 110mm

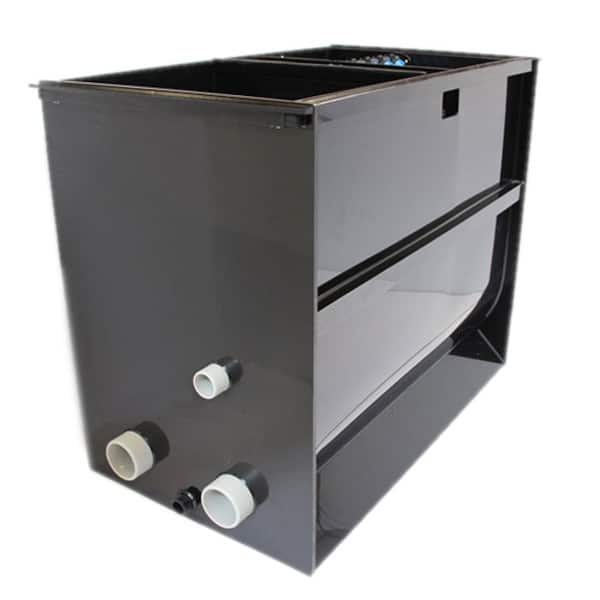

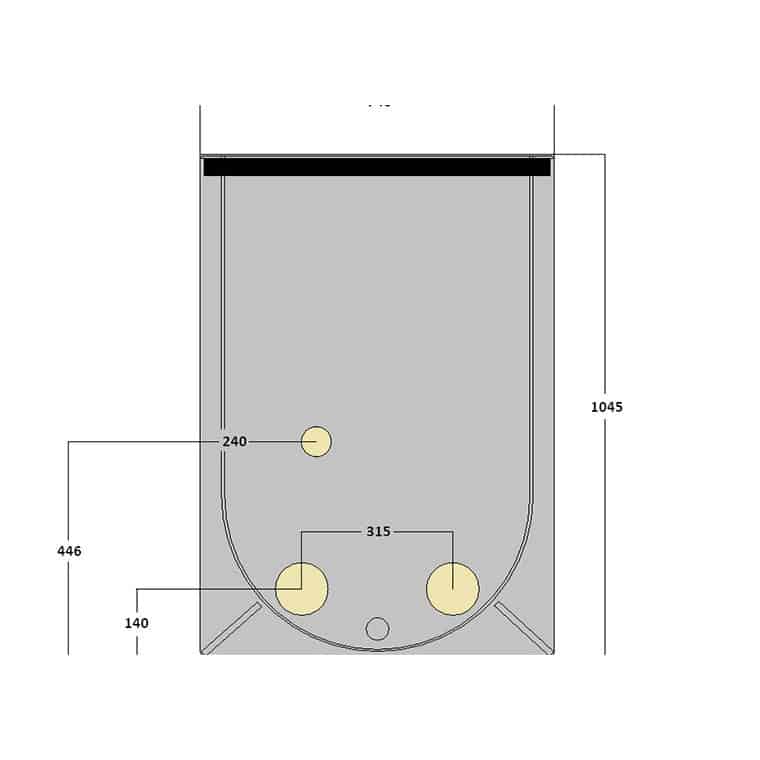

Outlets – 2 x 110mm plus 2” bio bypass connection
Bio capacity – Maximum 250 litres of media (Hel-x 13 recommended)
no media included
FEATURES

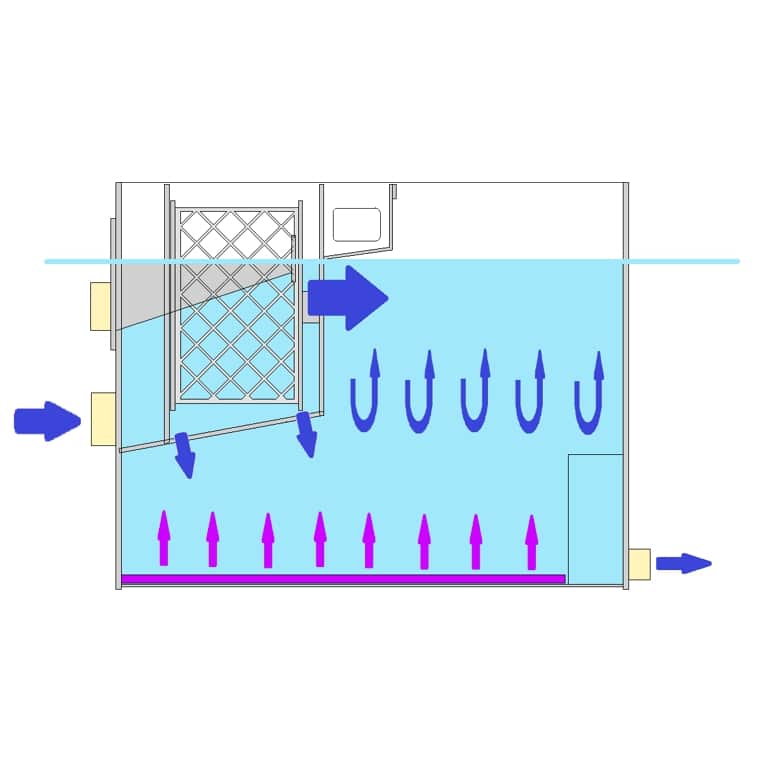

Full length (utilises space under drum), diverted and downward flow, curve base biological chamber
Sloped and slotted base to drum chamber, to eliminate bio media clogging and particle buildup in this area
Internal bio-bypass pipe for direct drum to shower connection. This is removable if not required
Large diameter and short length drum to maximise bio space and reduce water usage.
Extra deep waste tray with increased slope
Built in drum bypass plate
Hi-torque true brushless motor drive
All 12v dc operation at the drum
Plug and play design with single electrical connection
Modular component construction
Clear selection
SKU: N/A Category:

Description

Draco Drum Magna Combi Unit

Dimensions – 740mm wide x 1045mm high x 1340mm long
160mm (Height above water level gravity mode)
Flow rate – 50,000 LPH (gravity) @58µm
40,000 LPH (Pump fed) @58µm
Theoretical Pond Capacity – 8000 to 10000 Gallons (36,000 to 45,000 litres)
Inlets – 4 x 110mm
Outlets – 2 x 110mm plus 2” bio bypass connection
Bio capacity – Maximum 250 litres of media (Hel-x 13 recommended)
no media included
FEATURES
Full length (utilises space under drum), diverted and downward flow, curve base biological chamber
Sloped and slotted base to drum chamber, to eliminate bio media clogging and particle buildup in this area
Internal bio-bypass pipe for direct drum to shower connection. This is removable if not required
Large diameter and short length drum to maximise bio space and reduce water usage.
Extra deep waste tray with increased slope
Built in drum bypass plate
Hi-torque true brushless motor drive
All 12v dc operation at the drum
Plug and play design with single electrical connection
Modular component construction

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Manual





Medius & Magna User Guide & Installation Manual (v2.1)

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight 25 kg
Dimensions 120 × 70 × 70 cm
Model

Gravity Fed, Pump Fed
Screen Micron

58µm, 77µm
